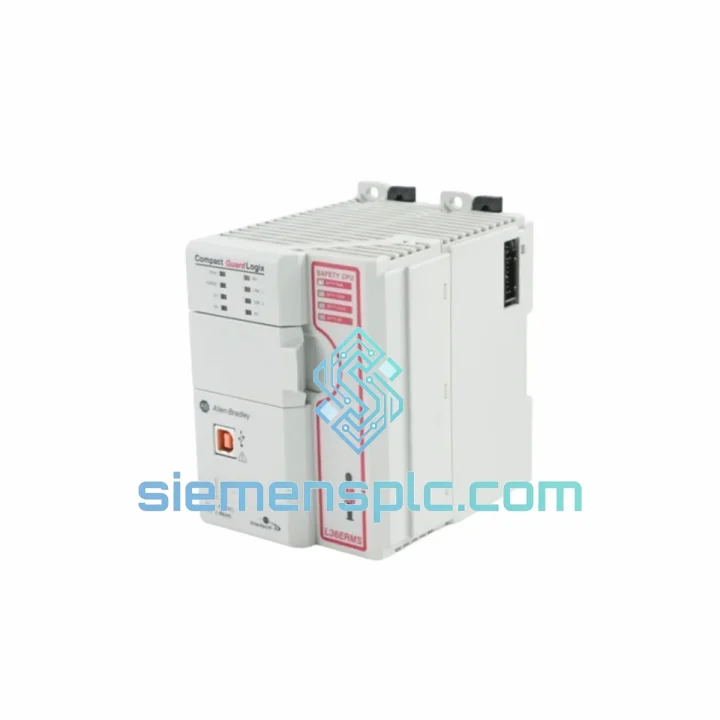

Allen-Bradley 1769-L36ERMS/A Safety PLC Processor – CompactLogix 5370 L3

Allen-Bradley 1769-L36ERMS/A: Integrated Safety and Motion Control at the CompactLogix L3 Tier

The Allen-Bradley 1769-L36ERMS/A is a CompactLogix 5370 L3-class safety PLC processor engineered by Rockwell Automation for applications that demand simultaneous standard control, integrated motion, and functional safety on a single EtherNet/IP backplane. Unlike architectures that bolt a separate safety relay or safety controller alongside a standard PLC, the 1769-L36ERMS/A executes both standard and safety tasks within one processor, sharing the same project file in Studio 5000 Logix Designer. This consolidation directly reduces panel footprint, eliminates inter-controller handshaking latency, and simplifies validation documentation under IEC 62061 and ISO 13849-1.

With 3 MB of user memory, support for up to 256 local I/O points across 16 expansion modules, and native 16-axis integrated motion over EtherNet/IP, this processor addresses mid-range machine builders who need deterministic cycle times below 1 ms for motion tasks while simultaneously maintaining SIL 2 / PLd safety integrity for guarding and emergency-stop circuits. The dual-port embedded Ethernet switch enables Device Level Ring (DLR) topology, providing sub-3 ms network recovery without a managed switch — a measurable reliability advantage in high-availability production lines.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 1769-L36ERMS/A implements a dual-channel safety execution architecture within a single physical processor. The safety task runs on a logically isolated partition of the processor’s execution engine, with a dedicated watchdog timer independent of the standard task scheduler. If the safety watchdog detects a task overrun or internal memory parity error, the processor forces all CIP Safety outputs to their safe state within the configured Safety Task Period — typically configured between 6 ms and 500 ms depending on the application’s required response time (SRT).

Backplane Communication: The 1769 CompactLogix backplane uses a proprietary serial bus operating at 200 Mbps between the processor and local I/O modules. The processor arbitrates backplane access using a deterministic token-passing protocol, ensuring that I/O scan time remains bounded regardless of the number of installed modules. This is architecturally distinct from a shared-bus design where I/O contention can introduce jitter into the control loop.

EtherNet/IP Dual-Port Switch: The embedded two-port switch is not a simple Y-splitter. It implements a full IEEE 802.1D MAC bridge with DLR supervisor capability. In a ring topology, the supervisor port monitors ring health via beacon frames at configurable intervals (default 400 µs). Upon detecting a link failure, the supervisor opens the ring at the fault point and reconfigures the logical path in under 3 ms — without any PLC program intervention. This hardware-level recovery is critical for motion applications where a network interruption exceeding one servo update period (typically 2–8 ms) would trigger a drive fault.

EMC Design: The module’s PCB layout employs a multi-layer ground plane strategy with isolated analog and digital ground domains. Signal traces crossing domain boundaries pass through optocoupler barriers rated at 2,500 V RMS isolation. The backplane connector uses a shielded, impedance-controlled design to suppress common-mode noise injection from adjacent high-current I/O modules. These measures allow the processor to maintain SIL 2 integrity in environments with variable-frequency drives generating conducted emissions up to 10 V/m.

Memory Architecture: The 3 MB user memory pool is managed by the Logix operating system as a unified heap, with the safety task’s data region protected by hardware memory management unit (MMU) boundaries. Standard tasks cannot write to safety-tagged data structures — any attempt raises a major fault, logged with timestamp and task context for post-incident analysis.

System Integration Benefits

• Single-network safety and standard I/O: CIP Safety over EtherNet/IP eliminates the need for a dedicated safety fieldbus (e.g., PROFIsafe, AS-Interface Safety), reducing cabling infrastructure and network switch count in the control panel.
• Unified project file: Safety and standard logic coexist in one Studio 5000 project, with safety routines protected by a safety task signature. Version control, backup, and restore operations cover the entire application in a single operation.
• Deterministic motion with safety interlocks: The 16-axis motion engine and the safety task share the same EtherNet/IP network. Safety-triggered axis stops (e.g., Safe Stop 1 per IEC 61800-5-2) are executed via CIP Safety drive parameters without requiring a separate hardwired STO circuit from the PLC.
• Device Level Ring redundancy: Sub-3 ms ring recovery protects motion and safety I/O from single-point network failures without managed switches, reducing BOM cost and eliminating switch configuration as a potential failure mode.
• Diagnostic transparency: The processor logs safety task faults, I/O connection timeouts, and motion axis faults to a non-volatile event log accessible via Studio 5000 or FactoryTalk Diagnostics. Each entry includes a 1 ms-resolution timestamp synchronized to the EtherNet/IP network time master.
• Scalable I/O expansion: Up to 16 local 1769 I/O modules can be added without modifying the processor configuration. Remote I/O over EtherNet/IP extends the system to distributed panels with no practical point-count ceiling within the 3 MB memory budget.
• Integrated motion reduces hardware: Replacing a dedicated motion controller (e.g., 1756-M02AE) with the processor’s native EtherNet/IP motion eliminates one rack slot, one Ethernet port, and the associated fiber or copper motion network infrastructure.
• Simplified safety validation: TÜV SÜD certification of the processor and CIP Safety stack means the safety function’s hardware component (HFT, SFF, PFH) is pre-validated. The integrator’s validation scope is limited to the application logic and the connected safety devices, reducing validation effort by a measurable margin compared to building a safety function from uncertified components.

Quality Assurance & Global Logistics

Every Allen-Bradley 1769-L36ERMS/A unit supplied by siemensplc.com is sourced through verified channels and subjected to a structured incoming inspection protocol before entering our Xiamen warehouse. Inspection includes visual examination of the module housing, connector pins, and label integrity; a power-on functional test confirming processor boot, Ethernet link establishment, and backplane communication; and firmware version verification against Rockwell Automation’s published release history.

Units are stored in an ESD-controlled environment at 18–25 °C and 40–60 % RH, consistent with IPC/JEDEC J-STD-033 requirements for moisture-sensitive electronic assemblies. Each unit ships in its original or equivalent anti-static packaging with desiccant and humidity indicator card.

Logistics from Xiamen, China: Our Xiamen location provides direct access to Xiamen Gaoqi International Airport (XMN) and Xiamen Port, enabling same-day handover to DHL Express, FedEx International Priority, and UPS Worldwide Express for air freight. Transit times to major industrial hubs: Germany (Frankfurt) 3–4 business days; USA (Chicago) 3–5 business days; Japan (Tokyo) 2–3 business days; Australia (Sydney) 3–4 business days. Sea freight consolidation is available for multi-unit orders where lead time permits. All shipments include commercial invoice, packing list, and certificate of origin. Export classification is confirmed prior to shipment for compliance with applicable export control regulations.

Warranty: 12 months from shipment date. Warranty covers functional failure under normal operating conditions as defined in Rockwell Automation’s product specifications. Warranty claims are processed within 5 business days of receipt of the returned unit. Replacement or repair is provided at no charge for confirmed warranty cases.
