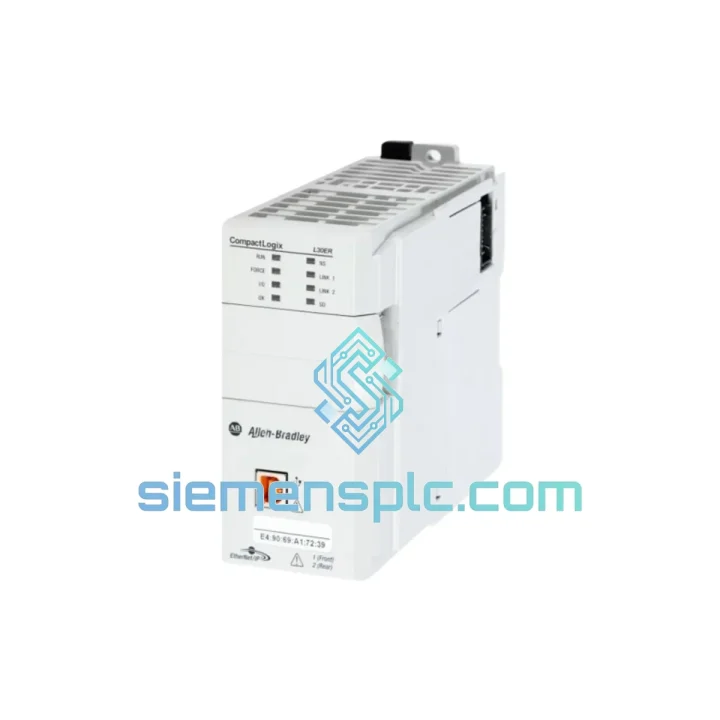

Allen-Bradley 1769-L37ERM PLC Controller – CompactLogix 5370

Allen-Bradley 1769-L37ERM CompactLogix 5370 L3 Controller — Dual-Port EtherNet/IP with 2 MB User Memory

The 1769-L37ERM occupies a well-defined position in the CompactLogix 5370 L3 tier: it is the mid-range processor that closes the gap between entry-level L30 controllers and the high-density L38/L43 variants. Its primary function within a control loop is deterministic scan-cycle execution across a mixed I/O and motion topology, coordinated entirely over a single EtherNet/IP backplane-extension network. Unlike earlier 1769 generations that relied on a dedicated 1756 ControlNet bridge for motion, the L37ERM integrates motion scheduling directly into the Logix execution engine, eliminating one network hop and the associated jitter that hop introduces.

In practical terms, the controller manages up to 16 coordinated motion axes via CIP Motion over EtherNet/IP, supports up to 30 local 1769 I/O modules on its serial backplane, and exposes two independent EtherNet/IP ports through an internal two-port switch — enabling Device Level Ring (DLR) topology without any external managed switch hardware. The result is a compact, panel-mount controller capable of handling mid-complexity machine automation, multi-axis servo coordination, and real-time diagnostics within a single chassis footprint.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Dual-Port EtherNet/IP and DLR Arbitration Logic

The two EtherNet/IP ports on the 1769-L37ERM are not simply two independent MACs sharing a common IP address. They are connected through an internal managed switch ASIC that implements the DLR (Device Level Ring) supervisor protocol defined in the ODVA EtherNet/IP specification. In a DLR ring, one node acts as the ring supervisor — the L37ERM is capable of assuming this role. The supervisor continuously transmits beacon frames at a configurable interval (default 400 µs) around the ring. If a break is detected (beacon loss on one port), the supervisor opens the ring at the fault point within one beacon interval, converting the topology back to a linear bus and restoring communication to all surviving nodes. This failover occurs without any PLC scan-cycle interruption visible at the application layer, because the switch ASIC handles the topology reconfiguration in hardware before the Logix task scheduler completes its next scan.

Backplane Serial Bus and I/O Module Addressing

The 1769 backplane uses a proprietary serial bus operating at a fixed clock rate. Each I/O module connected to the right of the controller is assigned a slot address sequentially. The controller’s I/O tree in Studio 5000 maps each slot to a tag structure in the controller’s data table. Scan time for the backplane I/O is deterministic and bounded: the controller polls all local I/O modules within each requested packet interval (RPI), which can be configured as low as 1 ms per module. The backplane bus does not share bandwidth with the EtherNet/IP network, so motion traffic and local I/O traffic are electrically isolated from each other — a critical design point for applications where servo jitter must be minimized.

EMC Design and Electrical Isolation

The 1769-L37ERM’s internal power rails are isolated from the backplane bus through DC-DC converter stages with transformer-based galvanic isolation. Digital I/O modules in the 1769 family use optocoupler-based isolation between field-side and logic-side circuits, rated at 1500 V AC isolation voltage. The controller’s EtherNet/IP ports use magnetically isolated RJ45 transformers (common-mode rejection >60 dB at 10 MHz), which suppress conducted EMI from cable shields and ground loops in industrial panel environments. The housing is a grounded metal chassis that provides a Faraday shield for the internal logic board, attenuating radiated emissions and improving immunity to external RF fields in accordance with IEC 61000-4-3 (radiated immunity, 10 V/m).

Firmware Execution Architecture

The Logix execution engine on the L37ERM runs a preemptive multitasking kernel. Tasks are prioritized: event tasks preempt periodic tasks, which preempt the continuous task. Each task has a configurable watchdog timer; if a task overruns its watchdog, the controller faults and transitions to a safe state (outputs de-energized per the configured fault action). This deterministic fault response is a hardware-enforced behavior, not a software timeout — the watchdog is implemented in the controller’s FPGA fabric, ensuring the response occurs even if the main processor is in a deadlock condition.

System Integration Benefits

• Topology Flexibility Without External Hardware: DLR ring supervision is handled internally, eliminating the cost and failure point of a managed Ethernet switch in ring topologies. A 16-node DLR ring can be constructed with only the L37ERM and 1769 I/O adapters.
• Unified Motion and Logic Namespace: CIP Motion axes are exposed as standard Logix tags. Motion instructions (MAM, MAS, MASD, MCS) execute within the same task context as process logic, removing the need for a separate motion controller or inter-controller messaging for axis coordination.
• Deterministic Scan Cycle: Periodic tasks execute at user-defined intervals with jitter typically below 100 µs, enabling closed-loop control algorithms (PID, cascade) to run at consistent sample rates without relying on OS scheduling accuracy.
• Integrated Diagnostics via CIP: The controller exposes diagnostic objects over EtherNet/IP — including task execution time, memory utilization, I/O connection status, and motion axis state — readable by any CIP-compliant SCADA or HMI without custom polling logic.
• Scalable I/O Expansion: Up to 30 local 1769 modules cover digital input, digital output, analog input, analog output, thermocouple, RTD, and high-speed counter functions. Module addition requires no rewiring of existing slots — the backplane auto-detects new modules at power-up.
• Studio 5000 Simulation: The Logix Designer simulation environment allows offline testing of ladder, FBD, SFC, and ST programs against a software emulation of the L37ERM before deployment, reducing commissioning time and eliminating the need for a physical controller during program development.
• EtherNet/IP Implicit and Explicit Messaging: The controller supports both Class 1 (implicit, cyclic I/O) and Class 3 (explicit, on-demand read/write) CIP connections simultaneously. This allows real-time I/O exchange with drives and remote I/O adapters while also supporting on-demand parameter reads from HMI panels and MES systems over the same physical network.
• Redundant Power Path Compatibility: When paired with a 1769-PA4 power supply and an external UPS, the system supports a controlled power-down sequence that preserves the controller’s non-volatile data store, ensuring recipe data and production counters survive unplanned power interruptions without data corruption.
• Firmware Update Without Hardware Replacement: Firmware upgrades are delivered via ControlFLASH over EtherNet/IP. The update process preserves the user program and data table, allowing field firmware updates during scheduled maintenance windows without re-commissioning the application.
• Compact Panel Footprint: The 1769 modular architecture allows a fully configured 16-axis motion system with 30 I/O modules to occupy a panel space of approximately 600 mm × 400 mm, compared to a 1756 ControlLogix system of equivalent capability requiring a larger chassis and separate motion module slots.

Quality Assurance & Global Logistics

Every 1769-L37ERM unit supplied by siemensplc.com is sourced through documented distribution channels with full chain-of-custody records. Physical authenticity inspection covers label integrity, holographic seals, date codes, and housing markings cross-referenced against Rockwell Automation’s published manufacturing specifications. Each unit undergoes a functional power-on test: firmware version is confirmed, EtherNet/IP port enumeration is verified, and the controller is cycled through a basic I/O scan to confirm backplane communication integrity. Units that do not pass all inspection stages are quarantined and not dispatched.

Shipments originate from Xiamen, China, with typical dispatch within 1–3 business days for in-stock units. International freight options include DHL Express, FedEx International Priority, and sea freight LCL/FCL for bulk procurement. All shipments include a commercial invoice, packing list, certificate of origin, and HS code classification (HS 8537.10) for customs clearance. Anti-static ESD packaging and foam-lined cartons are standard for all controller shipments. A 12-month functional warranty is provided from the date of shipment, covering manufacturing defects and verified functional failures under normal operating conditions.
