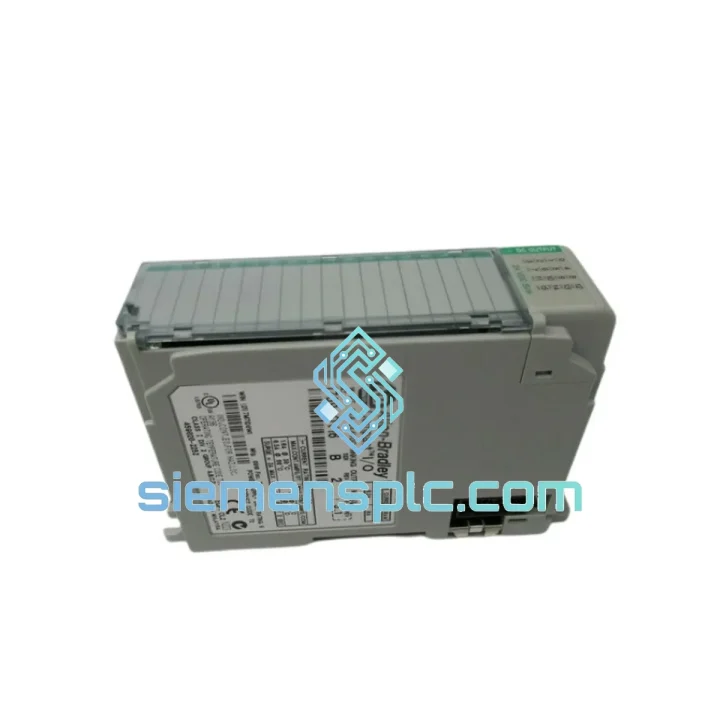

Allen-Bradley 1769-OV16 PLC Output Module

1769-OV16 Down? Every Minute Costs Money — We Ship Today

Your conveyor line is frozen. The HMI is throwing I/O Module Fault alarms. Maintenance is on the phone. You already know the 1769-OV16 is the culprit — a blown output channel, a backplane communication dropout, or a surge that took out the solid-state switching array. The question isn’t what failed. The question is: how fast can you get a replacement on the rail?

We stock the Allen-Bradley 1769-OV16 in Xiamen and ship globally via DHL Express and FedEx International Priority. Orders confirmed before 3:00 PM CST leave the same day. For most destinations in Southeast Asia, the Middle East, and Europe, that means your engineer has a verified, bench-tested module in hand within 48–72 hours — not weeks. One unplanned shift of downtime on a mid-size production line can cost $10,000–$50,000 USD. The module costs a fraction of that. The math is simple.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Most common failure modes on the 1769-OV16:

1. Single-channel output stuck OFF (no load actuation)
This is the most frequent field complaint. Root cause is almost always an inductive load — a solenoid valve or motor starter — without a flyback diode or MOV on the coil. The surge on de-energization exceeds the MOSFET’s avalanche rating and kills the channel. Before installing the replacement, add suppression to every inductive load on the module. Check the wiring diagram — if the original installer skipped suppressors, every channel is at risk.

2. Module fault LED solid red, controller shows “Module Not Responding”
This points to a backplane connector issue or a corrupted module configuration. Before condemning the module: (a) power down the entire 1769 bus segment, reseat the module firmly until the bus connector clicks, and power back up. (b) In Studio 5000 Logix Designer, go to the I/O tree, right-click the 1769-OV16 entry, and select Properties → Connection — verify the RPI (Requested Packet Interval) is not set below 2 ms, which can cause communication timeouts on loaded controllers. If the fault persists after reseating, the module’s backplane ASIC is likely damaged.

3. All outputs energized simultaneously on power-up (runaway outputs)
This is a controller configuration mismatch, not a module hardware failure. When you swap in a new 1769-OV16, Studio 5000 will prompt you to update the I/O configuration. If the replacement module is a different Series revision (e.g., Series A vs. Series B), the software may flag a mismatch. Accept the update and download the configuration. Do not inhibit the module — inhibiting leaves outputs in their last state, which can be dangerous during commissioning.

Replacement procedure (field-verified steps):

1. Place the controller in Program mode from the keyswitch or Studio 5000 before touching any hardware.
2. De-energize the 24V DC field power supply feeding the 1769-OV16 output commons. Do not rely on the controller alone to de-energize field devices.
3. Disconnect the removable terminal block (RTB) — the wiring stays intact on the RTB, which makes swap-out clean and fast.
4. Press the module release tab, slide the old module off the 1769 bus, and slide the replacement in until the bus connector seats fully.
5. Reattach the RTB. Restore 24V DC field power.
6. In Studio 5000, the controller will auto-detect the new module. Verify the I/O tree shows a green connection status before switching to Run mode.
7. Cycle each output channel manually from the controller’s I/O Force table to confirm all 16 channels actuate correctly before releasing to production.

Note on firmware: The 1769-OV16 is a non-intelligent I/O module — it carries no onboard firmware that requires matching to the controller revision. No firmware update is needed on the replacement module. The controller’s I/O driver handles all communication protocol versioning automatically.

Reliability in Harsh Conditions

The 1769-OV16 was not designed for a climate-controlled server room. It was built for the floor — and the floor is unforgiving.

Vibration: The module’s solid-state output architecture eliminates the single biggest vibration failure point in relay-based I/O: contact bounce and mechanical fatigue. There are no moving parts in the switching path. The PCB assembly is conformally coated on production-grade units, providing resistance to particulate contamination from grinding, welding, and machining operations common in metalworking and automotive environments.

Thermal cycling: Industrial control panels routinely see 40°C+ ambient temperatures when cabinet cooling fails or when the panel is mounted near furnaces, ovens, or heat-generating drives. The 1769-OV16’s 0–60°C operating range, combined with its low self-heating profile (75 mA backplane draw at 5V), means it runs cool even in dense I/O configurations. The solid-state outputs generate negligible heat compared to relay coils, reducing thermal stress on adjacent modules.

Humidity and condensation: In food processing, pharmaceutical, and coastal installations, humidity is a constant threat. The module’s IP20 rating means it relies on the enclosure for environmental protection — ensure your cabinet maintains NEMA 12 or IP54 minimum. For particularly aggressive environments, request conformal-coated units when placing your order.

Electrical noise: The 1769 bus architecture provides inherent isolation between the backplane logic side and the field-side output circuits. The 24V DC field supply is separate from the 5V backplane supply, which means a field-side surge event does not directly propagate to the controller backplane. Per-channel electronic short-circuit protection further limits fault propagation — a shorted field device trips only its own channel, not the entire module.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province, China — one of China’s primary export hubs with direct access to Xiamen Gaoqi International Airport and Xiamen Port. This geography is not accidental. It gives us same-day handoff to DHL Express, FedEx International Priority, and UPS Worldwide Express for shipments to virtually any industrial destination on the planet.

Typical transit times from Xiamen:

• Southeast Asia (Singapore, Thailand, Vietnam, Malaysia): 1–2 business days via DHL Express
• Middle East (UAE, Saudi Arabia, Qatar): 2–3 business days via FedEx International Priority
• Europe (Germany, Netherlands, UK, Poland): 3–4 business days via DHL Express
• North America (USA, Canada, Mexico): 3–5 business days via FedEx International Priority
• Australia / New Zealand: 3–4 business days via DHL Express
• South America (Brazil, Chile, Colombia): 4–6 business days via DHL Express

Every shipment includes: commercial invoice, packing list, and certificate of origin. For customers requiring ATA Carnet, EAR99 classification letters, or specific customs documentation for their country’s import process, contact us before placing the order — we handle this routinely.

Modules are packed in anti-static bags, placed in foam-lined rigid boxes, and sealed with moisture-barrier outer packaging. The packaging survives the handling abuse of international express freight. We have shipped to 50+ countries without a single transit-damage claim on properly packed modules.

For critical downtime situations where every hour matters: call or WhatsApp us directly. We can arrange airport-to-airport freight or courier-on-demand services for shipments that cannot wait for the next scheduled DHL pickup.
