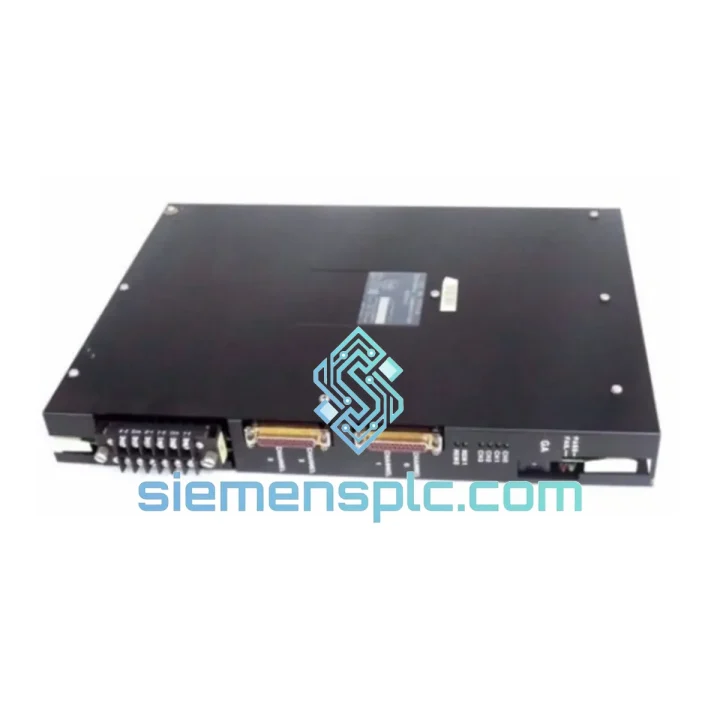

Allen-Bradley 1775-GA Communication Module – PLC-5 Series

Allen-Bradley 1775-GA: DH+ Network Interface Module for PLC-5 Rack Architectures

In distributed control architectures built around the Allen-Bradley PLC-5 family, the communication layer is the structural backbone that determines whether supervisory systems receive deterministic, low-latency data or suffer polling gaps that degrade process visibility. The 1775-GA is a dedicated Data Highway Plus (DH+) communication module engineered to occupy a single slot in the 1771-series I/O chassis and provide a fully managed DH+ network node — independent of the CPU’s scan cycle overhead. Its role in the control loop is not peripheral: it handles all token-passing arbitration, frame assembly, and network error recovery autonomously, offloading those tasks entirely from the PLC-5 processor so that ladder logic execution remains unaffected by network traffic volume or topology size.

DH+ is a token-passing, peer-to-peer local area network operating over shielded twisted-pair cable at selectable baud rates of 57.6 Kbps or 115.2 Kbps. Unlike CSMA/CD-based networks, DH+ guarantees bounded worst-case latency because only the node holding the token may transmit — a property that makes it suitable for time-sensitive SCADA polling and inter-PLC messaging in process control environments. The 1775-GA implements the full DH+ protocol stack in firmware, supports up to 64 nodes per segment (addresses 0–63), and sustains cable runs of up to 3,048 m (10,000 ft) at 57.6 Kbps using Belden 9463 or equivalent shielded cable — a reach that covers large plant footprints in oil and gas, utilities, and automotive manufacturing without requiring repeaters on most single-building installations.

For facilities operating brownfield PLC-5 infrastructure that cannot justify a full migration to ControlLogix or CompactLogix within the current capital cycle, the 1775-GA is the correct engineering answer: it restores or sustains DH+ connectivity at specification without chassis re-wiring, without program modification, and without changes to the existing RSLinx or FactoryTalk communication configuration. It is a direct slot-in replacement that preserves the entire upstream software and SCADA investment.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 1775-GA’s internal architecture separates communication processing from the host CPU through a dedicated onboard microcontroller that manages the complete DH+ protocol stack — token acquisition, frame transmission, acknowledgment handling, and error recovery — without consuming PLC-5 scan time. This co-processor model means that a 64-node DH+ network operating at 115.2 Kbps generates zero measurable impact on the PLC-5’s ladder logic execution rate, a critical property in process control applications where scan-time jitter directly affects PID loop stability and sequence timing.

The DH+ physical layer uses differential signaling on shielded twisted-pair cable. Differential transmission rejects common-mode noise by design: interference induced equally on both conductors — such as the broadband EMI generated by variable-frequency drives, welding inverters, and high-current motor starters — is cancelled at the receiver’s differential input stage. This mechanism allows the 1775-GA to maintain error-free communication in environments where single-ended RS-232 or unshielded Ethernet would experience frequent frame corruption. The cable shield, when grounded at a single point per segment, further attenuates capacitively coupled high-frequency interference from adjacent power wiring.

Token-passing arbitration provides deterministic worst-case latency that CSMA/CD networks cannot guarantee. In a 64-node DH+ segment at 57.6 Kbps, the maximum token rotation time is bounded and calculable — a property that allows control system engineers to specify and verify SCADA polling cycle times against ISA-99 and IEC 62443 network performance requirements. The 1775-GA implements the full token-passing state machine in firmware, including token loss detection and automatic token regeneration, which prevents network lockup following a node failure or cable fault without requiring operator intervention.

The module’s PCB incorporates conformal coating across all active component areas, providing resistance to moisture condensation, airborne chemical contaminants (chlorine, H₂S, ammonia), and conductive particulate — conditions present in water treatment headworks, chemical dosing rooms, and food processing washdown areas. Conformal coating is verified visually during incoming inspection at our facility before any unit is shipped.

System Integration Benefits

1. Zero scan-time impact on PLC-5 CPU: The onboard co-processor handles all DH+ protocol tasks autonomously. The host PLC-5 processor exchanges data with the 1775-GA through a shared dual-port RAM interface, not through interrupt-driven polling, so ladder logic execution rate is unaffected regardless of network traffic volume.

2. Deterministic SCADA polling latency: DH+ token-passing guarantees bounded worst-case response time for SCADA host polling. Engineers can calculate and verify maximum polling cycle times for any node count and baud rate combination — a requirement for process historian configuration and alarm management system design.

3. Peer-to-peer messaging without SCADA host involvement: The 1775-GA supports MSG instruction-based peer-to-peer data exchange between PLC-5 nodes. Inter-PLC interlocking and data transfer occur at the DH+ layer without routing through the SCADA host, reducing host load and eliminating the SCADA server as a single point of failure for PLC-to-PLC coordination.

4. RSLinx and FactoryTalk compatibility without reconfiguration: The 1775-GA presents a standard DH+ node address to RSLinx Classic and RSLinx Enterprise. Existing OPC server configurations, FactoryTalk View tag databases, and historian data source definitions require no modification when replacing a failed 1775-GA with a new unit at the same node address.

5. Long-distance field wiring without repeaters: The 3,048 m cable reach at 57.6 Kbps covers the majority of single-plant DH+ trunk installations in oil and gas, utilities, and large manufacturing facilities. Eliminating repeaters reduces network component count, simplifies fault isolation, and removes potential single points of failure from the communication path.

6. Diagnostic transparency via RSLinx node status: RSLinx Classic provides per-node communication statistics — frame counts, error rates, token rotation times — for all 1775-GA nodes on the DH+ segment. This data supports proactive maintenance by identifying nodes with rising error rates before communication failures occur, enabling planned replacement during scheduled maintenance windows rather than emergency response.

7. Brownfield integration without program modification: The 1775-GA installs into the existing 1771 chassis slot and assumes the configured node address without requiring changes to the PLC-5 ladder program, I/O configuration, or RSLinx driver settings. This property is critical in facilities where PLC program modification requires formal change management, validation, and regulatory review cycles.

8. Support for mixed-generation network topologies: DH+ segments with 1775-GA nodes can coexist with other DH+ devices — including 1785-KA5 communication adapters, 1770-KF2 RS-232/DH+ interfaces, and PanelView terminals — on the same network segment. The 1775-GA participates in the token ring alongside all standard DH+ node types without configuration changes or firmware updates.

Quality Assurance & Global Logistics

Every Allen-Bradley 1775-GA unit shipped from our Xiamen, China facility undergoes a structured four-stage inspection protocol before packaging. Stage one covers board-level visual examination: component condition, label authenticity against Rockwell Automation catalog records, and screening for remarking or counterfeit indicators. Stage two is a functional power-on test: the module is installed in a reference 1771 chassis, powered, and DH+ node communication is verified at both 57.6 Kbps and 115.2 Kbps using RSLinx Classic with a confirmed peer node. Stage three verifies firmware revision and logs the result; units with corrupted or non-standard firmware are rejected. Stage four covers final documentation, ESD packaging in anti-static bag with foam insert, and attachment of the lot traceability record to the shipment.

Units are sourced exclusively from authorized Rockwell Automation distributors, certified surplus dealers with documented chain-of-custody records, and decommissioned plant inventory with full traceability. Test reports, physical condition photographs, firmware version logs, and certificates of conformance are available upon request for any shipped unit.

Shipments from Xiamen reach major industrial hubs on the following typical transit schedules: North America (US/Canada) 3–5 business days via DHL Express or FedEx International Priority; Europe (Germany, Netherlands, UK) 4–6 business days; Southeast Asia (Singapore, Thailand, Vietnam) 2–3 business days; Middle East (UAE, Saudi Arabia) 4–5 business days. All international shipments include full export documentation: commercial invoice, packing list, and HS code 8537.10 classification for customs clearance. Expedited sourcing and same-day dispatch are available for urgent plant shutdown and maintenance window requirements.
