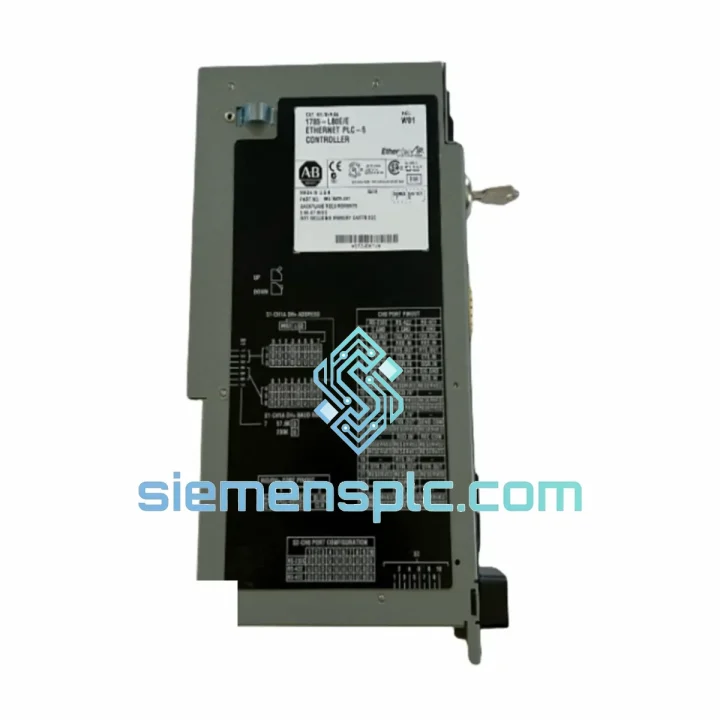

Allen-Bradley 1785-L80E/E PLC Controller – PLC-5 Series

Allen-Bradley 1785-L80E/E PLC-5 Ethernet Processor: Backplane Architecture and Control Loop Role

The 1785-L80E/E is a high-capacity enhanced Ethernet processor within Rockwell Automation’s PLC-5 family, designed for deterministic control of large-scale discrete and process automation systems. It occupies the leftmost slot of a 1771-series chassis and communicates with I/O modules via the 1771 parallel backplane at a fixed 1 MHz data transfer rate. The processor arbitrates backplane access using a token-passing protocol, ensuring each I/O module receives a guaranteed scan window within each program cycle — a critical requirement for time-sensitive control loops in continuous manufacturing environments.

The /E firmware revision introduces enhanced diagnostics and expanded EtherNet/IP messaging capabilities over the base 1785-L80E, including support for Class 1 implicit I/O connections and Class 3 explicit messaging simultaneously. This dual-class communication architecture allows the controller to maintain real-time I/O updates with remote adapter racks while concurrently handling peer-to-peer MSG instructions to upstream SCADA or MES layers — without sacrificing scan time determinism.

With 100K words (200 KB) of user program memory and support for up to 3,072 discrete I/O points across local and remote 1771 chassis, the 1785-L80E/E is positioned for plant-wide control architectures where a single processor must coordinate multiple production zones. Its program scan time scales linearly with instruction count, typically achieving sub-10 ms cycle times for programs under 20K rungs — a benchmark relevant to high-speed assembly and packaging lines.

📦 Real-time Stock & RFQ: [email protected]  |  WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 1785-L80E/E processor integrates a dedicated Ethernet ASIC separate from the main CPU core, which handles TCP/IP stack processing and CIP packet framing independently. This hardware-level separation prevents Ethernet communication overhead from consuming CPU scan cycles — a design constraint that affects many older embedded controllers where the communication stack competes directly with the ladder logic executor for processor time. On the 1785-L80E/E, the Ethernet ASIC buffers incoming and outgoing CIP messages in a dual-port RAM region accessible to both the communication subsystem and the main processor, with arbitration managed by a dedicated handshake register. This architecture guarantees that a burst of incoming MSG requests from an upstream SCADA system does not extend the program scan time beyond its configured watchdog threshold.

From an EMC standpoint, the 1785-L80E/E chassis slot design incorporates a grounded backplane shield rail that provides a low-impedance return path for high-frequency noise coupled from adjacent I/O modules. The processor card itself uses a multi-layer PCB with dedicated ground planes separating the analog reference circuitry (used for internal voltage monitoring) from the digital logic layers. The RJ-45 Ethernet port includes integrated magnetics with common-mode choke filtering rated to suppress conducted interference up to 30 MHz — consistent with the EN 55011 Class A industrial emission standard.

The DH+ port implements a token-passing LAN protocol at 57.6 Kbps, 115.2 Kbps, or 230.4 Kbps (selectable via DIP switch). The token rotation time across a 32-node DH+ network at 230.4 Kbps is approximately 2.8 ms under full load — a deterministic upper bound that makes DH+ suitable for peer-to-peer data exchange between PLC-5 processors in distributed control architectures where Ethernet infrastructure is not available at the field level.

Memory integrity is maintained through a battery-backed SRAM module (1785-BA battery) that preserves the user program, data table values, and I/O configuration across power cycles. The processor performs a CRC checksum on the program image at each power-up and flags a major fault if the checksum fails — preventing execution of a corrupted program after an uncontrolled power loss event.

System Integration Benefits

• Deterministic scan cycle: The 1771 backplane token-passing protocol enforces a fixed I/O update sequence, eliminating jitter in control loop feedback — critical for PID loops managing flow, pressure, or temperature in process plants.
• Dual-network bridging: The processor simultaneously maintains EtherNet/IP connections to plant-level SCADA and DH+ connections to field-level HMIs or peer PLCs, enabling a two-tier network architecture without an external gateway device.
• Remote I/O scanner: The built-in Remote I/O (RIO) scanner port supports up to 32 remote adapter racks at distances up to 3,048 m (10,000 ft) at 57.6 Kbps, extending the I/O footprint without additional communication modules.
• Transparent diagnostics: The processor exposes a structured fault table (S:11–S:17 status file words) that records the fault code, fault address, and timestamp for every major and minor fault — enabling maintenance teams to reconstruct fault sequences without a dedicated data logger.
• MSG instruction flexibility: Supports typed read/write, PLC-5 typed read/write, and CIP generic MSG instructions, allowing data exchange with ControlLogix, MicroLogix, and third-party EtherNet/IP devices within the same MSG framework.
• Program file partitioning: Up to 32 program files (LAD 2–LAD 999) can be organized independently, enabling modular code structures where each production zone or machine unit occupies a dedicated ladder file — simplifying version control and fault isolation during maintenance.
• Selectable watchdog timer: The program scan watchdog is configurable from 1 ms to 2,550 ms in 1 ms increments, allowing engineers to set a tight fault threshold proportional to the actual scan time rather than using a fixed default — reducing the detection latency for runaway scan conditions.
• Battery-backed data retention: All data table files (integer, float, timer, counter, control, string) are retained in battery-backed SRAM, preserving production counters, recipe parameters, and accumulated totals through planned and unplanned power interruptions without requiring a UPS.
• Legacy I/O compatibility: Full backward compatibility with the entire 1771 I/O module catalog — including analog, thermocouple, RTD, high-speed counter, and motion modules — allows the 1785-L80E/E to replace an older PLC-5 processor in an existing chassis without rewiring or replacing field-side hardware.

Quality Assurance & Global Logistics

Every 1785-L80E/E unit supplied by siemensplc.com is sourced through verified industrial distribution channels and subjected to a multi-stage inspection protocol before dispatch. Physical inspection covers label integrity, firmware revision marking, connector pin condition, and housing for signs of rework or re-marking. Functional verification confirms backplane communication response and Ethernet port link negotiation. Units are shipped in anti-static, moisture-barrier packaging with desiccant inserts rated for 72-hour humidity exposure during transit.

Logistics operations are based in Xiamen, China — a major export hub with direct access to DHL Express, FedEx International Priority, and UPS Worldwide services. In-stock units are dispatched within 1–3 business days of order confirmation. For bulk procurement (5+ units), sea freight consolidation via Xiamen Port is available with full commercial invoice, packing list, certificate of origin, and HS code documentation (HS: 8537.10) for customs clearance. All shipments comply with applicable export control regulations. A 12-month warranty covers verified manufacturing defects from the date of shipment.
