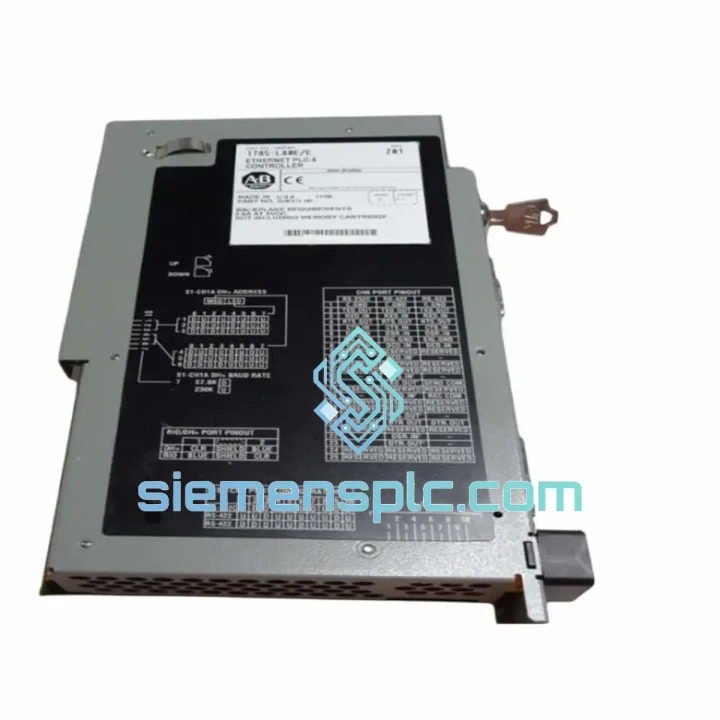

Allen-Bradley 1785-L80E PLC Controller

1785-L80E Down? Every Minute Costs Money — We Ship Same Day from Xiamen

Your line stopped. The 1785-L80E is the culprit. You’ve already pulled the chassis, confirmed the fault, and now you need a replacement unit — not next week, not in three days. Today. We stock the Allen-Bradley 1785-L80E and ship globally via DHL Express and FedEx International Priority. Most orders clear Xiamen customs within 24 hours of payment confirmation. That’s the difference between a 6-hour outage and a 6-day nightmare.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field calls on PLC-5 systems teach you one thing fast: the 1785-L80E fails in predictable ways. Here’s what to check before you pull the trigger on a replacement — and what to do the moment the new unit arrives.

Common Fault Indicators:

• FAULT LED solid red, no comms on DH+ — Processor halted due to a major fault. Connect RSLogix 5, go to Controller Diagnostics → Major Faults. Fault code 0x0071 (memory checksum error) or 0x0004 (watchdog timeout) almost always means the CPU board is gone. No amount of clearing will fix it.
• Ethernet port link light dead, DH+ still active — The Ethernet ASIC on the L80E is a known failure point after 10+ years of 24/7 operation, especially in high-humidity environments. If ping to the module IP fails but DH+ messaging is intact, the Ethernet daughterboard has failed. Replacement is the only fix — there is no field repair for this component.
• Intermittent I/O faults, random scan-time spikes — Check the 1771 backplane connector on the processor module. Oxidized gold fingers cause intermittent backplane communication errors. Clean with IPA and a lint-free swab before condemning the processor. If faults persist after cleaning, the backplane driver circuitry is degraded.
• Battery fault (BAT LED amber) — The 1785-BA lithium battery backs up user memory and the real-time clock. A dead battery does not cause a processor fault by itself, but after a power cycle, your program is gone. Replace the battery before swapping the processor if the program is not backed up to RSLogix 5 offline file.
• Processor boots but program won’t download — Confirm RSLogix 5 version matches the firmware revision on the processor. Firmware 7.x processors reject downloads from RSLogix 5 v5.x. Check Controller Properties → General → Revision in RSLogix 5.

Replacement Procedure — Field Checklist:

• Before pulling the old unit: go online in RSLogix 5, upload the current program to a .RSS file. Do not skip this. Even if you have a backup, verify it matches what’s running.
• Note the DH+ node address (set via rotary switches on the front of the module — SW1 and SW2). The replacement unit ships with switches at 00. Set them to match your network before inserting.
• Note the Ethernet IP address, subnet mask, and gateway configured in the BOOTP/DHCP server or stored in the module’s non-volatile memory. You’ll need to reconfigure this on the replacement unit using RSLinx Classic or a BOOTP-DHCP server tool.
• Power down the 1771 chassis before removing the processor. The 1785-L80E is NOT hot-swappable. Pulling it under power risks backplane damage.
• Seat the replacement unit firmly — the 1771 backplane connector requires deliberate pressure. A half-seated processor will power on but generate random I/O faults.
• After power-up, confirm the OK LED goes green within 10 seconds. If it stays red, check the chassis power supply output voltage (should be +5 VDC ±5% at the backplane).
• Download the .RSS program file. Verify I/O configuration matches the physical rack layout before going to RUN mode.
• Confirm Ethernet/IP messaging to SCADA/HMI is re-established. Check MSG instruction status bits in the ladder program — bit 15 (EN), bit 13 (DN), bit 12 (ER) tell you exactly what’s happening.

Reliability in Harsh Conditions

The 1785-L80E was engineered for the factory floor, not the server room. Rockwell Automation designed the PLC-5 Enhanced series to operate continuously in environments that would kill consumer-grade electronics inside a week.

The processor operates across a 0 °C to +60 °C ambient range without derating, and the conformal-coated PCB resists moisture ingress in humidity up to 95% non-condensing — relevant for coastal plants, paper mills, and food processing facilities where steam and condensation are daily realities. The 1771 chassis mounting system provides mechanical isolation from panel vibration, and the gold-plated backplane connector maintains reliable contact through thousands of thermal expansion cycles.

In automotive stamping plants, we’ve seen 1785-L80E units run for 18 years without a processor fault — the failures that do occur are almost always battery-related or Ethernet-port-related, not core CPU failures. In oil and gas applications, the sealed housing and wide storage temperature range (-40 °C to +85 °C) make it suitable for outdoor enclosures in northern climates. The unit draws power exclusively from the 1771 chassis backplane, eliminating external power supply failure as a variable.

Units shipped from our Xiamen warehouse are inspected for physical damage, connector integrity, and label legibility. Each unit is packed in anti-static foam with a humidity indicator card inside the sealed poly bag. If the card shows exposure, we don’t ship it.

Global Express Logistics

Downtime doesn’t respect time zones. Our logistics process is built around one objective: get the part in your hands before your next shift starts.

• Order cutoff: Orders confirmed with payment before 14:00 CST (UTC+8) ship same business day from Xiamen.
• Carriers: DHL Express Worldwide and FedEx International Priority — both offer door-to-door tracking and customs clearance included in the freight charge.
• Transit times (typical): Southeast Asia 1–2 days | Europe 3–4 days | North America 3–5 days | Middle East / Africa 4–6 days.
• Export documentation: Commercial invoice, packing list, and Certificate of Origin (COO) provided with every international shipment. HS Code 8537.10 declared for customs clearance.
• EXW Xiamen available: If your freight forwarder handles customs, we can prepare EXW terms. Contact us before placing the order.
• Tracking: AWB number sent via email within 2 hours of dispatch. Real-time tracking link included.

We’ve shipped to automotive plants in Germany, petrochemical facilities in Saudi Arabia, water treatment stations in Australia, and food processing lines in Mexico. The process is the same every time: fast, documented, and traceable.
