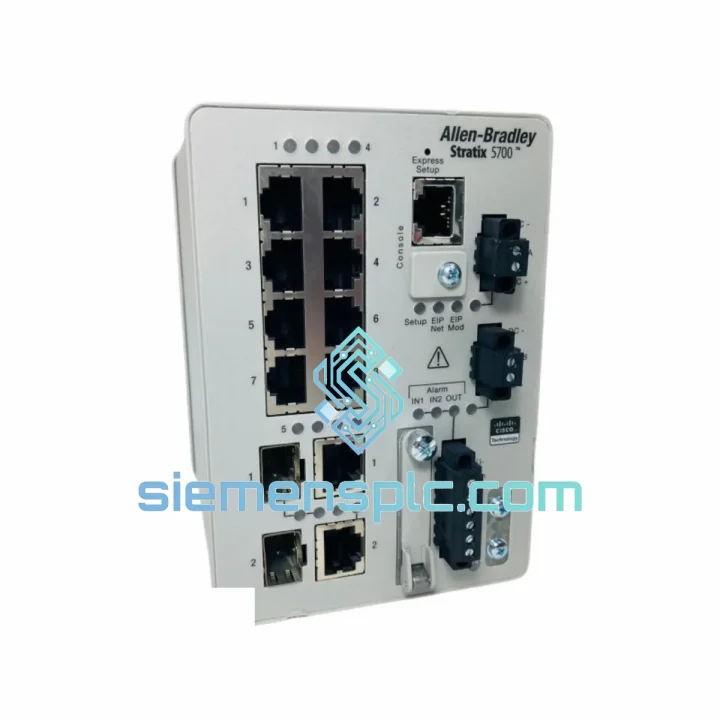

Allen-Bradley 1783-BMS10CGL Industrial Managed Switch

1783-BMS10CGL Down? Every Minute of Downtime Costs You — We Ship Same Day from Xiamen

Your line stopped. The STRATIX 5700 ring is broken. The HMI is dark and the shift supervisor is already on the phone. You’ve isolated the fault to the Allen-Bradley 1783-BMS10CGL — a 10-port managed Ethernet switch that sits at the backbone of your EtherNet/IP control network. You don’t have a spare. Your local distributor quotes 6–8 weeks. That’s not an option.

We stock the 1783-BMS10CGL in Xiamen and ship globally via DHL Express and FedEx International Priority. Orders confirmed before 15:00 CST go out the same business day. Most destinations in Southeast Asia receive within 48 hours. Europe and North America within 3–5 business days. This is not a promise — it’s our standard operating procedure.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After 10 years of field work, these are the failure modes I see most often with the 1783-BMS10CGL — and the traps engineers fall into during hot-swap replacement.

Top Failure Signatures:

• REP ring broken, all nodes reporting topology change: 90% of the time this is a failed switch, not a cable. Ping the switch management IP first. No response + amber port LEDs = hardware fault confirmed.
• Port 1 or Port 2 SFP link down after power cycle: SFP module seated incorrectly or SFP type mismatch (multimode vs. single-mode). Pull and reseat. Verify 1783-SFP1GSX (MM) vs. 1783-SFP1GLX (SM) against your fiber run distance.
• Switch powers on but no management access: Factory default IP is 192.168.1.1. If the previous unit had a custom IP, you’ll need to connect via console cable (RJ45 to DB9, 9600 baud, 8N1) and recover the config from backup or reconfigure from scratch.
• EtherNet/IP I/O drops intermittently: Check IGMP snooping configuration. If multicast traffic is flooding all ports, IGMP querier may be missing from the ring. Enable it on the switch closest to the PLC.
• Dual power input fault LED active: Not a switch failure — check your 24 VDC PSU output voltage. Below 18 VDC triggers the fault. Measure at the terminal block, not at the PSU output.

Hot-Swap Replacement Checklist — Do This Before You Power On:

• Export the running config from the failed unit if it still boots: copy running-config tftp via CLI. Even a partial config saves hours.
• Note the REP segment ID and port roles (edge/no-edge) from your network documentation. The replacement unit defaults to no REP configuration — you must re-enter segment ID and designate edge ports manually.
• Verify firmware version on the replacement matches your existing ring nodes. Mixed firmware versions in a REP ring can cause instability. Check via show version and update via FactoryTalk Network Manager if needed.
• Set the management IP before connecting to the live ring. Connecting an unconfigured switch with default IP 192.168.1.1 into a production network causes IP conflicts.
• If using FactoryTalk Network Manager for auto-discovery, allow 2–3 minutes after ring restoration for topology to stabilize before declaring the repair complete.
• Conformal coating (CGL) does not affect electrical connections at terminal blocks or SFP cages — no special handling required beyond standard ESD precautions.

Reliability in Harsh Conditions

The CGL suffix on this part number is not a marketing label — it’s a factory-applied conformal coating process that encapsulates the PCB in a protective polymer layer. In the field, this matters in three specific scenarios that kill uncoated switches within 12–18 months:

High-humidity environments — coastal facilities, food processing washdown zones, and tropical climates drive condensation into unprotected PCBs. The conformal coating on the 1783-BMS10CGL creates a moisture barrier that prevents dendritic growth across solder joints, which is the primary failure mechanism in humid industrial environments.

Chemical exposure — automotive paint shops, chemical processing plants, and battery manufacturing facilities expose electronics to airborne solvents, acids, and flux residues. Standard FR4 PCBs absorb these contaminants over time. The CGL coating resists penetration from common industrial chemicals including isopropyl alcohol, cutting fluids, and mild acids.

Vibration and mechanical shock — the 1783-BMS10CGL is rated to IEC 60068-2-6 vibration testing (10–500 Hz, 2 g) and IEC 60068-2-27 shock testing (15 g, 11 ms half-sine). DIN rail mounting with the supplied grounding lug eliminates ground loops that cause phantom faults in high-vibration environments. In practice, this switch survives on press lines, compressor skids, and mobile equipment where cheaper switches fail within months.

Operating range of 0 °C to +60 °C covers the majority of industrial control cabinet environments. For ambient temperatures above 50 °C, ensure the cabinet has forced-air cooling — the switch itself is rated, but sustained operation at thermal limits accelerates capacitor aging in the power supply section.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international gateways. This is not a drop-ship operation. Stock is physically on our shelves, inspected, and ready to pack.

Standard Dispatch Process:

• Order confirmed + payment cleared before 15:00 CST → same-day dispatch
• Export documentation (commercial invoice, packing list, HS code 8517.62) prepared in-house — no third-party freight forwarder delays
• DHL Express: Southeast Asia 1–2 days, Middle East 2–3 days, Europe 3–4 days, North America 3–5 days
• FedEx International Priority: available for time-critical shipments with guaranteed delivery windows
• Tracking number provided within 2 hours of dispatch via email and WhatsApp
• For orders requiring formal customs clearance documentation (CE declaration, country of origin certificate), request at time of order — we prepare same day

We’ve shipped to oil platforms in the North Sea, automotive plants in Mexico, and water treatment facilities in the Middle East. The process is the same every time: fast, documented, and traceable. If your customs broker needs specific documentation formats, send us the template — we’ll fill it.

For orders above 5 units or project-based procurement, contact us directly for volume pricing and dedicated logistics coordination.
