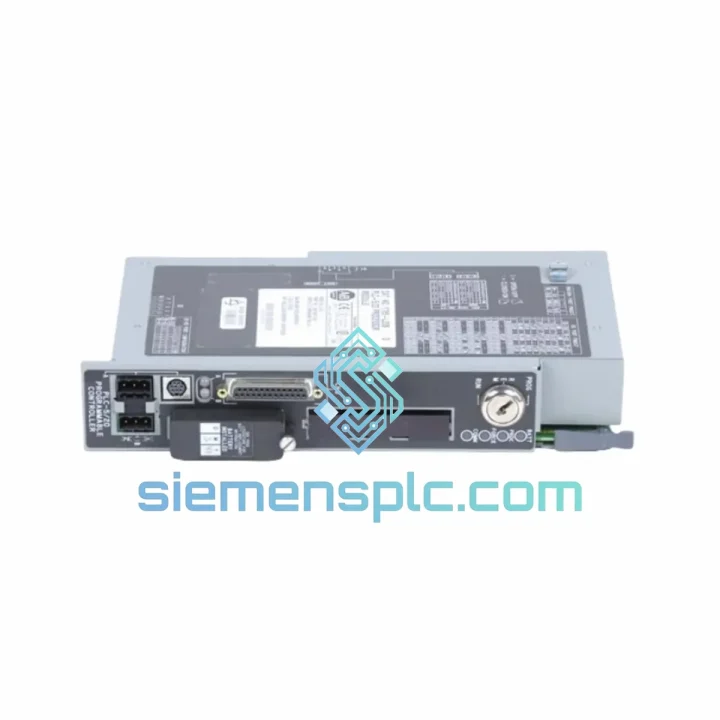

Allen-Bradley 1785-L40L/E PLC Processor – PLC-5 Series

Allen-Bradley 1785-L40L/E: PLC-5/40L Processor Module in Industrial Control Architecture

The Allen-Bradley 1785-L40L/E is a mid-to-large capacity programmable logic controller processor within Rockwell Automation’s PLC-5 family. It functions as the central execution engine of a 1771-series I/O chassis, managing ladder logic scan cycles, I/O arbitration, and peer-to-peer network communication simultaneously. In distributed manufacturing environments — automotive body shops, petrochemical process trains, water treatment SCADA nodes — this processor handles deterministic control loops where scan-time jitter directly translates to process variance. The /40L designation indicates a 40-point local I/O capacity baseline with extended remote I/O (RIO) scanner capability, while the /E suffix identifies a specific hardware revision with associated firmware baseline. Understanding the distinction between revision letters is operationally critical: substituting an incorrect revision in a hot-standby or redundant configuration can cause arbitration faults at the backplane level.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 1785-L40L/E processor operates on a shared-memory backplane architecture within the 1771 chassis. The processor occupies the leftmost slot and communicates with I/O modules via a parallel backplane bus, where data transfer is governed by a deterministic I/O scan sequence rather than an interrupt-driven model. This design choice — characteristic of the PLC-5 generation — ensures that scan time remains predictable under normal load, a property that interrupt-driven architectures cannot guarantee without careful priority engineering.

EMC Design: The 1785-L40L/E incorporates opto-isolation barriers at the backplane interface boundary. Digital I/O signals crossing from field wiring into the processor’s data domain pass through optocoupler stages rated for common-mode rejection, attenuating conducted noise from inductive loads such as motor contactors and solenoid valves. The chassis itself provides a Faraday-cage effect when properly grounded per Rockwell’s installation guidelines (Publication 1770-4.1), with chassis ground bonded to the DIN rail or panel ground bus at a single point to prevent ground loop currents.

DH+ Network Arbitration: The Data Highway Plus port on the 1785-L40L/E uses a token-passing protocol at the physical layer, operating over a shielded twisted-pair trunk at up to 230.4 kbps. Token rotation time is bounded by the number of active nodes on the segment (maximum 64 nodes), making network latency calculable — a property essential for peer-to-peer MSG instruction timing in multi-PLC architectures. The processor’s DH+ controller handles token management independently of the ladder scan engine, so network communication does not directly extend scan time in the same way that synchronous communication blocks would.

RIO Scanner Logic: The remote I/O scanner in the 1785-L40L/E manages discrete and analog I/O racks distributed across the plant floor via a dedicated RIO coaxial or twisted-pair trunk. The scanner operates asynchronously to the main ladder scan, updating an I/O image table that the processor reads at the beginning of each scan cycle. This decoupling means that RIO communication faults are flagged in the processor’s fault table without halting the main scan — allowing the control program to implement graceful degradation logic rather than hard fault stops.

Memory Architecture: Program and data memory in the PLC-5/40L is organized into data files (integer, float, binary, timer, counter, control, string) and program files. The /E revision’s memory map is fixed at the factory; field-expandable memory is not supported in this generation. Battery-backed SRAM retains program and data across power cycles, with the battery life rated at approximately 3–5 years under normal operating conditions. Battery status is monitorable via the processor’s status file (S:11), enabling predictive maintenance scheduling without physical inspection.

System Integration Benefits

• Deterministic Scan Execution: The fixed-priority scan architecture delivers consistent scan times under steady-state load, enabling precise timing of output pulses and sequenced operations without reliance on software timers alone.
• Backward-Compatible Drop-In Replacement: The 1785-L40L/E maintains full backward compatibility within the 1771 chassis ecosystem. No chassis rewiring or I/O module reconfiguration is required when replacing a failed processor of the same catalog number and revision.
• Peer-to-Peer MSG Instruction Support: Native DH+ MSG instructions allow the processor to read from and write to data files in other PLC-5 or SLC 500 processors on the same DH+ segment, enabling distributed data sharing without a dedicated communication coprocessor.
• Fault Transparency via Status Files: The processor exposes a comprehensive status file (S: data file) that records major and minor fault codes, I/O fault flags, battery status, and scan time metrics. This data is accessible via RSLogix 5 online monitoring or via DH+ MSG reads from an HMI or SCADA system.
• RIO Fault Isolation: Individual RIO rack faults are isolated to the affected rack’s I/O image table bits without propagating a major fault to the processor, allowing the control program to implement zone-based fault handling and partial-system operation.
• Hot Backup Redundancy Compatibility: When paired with the 1785-CHBM Hot Backup Module, the 1785-L40L/E participates in a primary/standby redundancy scheme. The standby processor tracks the primary’s data table in near-real-time, enabling bumpless transfer on primary failure with switchover times measured in scan cycles rather than seconds.
• RSLogix 5 Online Edit Capability: The processor supports online program edits — adding, modifying, or deleting ladder rungs while the processor remains in Run mode — reducing planned downtime for program changes in continuous-process applications.
• Scalable I/O Architecture: The combination of local 1771 chassis I/O and extended RIO network support allows a single 1785-L40L/E to manage I/O counts in the thousands, scaling from a single-rack machine controller to a plant-wide distributed control node without processor replacement.

Quality Assurance & Global Logistics

Every Allen-Bradley 1785-L40L/E unit supplied by siemensplc.com is sourced through verified supply channels and subjected to a structured pre-shipment inspection protocol. Physical examination covers label authenticity, revision marking consistency, connector pin integrity, and absence of rework indicators such as solder bridges or replaced components. Where test equipment is available, units are powered on in a 1771 chassis to confirm processor initialization, DH+ port response, and status LED behavior against Rockwell’s documented startup sequence.

Packaging follows IEC 61340-5-1 electrostatic discharge protection standards: processors are sealed in anti-static poly bags, placed in foam-lined inner boxes, and packed in double-wall corrugated outer cartons rated for international air and sea freight handling. Each shipment includes a packing list, inspection record, and — where applicable — original manufacturer documentation. Export documentation (commercial invoice, packing list, certificate of origin) is prepared in compliance with destination country import requirements.

Logistics operations are based in Xiamen, China, with direct access to Xiamen Gaoqi International Airport and Xiamen Port, supporting both air express (DHL, FedEx, UPS) and sea freight consolidation. Standard air express transit times to major industrial hubs: Europe 3–5 business days, North America 4–6 business days, Southeast Asia 2–3 business days. Expedited same-day dispatch is available for orders confirmed before 14:00 CST.

All units carry a 12-month warranty from the date of shipment, covering verified manufacturing defects. Warranty claims are processed with full traceability documentation. Technical support for installation and integration questions is available post-delivery via email and WhatsApp.
