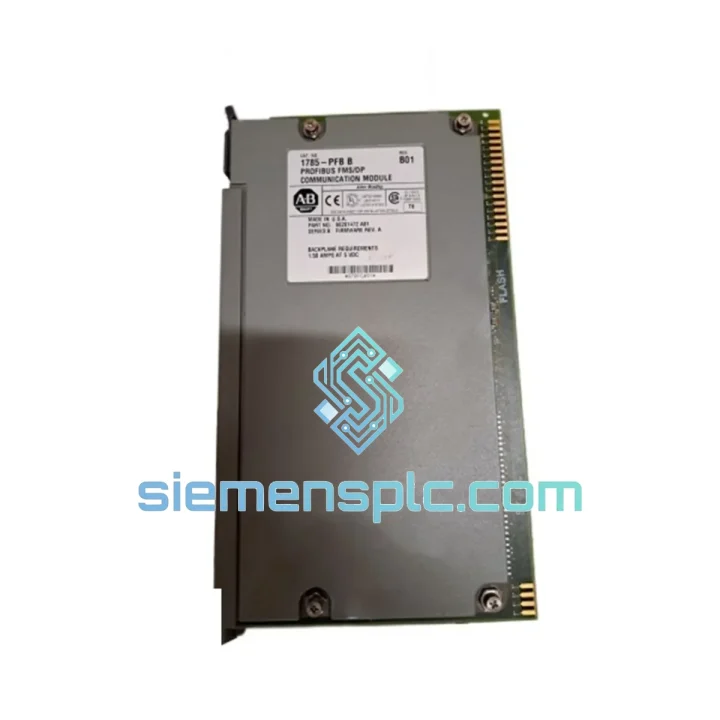

Allen-Bradley 1785-PFB PLC Communication Module

Allen-Bradley 1785-PFB: Stop the Bleeding — Get Your Line Back Up in 24 Hours

Your PROFIBUS segment is dead. The PLC-5 is throwing BT Error 18 or the module status LED is solid red. Every minute the line sits idle, you’re burning money — shift bonuses, penalty clauses, customer escalations. The Allen-Bradley 1785-PFB is the exact module you need, and we have it in stock, tested, and ready to ship today from Xiamen, China via DHL Express.

This is not a listing page. This is a field replacement guide written by engineers who have pulled failed 1785-PFB units off live chassis at 2 AM. Read it, order it, get your plant running.

URGENT REQUIREMENT?
📧 Email: [email protected]
📱 WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Top 3 failure signatures that confirm you need a new 1785-PFB:

• Module Status LED: Solid Red — Internal hardware fault. No firmware recovery possible. Replace the module.
• BT Error Code 18 (Block Transfer Timeout) — The PLC-5 processor cannot complete a BTR/BTW to the 1785-PFB. Usually caused by a failed module ASIC or corrupted onboard configuration. Swap the module first before chasing wiring.
• All PROFIBUS slaves go offline simultaneously — If the RS-485 segment checks out (termination resistors in place, cable continuity confirmed, no ground loops), the 1785-PFB’s DP controller chip has failed. This is the most common failure mode after 8–12 years of service.

Step-by-step hot-swap procedure (PLC-5 chassis, non-redundant):

1. Document first. Screenshot or photograph the RSNetWorx for PROFIBUS network configuration. Export the .NPX project file. You will need this to re-download to the replacement module.
2. Note the slot address. The 1785-PFB uses a fixed chassis slot address. The replacement module must go into the exact same slot — the PLC-5 processor references it by slot number in the BTR/BTW instructions.
3. Check DIP switches. The 1785-PFB has onboard DIP switches that set the module’s PROFIBUS node address when operating as a slave. Before removing the failed unit, photograph the switch positions. Set the replacement to identical positions before insertion.
4. Power down the chassis. Unlike some ControlLogix modules, the PLC-5 chassis does not support hot-insertion of communication modules. Remove chassis power before swapping.
5. Seat the replacement module firmly. The PLC-5 backplane connector requires positive engagement — you should feel a definite click. A partially seated module will cause intermittent BT errors that are extremely difficult to diagnose.
6. Re-download the RSNetWorx configuration. Connect your laptop to the module’s configuration port, open RSNetWorx for PROFIBUS, and download the saved .NPX project. Do not skip this step — a factory-default module will not communicate with your slaves.
7. Verify firmware revision. If your PLC-5 ladder logic was written against a specific 1785-PFB firmware revision, confirm the replacement unit matches. Firmware mismatches can cause subtle data mapping errors that only appear under load.
8. Power up and monitor. Watch the module status LED sequence: flashing green during initialization, then solid green for normal operation. If you see alternating red/green, the module is detecting a PROFIBUS network fault — check termination and cable integrity before assuming the replacement is defective.

Common fault codes and what they actually mean:

• Error 0x01 – Configuration Mismatch: The GSD-based configuration downloaded to the module does not match the actual slave device connected. Verify slave firmware version and GSD file revision.
• Error 0x02 – Station Not Ready: Slave is powered but not responding to DP initialization. Check slave node address DIP switches and baud rate setting.
• Error 0x08 – Watchdog Timeout: The PROFIBUS master (1785-PFB) lost cyclic communication with a slave. Inspect RS-485 cable for damage, check termination at both ends of the segment.

Reliability in Harsh Conditions

The 1785-PFB was engineered for the realities of industrial plant floors — not climate-controlled server rooms. Rockwell Automation designed the PLC-5 series to operate continuously in environments that would destroy consumer-grade electronics within weeks.

Vibration resistance: The module’s PCB uses through-hole component mounting for critical ICs, providing superior mechanical bond strength compared to surface-mount alternatives. Conformal coating on the PCB protects against conductive dust and moisture ingress. In automotive stamping plants and paper mills where floor vibration is constant, 1785-PFB units routinely achieve 10+ year service lives without mechanical failure.

Thermal performance: Rated for continuous operation from 0 °C to +60 °C ambient. The module’s power dissipation is managed through the PLC-5 chassis backplane, which distributes heat across the chassis frame. In steel mill auxiliary control rooms where ambient temperatures regularly reach 50 °C, the 1785-PFB maintains stable operation without derating.

Humidity and contamination: The 5%–95% non-condensing humidity rating covers the vast majority of industrial environments, including coastal facilities and tropical climates. The conformal coating provides an additional barrier against salt fog and chemical vapors common in water treatment and chemical processing plants.

EMI immunity: The RS-485 physical layer used by PROFIBUS-DP provides inherent common-mode noise rejection, and the 1785-PFB’s interface circuitry includes transient voltage suppression for protection against inductive switching transients from nearby motor starters and contactors.

Every unit we ship has been inspected for physical damage, connector integrity, and confirmed to power on without fault codes. We do not ship modules with cracked PCBs, bent backplane connectors, or corroded DB-9 pins — these are the failure modes that cause callbacks and repeat downtime events.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province, China — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international express networks. This is not a drop-ship arrangement. The module is physically on our shelf.

Standard dispatch timeline:

• Order confirmed before 14:00 CST: Same-day dispatch via DHL Express or FedEx International Priority
• Order confirmed after 14:00 CST: Next business day dispatch
• Transit time to Europe: 3–5 business days (DHL Express)
• Transit time to North America: 3–4 business days (FedEx International Priority)
• Transit time to Southeast Asia: 1–3 business days (DHL Express)
• Transit time to Middle East / Africa: 4–7 business days (DHL Express)

What’s included in every shipment:

• 1785-PFB module in anti-static ESD bag
• Protective foam insert in reinforced outer carton
• Packing list with serial number and inspection date
• DHL/FedEx tracking number sent via email within 2 hours of dispatch
• Commercial invoice and packing list for customs clearance

For urgent shipments requiring Saturday delivery or specific customs documentation (e.g., Form A, EUR.1, or CITES exemption letters), contact us directly before placing your order. We handle complex export documentation daily.

If your plant is down and every hour counts, send us a WhatsApp message — we monitor it around the clock for emergency procurement requests.
