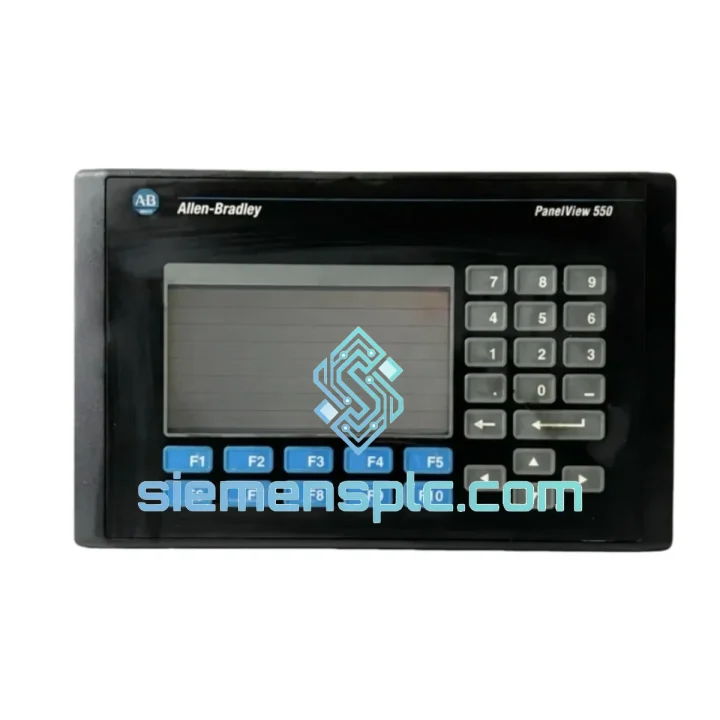

Allen-Bradley 2711-B5A8 HMI Terminal – PanelView 550

Allen-Bradley 2711-B5A8 PanelView 550 Keypad Terminal — Operator Interface Architecture in Discrete Control Loops

The Allen-Bradley 2711-B5A8 is a 5.5-inch monochrome keypad operator terminal within the PanelView 550 product family, manufactured by Rockwell Automation. In a discrete or process control loop, this terminal occupies the human-machine interface layer between the field operator and the PLC controller — translating tag-based data from the controller backplane into actionable display states, alarm acknowledgments, and setpoint entry. Its dual-port communication architecture (DH-485 and RS-232 DF1) allows it to function as a passive node on a multi-drop DH-485 token-ring network while simultaneously maintaining a point-to-point RS-232 channel for programming or printer output, without requiring a network bridge or protocol converter.

The terminal’s 512 KB application memory stores compiled PanelBuilder 32 application files, including screen objects, tag databases, alarm configurations, and communication parameters. At runtime, the onboard processor executes screen transitions and tag polling independently of the host PLC scan cycle, which means display refresh latency is decoupled from controller task execution time. This architecture prevents HMI polling overhead from introducing jitter into time-critical PLC ladder logic execution.

The front panel achieves NEMA 4, 4X, 12, and 13 ingress protection ratings, making the 2711-B5A8 suitable for deployment in environments with wash-down exposure, oil mist, dust, and non-corrosive chemical splash. The sealed membrane keypad eliminates mechanical switch contacts, reducing the primary failure mode associated with high-cycle operator interfaces in packaging and food processing lines. The monochrome STN LCD panel operates across a 0 °C to 55 °C ambient temperature range without requiring active cooling, which is consistent with standard industrial enclosure thermal management practices.

Power consumption is rated at 24 VDC with a nominal draw that allows the terminal to share a 24 VDC bus with field I/O devices in compact panel designs. The unit draws from a single unregulated 24 VDC supply, and its internal switching regulator tolerates supply voltage variation within the specified range without requiring a dedicated regulated rail.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 2711-B5A8 implements a split-bus communication architecture that is architecturally distinct from single-port HMI designs. The DH-485 port operates as a token-ring node, meaning the terminal participates in the network’s token-passing arbitration cycle. Token hold time is bounded by the network configuration, which prevents any single node — including the HMI — from monopolizing bus bandwidth during high-traffic conditions. This is particularly relevant in multi-node SLC 500 networks where several PLCs and the HMI share the same DH-485 segment.

The RS-232 port supports both DF1 full-duplex (point-to-point with CRC error checking) and DF1 half-duplex (multi-drop with BCC or CRC). The DF1 protocol layer includes embedded ACK/NAK handshaking and automatic retransmission on communication error, which provides a degree of link-layer fault tolerance without requiring application-level error handling in the PLC program.

The membrane keypad assembly uses a polyester overlay bonded to a PCB-mounted dome-switch matrix. The absence of mechanical pivot contacts eliminates the primary wear mechanism in high-cycle environments. The keypad matrix is scanned at the firmware level with debounce filtering applied in software, which suppresses false key events caused by vibration — a relevant characteristic in press, stamping, and conveyor applications where panel vibration is continuous.

EMC performance is achieved through a combination of chassis grounding via the panel mounting hardware, filtered power input circuitry, and shielded cable requirements on the communication ports. The unit complies with EN 61000-4-2 (ESD), EN 61000-4-4 (EFT/burst), and EN 61000-4-5 (surge) immunity levels appropriate for industrial environments. The LCD driver circuitry is contained within a shielded sub-assembly to prevent display switching noise from coupling into the communication signal lines.

System Integration Benefits

• Zero-impact polling architecture: Tag polling from the HMI runs on a separate communication task from the PLC scan cycle, ensuring HMI data requests do not extend PLC scan time or introduce determinism degradation in time-critical ladder logic.
• Multi-node DH-485 compatibility: The terminal operates as a standard DH-485 node (address 1–31), allowing it to coexist on networks with up to 32 nodes including SLC 500 processors, MicroLogix controllers, and other PanelView terminals without requiring a dedicated communication module.
• Dual-protocol flexibility: Simultaneous DH-485 and RS-232 port availability allows the terminal to maintain a live PLC connection while the RS-232 port is used for application upload/download or hardcopy alarm printing, without interrupting runtime operation.
• Alarm management with operator acknowledgment: The PanelBuilder 32 application supports alarm banners with mandatory operator acknowledgment sequences, creating an auditable operator response record within the HMI application log.
• Non-volatile application storage: Application data is stored in flash memory, ensuring the terminal resumes normal operation after a power interruption without requiring re-download from a programming device.
• NEMA 4X front-panel sealing: The IP65-equivalent front-panel seal allows the terminal to be mounted in wash-down zones in food, beverage, and pharmaceutical facilities without requiring a secondary protective enclosure over the display face.
• Wide operating temperature range: The 0–55 °C ambient specification covers the majority of industrial enclosure internal temperatures without requiring forced-air cooling, reducing panel design complexity and long-term maintenance requirements.
• Direct SLC 500 and MicroLogix integration: Native DH-485 protocol support eliminates the need for protocol converters or gateway modules when connecting to SLC 5/01 through 5/05 and MicroLogix 1000–1500 processors, reducing BOM cost and potential communication failure points.

Quality Assurance & Global Logistics

Each Allen-Bradley 2711-B5A8 unit supplied by siemensplc.com is sourced from verified industrial distribution channels and OEM-authorized surplus inventory. Prior to shipment, every unit undergoes a structured functional verification procedure: power-on self-test confirmation, communication port continuity check, display pixel uniformity inspection, and keypad matrix scan verification. Units that do not pass all verification steps are quarantined and not offered for sale.

Packaging follows anti-static ESD protocols: each unit is placed in a conductive poly bag, cushioned with closed-cell foam, and shipped in a double-wall corrugated carton. Serial numbers and batch references are documented for each shipment and available to customers on request for traceability purposes.

Logistics operations are based in Xiamen, China, with access to major international freight carriers including DHL Express, FedEx International Priority, and UPS Worldwide Expedited. Standard export documentation — commercial invoice, packing list, and certificate of origin — is prepared for all international shipments. For customers requiring expedited delivery, same-day dispatch is available for orders confirmed before 14:00 CST. Typical transit times are 3–5 business days to Europe, 4–6 business days to North America, and 2–4 business days to Southeast Asia.

All units carry a 12-month warranty from the date of shipment. Warranty coverage includes replacement or full refund for units that fail under normal operating conditions within the warranty period. Customers are required to provide a failure description and, where possible, a photograph of the unit and its installation environment to initiate a warranty claim. Warranty claims are processed within 3 business days of receipt of the defective unit.
