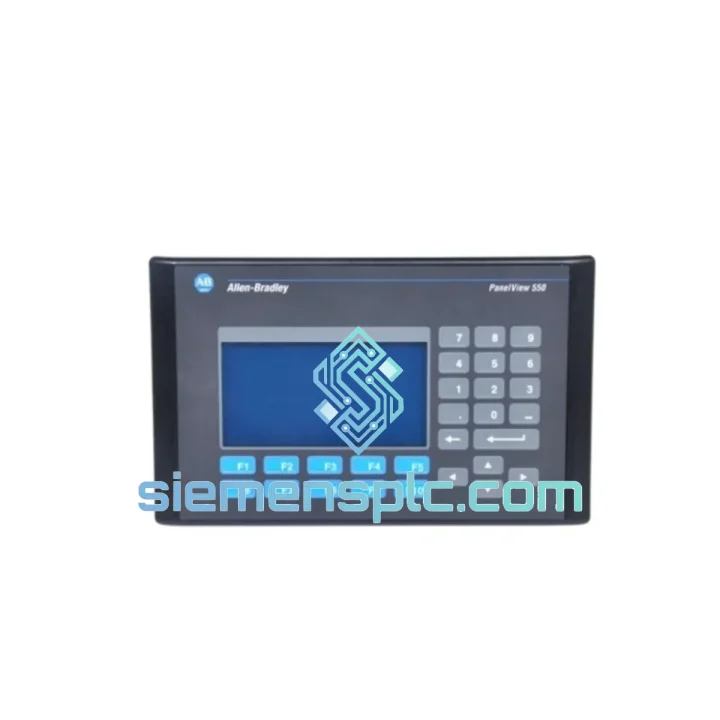

Allen-Bradley 2711-B5A8X HMI Terminal – PanelView 550

Allen-Bradley 2711-B5A8X PanelView 550 — Operator Interface Architecture in Discrete and Process Control Loops

The 2711-B5A8X occupies a well-defined position in the Rockwell Automation control hierarchy: it is the operator-facing terminal that bridges the deterministic execution layer of an SLC 500 or MicroLogix controller with the human decision layer on the plant floor. Unlike display-only annunciators, this unit carries bidirectional data exchange — operators write setpoints, acknowledge faults, and trigger discrete outputs through a 5.5-inch monochrome LCD combined with a resistive touchscreen overlay and a physical function-key matrix. The dual-input architecture is not a redundancy feature; it is a deliberate ergonomic decision that accommodates gloved hands, high-vibration mounting positions, and legacy operator workflows that rely on tactile key confirmation rather than touch gesture.

Within a DH-485 multi-drop segment, the 2711-B5A8X operates as a passive node — it does not arbitrate the token ring but responds to poll cycles initiated by the host controller. This keeps scan-time impact on the PLC deterministic and predictable. The RS-232 port provides a point-to-point alternative for single-controller installations or for application download via PanelBuilder 32, eliminating the need for a separate programming adapter in many retrofit scenarios.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 2711-B5A8X is built around a fixed-function embedded processor architecture — there is no general-purpose OS, no file system, and no network stack beyond the DH-485 and RS-232 physical layers. This design choice directly benefits determinism: the terminal’s communication polling cycle is fixed and does not compete with background OS tasks. In environments where PLC scan times are tuned to sub-10 ms windows, the absence of OS jitter in the HMI communication layer prevents spurious timeout faults on the DH-485 segment.

The resistive touchscreen overlay uses a four-wire analog matrix. Unlike projected capacitive panels, the four-wire resistive design is immune to conductive contamination — coolant mist, metallic dust, and thin liquid films do not generate phantom touch events. The activation force threshold (typically 100–300 g) provides tactile confirmation that capacitive panels cannot replicate, which is operationally significant in high-noise environments where visual feedback alone is insufficient.

The physical keypad matrix is scanned independently of the touchscreen controller. This means a touchscreen failure — whether from overlay delamination or controller fault — does not disable keypad input. Operators can continue to navigate screens and acknowledge alarms via function keys, maintaining process visibility until a planned maintenance window. This hardware-level input redundancy is a meaningful reliability differentiator in continuous-process applications where unplanned HMI downtime carries production cost.

EMC performance is achieved through a combination of chassis grounding via the panel-mount bezel, internal filtering on the DC power input rail, and shielded cable requirements on the DH-485 segment. The NEMA 4/4X front-face rating provides an additional physical barrier against conducted interference from high-pressure washdown operations. Engineers specifying this unit in VFD-dense panels should route DH-485 cabling in a dedicated conduit separated from power conductors by a minimum of 150 mm, consistent with Rockwell Automation wiring practice publication DRIVES-IN001.

System Integration Benefits

• Zero-gateway DH-485 integration: The 2711-B5A8X connects directly to SLC 500 and MicroLogix controllers on the DH-485 segment without protocol converters, eliminating an additional failure point and reducing panel wiring complexity.
• Deterministic poll-response timing: As a passive DH-485 node, the terminal does not introduce variable latency into the token-passing cycle, preserving the controller’s scan-time budget for I/O processing.
• PanelBuilder 32 application portability: Existing screen applications developed for any PanelView 550 variant transfer directly to the 2711-B5A8X via memory module or RS-232 download, reducing engineering hours during panel replacements.
• Dual-input fault tolerance: Independent touchscreen and keypad scanning circuits ensure operator access to alarm acknowledgment and setpoint entry even if one input method is degraded.
• NEMA 4/4X front-face sealing: Allows installation in washdown zones without a secondary protective enclosure, reducing panel footprint and material cost.
• Monochrome LCD longevity: Passive monochrome LCD technology has a demonstrated service life exceeding 50,000 hours at rated operating temperature, outperforming early-generation color TFT panels in thermal stability.
• Diagnostic transparency via alarm banners: The PanelView 550 platform supports configurable alarm banner displays that surface controller fault codes directly on the operator screen, reducing mean time to diagnose (MTTD) without requiring a laptop connection to the PLC.
• Compact 5.5-inch form factor: The panel cutout dimensions are compatible with existing PanelView 550 installations, enabling direct swap replacement without enclosure modification — a critical cost factor in retrofit projects where panel real estate is fixed.

Quality Assurance & Global Logistics

Every 2711-B5A8X unit dispatched from our Xiamen facility undergoes a structured pre-shipment inspection protocol. Physical inspection covers connector pin integrity, bezel condition, label legibility, and keypad actuation force verification. Power-on functional testing confirms display initialization, backlight operation, and communication port response. Units that do not pass all inspection checkpoints are quarantined and not listed for sale.

Xiamen’s position as a major southern China logistics hub provides direct access to international express carriers including DHL Express, FedEx International Priority, and UPS Worldwide Expedited. Transit times to Western Europe average 3–5 business days; to North America, 4–6 business days; to Southeast Asia, 1–3 business days. All shipments include full commercial invoice documentation, packing list, and HS code declaration to support customs clearance without delay.

Units are packed in anti-static polyethylene bags, surrounded by 50 mm closed-cell polyethylene foam, and placed in double-wall corrugated cartons rated for international air freight handling. Serial number and date code are recorded at dispatch and included in the shipment documentation, providing full traceability from our inventory to the end installation. A 12-month warranty covers manufacturing defects and functional failures under normal operating conditions.
