Allen-Bradley 2711C-K3M HMI Terminal – PanelView C300

Allen-Bradley 2711C-K3M: Compact Keypad HMI for Deterministic Machine Control

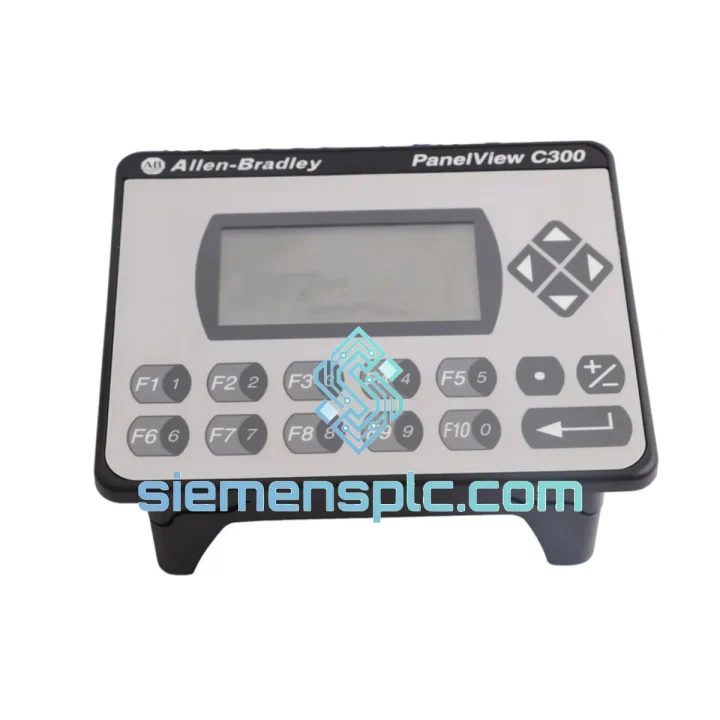

The Allen-Bradley 2711C-K3M is a 3-inch monochrome keypad operator terminal within the PanelView C300 product family, manufactured by Rockwell Automation. Its primary function in a control loop is to serve as the operator-facing node on a DH-485 or RS-232 serial network, translating PLC register states into readable process data and accepting discrete operator inputs — setpoints, mode selections, and command acknowledgments — without introducing latency that would compromise scan-cycle determinism on the host MicroLogix controller.

Unlike touchscreen-based terminals that rely on capacitive sensing layers and coordinate-mapping firmware, the 2711C-K3M uses a membrane keypad matrix with direct electrical contact closure. Each key actuation generates a debounced digital signal processed by the terminal’s onboard microcontroller, which then encodes the event into a DH-485 data frame and transmits it to the PLC within a single token-passing cycle. This architecture eliminates the variable latency inherent in touch-event queuing, making the 2711C-K3M appropriate for applications where operator input must be reflected in the PLC’s I/O image table within a predictable, bounded time window.

📦 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 2711C-K3M’s hardware design reflects a deliberate trade-off between functional simplicity and environmental robustness. Several architectural decisions are worth examining from an engineering standpoint.

DH-485 Token-Passing Bus Architecture: DH-485 is a multi-drop, half-duplex serial network operating at 1200, 2400, 4800, or 19,200 baud. The token-passing protocol guarantees that each node — including the 2711C-K3M — receives a bounded transmission window, preventing bus contention and ensuring deterministic message delivery. At 19,200 baud with a two-node network (HMI + MicroLogix), round-trip latency for a 10-byte data frame is under 10 ms, well within the update rate requirements of most operator display applications.

Membrane Keypad EMC Resilience: The keypad matrix uses a resistive contact layer with hardware debounce filtering implemented in the terminal’s microcontroller firmware. The absence of a capacitive sensing layer eliminates susceptibility to electrostatic discharge (ESD) events that can cause false touch registrations in high-EMI environments such as motor drive cabinets or welding cells. The 2711C-K3M’s enclosure is constructed from UL94 V-0 rated polycarbonate with an internal EMC shielding layer bonded to the rear housing, providing attenuation of radiated emissions consistent with EN 61000-4-3 (radiated immunity, 10 V/m).

Monochrome LCD Power Architecture: The STN monochrome LCD panel operates from a regulated 5V rail derived from the 24V DC input via an onboard DC-DC converter. The converter uses a synchronous buck topology with a switching frequency above 200 kHz, placing switching noise well above the DH-485 signal band (≤ 19.2 kHz) and preventing conducted interference from corrupting serial communication. The LCD backlight (CCFL or LED depending on production revision) is driven by a separate PWM circuit, allowing brightness adjustment without affecting the logic supply rail.

Non-Volatile Application Storage: Screen configurations created in PanelBuilder 300 are stored in onboard Flash memory. Flash retention is rated at 10 years at 55 °C, meaning application data survives power cycling, battery depletion (no battery is required), and extended storage without corruption. This eliminates the maintenance burden associated with battery-backed SRAM used in older HMI platforms.

Thermal Management: The 2711C-K3M is a passively cooled device. The polycarbonate housing acts as a thermal spreader, dissipating the ≤ 5 W power budget through convection. At the rated maximum ambient of 55 °C, internal junction temperatures remain within the operating envelope of all active components, as validated by Rockwell Automation’s thermal characterization testing per IEC 60068-2-14.

System Integration Benefits

• Zero-Gateway MicroLogix Connectivity: Native DH-485 support means the 2711C-K3M connects directly to MicroLogix 1100/1400 communication ports using a standard 1761-CBL-PM02 cable, eliminating the cost and failure point of a protocol gateway or Ethernet adapter.
• Deterministic Operator Input Latency: Membrane keypad events are encoded and transmitted within the next available DH-485 token window, providing bounded input-to-PLC latency that touchscreen terminals with event queuing cannot guarantee.
• Reduced Panel Wiring Complexity: A single RS-232/DH-485 cable carries both display data and operator input between HMI and PLC, reducing wiring harness complexity compared to discrete pushbutton and pilot light installations.
• NEMA 4X Ingress Protection Without Additional Enclosure: The panel-mount gasket achieves IP65 / NEMA 4X sealing at the cutout, allowing installation in wash-down zones without a secondary protective enclosure around the terminal.
• Vibration and Shock Tolerance for Mobile and Heavy-Industry Platforms: 2 g vibration and 15 g shock ratings allow deployment on mobile equipment, compactor frames, and press-line control panels where vibration levels would degrade touchscreen calibration or damage glass display assemblies.
• Simplified Maintenance Diagnostics: PanelBuilder 300 supports alarm display pages with configurable bit-mapped alarm messages sourced directly from PLC integer or binary files, enabling maintenance personnel to read fault codes without a laptop or programming cable.
• Long-Term Spare Parts Availability: The PanelView C300 platform has been in production for over a decade, with established global distribution. Replacement units and accessories (cables, mounting hardware) are available through authorized Rockwell Automation distributors and secondary market suppliers, reducing obsolescence risk for long-lifecycle machine designs.
• Low Commissioning Time: PanelBuilder 300 projects can be developed offline, downloaded via RS-232 programming port, and verified against a live MicroLogix controller in a single commissioning session, reducing panel startup time compared to Ethernet-based HMI platforms that require IP address configuration, switch provisioning, and firewall rule management.

Quality Assurance & Global Logistics

Every 2711C-K3M unit offered through siemensplc.com is sourced from verified industrial supply channels with full documentation traceability back to authorized Rockwell Automation distribution. Pre-shipment inspection covers physical housing integrity, connector pin condition, label authenticity verification against Rockwell Automation part number databases, and where feasible, a power-on functional check confirming display initialization and keypad response.

Units are packed in anti-static bags, placed in foam-lined inner cartons, and shipped in double-wall export cartons rated for international freight handling. Shipments originate from our warehouse in Xiamen, China, with access to DHL Express, FedEx International Priority, and sea freight consolidation services. Standard DHL Express transit times to major industrial hubs: Europe 3–5 business days, North America 4–6 business days, Southeast Asia 2–3 business days. Commercial invoice, packing list, and HS code documentation (HS 8537.10 for HMI terminals) are provided with every shipment to facilitate customs clearance. For projects requiring multiple units or phased delivery schedules, contact our team to arrange a blanket order with staged shipments.
