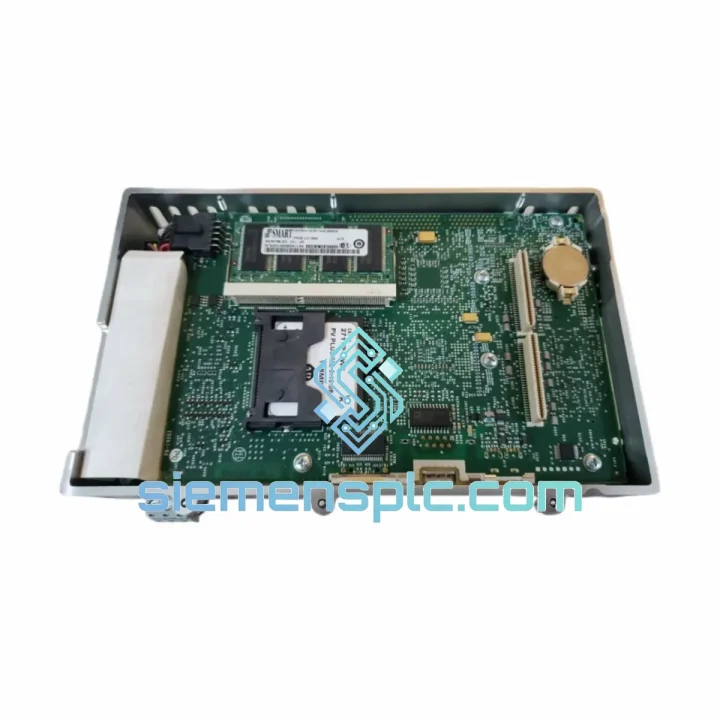

Allen-Bradley 2711P-RP2A HMI Logic Module

2711P-RP2A Down? Every Minute of Downtime Costs You — Get Back Online Fast

Your PanelView Plus terminal just went dark. The operator screen is dead, the line is stopped, and the shift supervisor is already on the phone. You’ve isolated the fault to the logic module — the 2711P-RP2A. You need a replacement now, not in three weeks from a slow-moving distributor.

We stock the Allen-Bradley 2711P-RP2A logic module in Xiamen and ship globally via DHL and FedEx Express. Same-day dispatch on confirmed orders. No MOQ. No bureaucracy. Just the part, fast.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The 2711P-RP2A is a field-swappable logic module, but a botched replacement will cost you another hour of downtime. Here’s what ten years of field work has taught me:

Common Failure Symptoms

• Blank screen on power-up: Terminal powers on (backlight active) but no display output — classic logic module failure, not a display panel issue. Confirm by checking the terminal’s diagnostic LED sequence on the rear I/O panel.
• Fault Code E0505 / E0506: Flash memory read/write error. The module’s NAND flash has degraded. Replacement is the only fix — firmware reflash will not recover a failed flash chip.
• Fault Code E0301: OS boot failure. Often caused by corrupted Windows CE image after a power interruption during a firmware update. A new 2711P-RP2A with a factory-fresh OS image resolves this immediately.
• Application loss after power cycle: If the terminal loses its FactoryTalk View ME runtime application on every restart, the flash memory is failing. Do not waste time re-downloading the application — replace the module.
• Communication port unresponsive: EtherNet/IP or DH-485 port not responding despite correct IP configuration. This can indicate a logic module fault rather than a network issue. Swap the module before chasing cable faults.

Step-by-Step Replacement Procedure

1. Back up the application: If the terminal is still partially functional, use FactoryTalk View ME to upload the runtime application to a laptop before pulling the module. Even a corrupted backup is better than nothing.
2. Power down and lock out: De-energize the terminal. Follow your site LOTO procedure. The 2711P-RP2A is not hot-swappable.
3. Remove the rear access cover: On PanelView Plus 6 terminals, the logic module is accessed from the rear panel. Remove the four M3 screws on the module cover plate.
4. Extract the module: The 2711P-RP2A slides out on a guide rail. Pull firmly but straight — do not rock it side to side or you risk damaging the connector pins on the terminal backplane.
5. Inspect the backplane connector: Before inserting the new module, visually inspect the 60-pin backplane connector for bent pins or corrosion. A damaged backplane connector will kill a new module within minutes.
6. Insert the replacement module: Slide the new 2711P-RP2A in along the guide rail until it seats fully. You should feel a positive click from the retention latch. Reinstall the cover plate.
7. Firmware version matching: Power up the terminal. On first boot, the terminal will display the firmware version on the 2711P-RP2A. Verify it matches or is compatible with your FactoryTalk View ME application version. Mismatched firmware versions are the #1 cause of post-replacement application errors. Use FactoryTalk View ME to update firmware if required.
8. Restore the application: Download your FactoryTalk View ME runtime application to the terminal. Verify all screens, tags, and communication connections are functional before returning the line to production.
9. No DIP switches on this module: Unlike some older PanelView models, the 2711P-RP2A has no physical DIP switches or address jumpers. All configuration is handled through the terminal’s software interface.

Pro tip: Keep one 2711P-RP2A pre-loaded with your current application image as a cold spare. A pre-configured spare cuts your recovery time from 2 hours to under 15 minutes.

Reliability in Harsh Conditions

The 2711P-RP2A was engineered for the realities of industrial environments — not a climate-controlled server room. Rockwell Automation designed this module to operate continuously in conditions that would destroy consumer-grade electronics.

The module is rated for operation from 0°C to 55°C ambient temperature, with storage tolerance down to -40°C. In foundries, steel mills, and outdoor enclosures where ambient temperatures regularly spike above 45°C, the module’s thermal management architecture — passive heat dissipation through the terminal chassis — keeps the flash memory and processor within safe operating limits without active cooling.

Vibration resistance is validated to IEC 60068-2-6 standards, covering sinusoidal vibration profiles typical of heavy machinery, compressor rooms, and mobile equipment installations. The logic module’s connector retention system is designed to maintain electrical contact under continuous vibration loads that would cause intermittent faults in standard PCB connectors.

Humidity tolerance extends to 95% relative humidity, non-condensing, per IEC 60068-2-78. In food processing plants, chemical facilities, and coastal installations where moisture ingress is a constant threat, the conformal coating on the 2711P-RP2A’s PCB provides a critical barrier against corrosion-induced failures.

EMI/EMC compliance to CE and UL standards ensures the module operates without interference in environments with large variable frequency drives, welding equipment, and high-current switching gear — the exact conditions where HMI failures are most disruptive and most costly.

Every unit we ship has been stored in climate-controlled, ESD-safe conditions. We do not sell modules that have been sitting in uncontrolled warehouse environments where thermal cycling and humidity exposure degrade component reliability before the part even reaches your facility.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province, China — one of China’s primary export hubs with direct access to international freight lanes via Xiamen Gaoqi International Airport and Xiamen Port.

How your order moves:

• Order confirmation (Day 0): Once payment is confirmed, your order enters our pick-and-pack queue immediately. Orders confirmed before 15:00 CST are dispatched same day.
• Export documentation (Day 0–1): We prepare the commercial invoice, packing list, and HS code declaration (HS 8537.10 for HMI logic modules). Certificate of origin available on request for preferential duty treatment.
• DHL Express / FedEx International Priority (Day 1–3): Standard transit time to Europe, North America, and Southeast Asia is 2–4 business days from dispatch. Middle East and South Asia typically 3–5 business days. We select the carrier with the fastest available transit time to your destination at time of booking.
• Tracking provided: A tracking number is sent to your email within 2 hours of dispatch. Our team monitors shipments actively and will proactively contact you if any customs delay is detected.
• Customs clearance support: We provide all documentation required for customs clearance in major import markets. For destinations with complex import requirements (Brazil, India, Russia), contact us before ordering so we can advise on the correct documentation package.
• Bulk orders: For orders of 5+ units or high-value shipments, we offer consolidated freight options and can arrange sea freight for non-urgent replenishment orders at significantly reduced cost.

We have shipped Allen-Bradley components to manufacturing facilities in Germany, Australia, Mexico, Saudi Arabia, Vietnam, and over 40 other countries. Customs clearance issues are rare when documentation is prepared correctly — and we prepare it correctly every time.

Contact Information

For urgent requirements, stock confirmation, bulk pricing, or technical pre-sales questions:

Email: [email protected]
WhatsApp: +86 18359268345
Web: siemensplc.com
