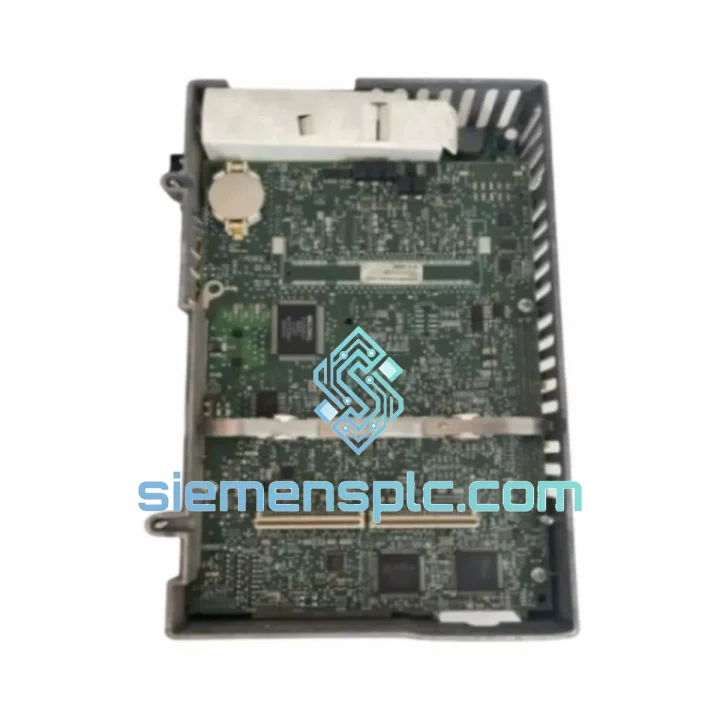

Allen-Bradley 2711P-RP8DTP HMI Logic Module – PanelView Plus 7

Allen-Bradley 2711P-RP8DTP: Computational Core of the PanelView Plus 7 HMI Terminal

The Allen-Bradley 2711P-RP8DTP is the dedicated logic module for the PanelView Plus 7 operator interface platform, manufactured by Rockwell Automation. Within the PanelView Plus 7 terminal architecture, the logic module is the sole processing unit responsible for executing the FactoryTalk View Machine Edition (ME) runtime, managing the tag database, processing alarm queues, and maintaining all communication stacks simultaneously. It is not a peripheral — it is the terminal’s brain, and its performance characteristics directly determine the determinism and responsiveness of the entire HMI control loop.

In a typical discrete or process manufacturing cell, the 2711P-RP8DTP sits at the intersection of the operator and the control system. It polls tag values from Allen-Bradley ControlLogix or CompactLogix PLCs over EtherNet/IP at configurable update rates, renders graphical displays on the connected display module via an internal high-speed bus, and simultaneously logs alarm events and historian data to onboard storage media. The module’s embedded processor handles all of these concurrent tasks without a shared OS scheduler competing for cycles — the WES7 (Windows Embedded Standard 7) environment is stripped and locked to HMI runtime execution, which eliminates the latency variability common in general-purpose computing platforms.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 2711P-RP8DTP is built around a field-hardened embedded processor architecture that differs fundamentally from consumer-grade computing modules. Several hardware design decisions are worth examining in detail for engineers evaluating this module for critical applications.

Internal Bus Architecture: The logic module connects to the PanelView Plus 7 display module via a proprietary internal bus rather than an external video interface. This eliminates the signal degradation and latency associated with HDMI or DisplayPort links in industrial environments. The bus carries both display data and touch event signals over a single shielded connector, reducing the number of potential failure points in the mechanical assembly.

Dual-Port EtherNet/IP with DLR Support: The two Ethernet ports are not simply a switch — they implement Device Level Ring (DLR) protocol at the hardware level. DLR allows the module to participate in a ring topology where a single cable break does not interrupt communication. The ring supervisor function detects the fault within 3 ms (typical) and reconfigures the data path, maintaining PLC-to-HMI tag updates without operator intervention. This is a hardware-level redundancy mechanism, not a software retry loop.

EMC Design and Isolation: The module’s PCB layout follows Rockwell Automation’s industrial EMC design rules, which include ground plane segmentation between the digital processing section and the communication interface section. The Ethernet PHY transceivers are transformer-isolated from the internal bus, providing 1500 V isolation between the network and the processor ground. USB ports include TVS diode arrays for ESD protection rated to IEC 61000-4-2 Level 4 (±8 kV contact discharge). These measures allow the module to operate in environments with variable-frequency drives, arc welders, and high-current switching equipment in close proximity.

Storage Media Redundancy: The dual-media architecture (SD + CompactFlash) allows the system integrator to configure one medium for the OS/runtime image and a second for application data, historian logs, and alarm archives. This separation prevents application data corruption from affecting the boot image, and vice versa. In a maintenance scenario, the application can be restored from SD card without re-imaging the OS.

USB Port Security: Each USB port can be independently enabled or disabled via FactoryTalk View ME configuration. This is a hardware-enforced policy, not simply a software lock — the port’s power rail is gated by the firmware, preventing unauthorized device enumeration even if the OS is compromised. This feature is relevant for facilities operating under IEC 62443 or NIST SP 800-82 cybersecurity frameworks.

System Integration Benefits

• Zero-Gateway EtherNet/IP Integration: The module communicates natively with ControlLogix, CompactLogix, MicroLogix, and PowerFlex drives over EtherNet/IP without any protocol converter or gateway device, reducing network latency and eliminating a potential single point of failure in the communication path.
• Field-Swappable Module Design: The logic module separates from the display module without tools in under 60 seconds. Replacement does not require terminal removal from the panel door, which is critical in environments where panel access is restricted or requires a permit-to-work procedure.
• FactoryTalk View ME Runtime Compatibility: Supports ME v8.x and later, with backward compatibility for applications developed on earlier terminal generations via Rockwell Automation’s migration utility. Application transfer is performed via USB or Ethernet — no proprietary programming cable required.
• Deterministic Tag Update Rates: The EtherNet/IP communication stack on the module supports Requested Packet Interval (RPI) values as low as 10 ms for tag subscriptions, providing predictable display refresh rates that are independent of network congestion on the plant backbone.
• Integrated Alarm and Event Logging: The module’s alarm manager stores timestamped alarm records to onboard media with millisecond resolution. Log files are accessible via FTP or USB without interrupting the running application, supporting post-incident analysis without production downtime.
• Diagnostic Transparency via FactoryTalk Diagnostics: The module generates structured diagnostic messages that are forwarded to FactoryTalk Diagnostics on the plant network. Communication faults, memory warnings, and application errors are logged with source identification, reducing mean time to diagnose (MTTD) for maintenance personnel.
• Multi-Protocol Serial Support: The RS-232 port supports DF1 Full-Duplex, DF1 Half-Duplex, and DH-485 protocols in addition to generic ASCII, allowing integration with legacy barcode readers, label printers, and weighing systems without additional hardware.
• Scalable Application Capacity: Extended memory support allows HMI applications with large graphic libraries, multi-language string tables, and high-resolution trend displays to execute without paging delays. This is particularly relevant for applications migrated from older PanelView Plus 6 terminals where application size has grown over successive revisions.

Quality Assurance & Global Logistics

Every 2711P-RP8DTP unit supplied by siemensplc.com is sourced as genuine Allen-Bradley hardware from verified surplus channels and authorized distributor overstock. Units are not remanufactured, relabeled, or sourced from unverified grey-market intermediaries. The following verification and logistics process applies to all orders:

Pre-Shipment Inspection: Each unit undergoes visual inspection of the housing, connector pins, and label integrity (part number, revision level, date code, and serial number). A functional power-on test confirms the module initializes correctly and the firmware version is readable. Units that fail any inspection step are quarantined and not offered for sale.

Packaging: Modules are packed in anti-static ESD bags (ANSI/ESD S541 compliant) and placed in foam-lined cartons with corner protection. Original Rockwell Automation packaging is used where available. Carton dimensions and weight are optimized for air freight to minimize transit damage risk.

Documentation: Each shipment includes a packing list with serial number, revision level, and inspection date. A certificate of conformance (CoC) is available upon request for quality-controlled procurement processes. Functional test reports are available for qualified orders.

Global Logistics from Xiamen, China: Shipments originate from our warehouse in Xiamen, Fujian Province, China. Standard export documentation (commercial invoice, packing list, and HS code declaration) is prepared for all international orders. Preferred carriers are DHL Express and FedEx International Priority, with typical transit times of 3–5 business days to Europe, 4–6 business days to North America, and 2–4 business days to Southeast Asia. Expedited same-day dispatch is available for orders confirmed before 14:00 CST. Tracking numbers are provided within 24 hours of dispatch.

12-Month Warranty: All units carry a 12-month operational warranty from the date of shipment, covering defects in materials and workmanship under normal operating conditions. Warranty claims are processed within 5 business days of receipt of the returned unit. Replacement or full refund is offered at the buyer’s discretion.
