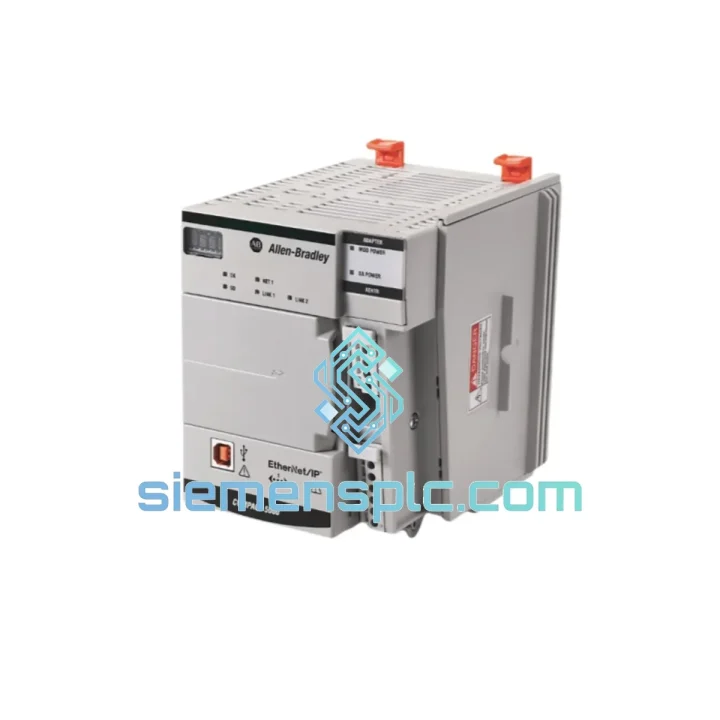

Allen-Bradley 5069-AEN2TR EtherNet/IP Adapter

5069-AEN2TR: When Your EtherNet/IP Backbone Goes Down, Every Second Costs Real Money

The alarm went off at 02:17. By 02:45 your maintenance crew had isolated the fault to the Allen-Bradley 5069-AEN2TR — the dual-port EtherNet/IP adapter anchoring your entire 5069 remote I/O bank. Sixteen I/O modules, all offline. Production halted. The clock is running.

This is exactly the scenario we built our inventory model around. The 5069-AEN2TR sits in our Xiamen warehouse, tested, verified, and ready to leave on the next DHL or FedEx cut. We are not a broker pulling from a grey-market pool. We carry physical stock, and we ship it the same day you call.

Industrial downtime in discrete manufacturing averages USD 260,000 per hour. A replacement adapter that reaches your dock in 48 hours instead of 3 weeks is not a procurement decision — it is a financial one. The math is straightforward.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The 5069-AEN2TR fails in predictable patterns. Knowing them cuts your diagnostic time from hours to minutes.

Fault signatures that point directly to the adapter — not the I/O cards:

• All 16 downstream modules fault simultaneously. Individual I/O card failures are staggered; a simultaneous bank-wide fault almost always traces back to the adapter losing backplane power or its EtherNet/IP connection.
• Studio 5000 logs “Connection Request Error — Target to Originator” on the adapter’s tag path, not on individual module paths.
• STATUS LED cycling red-green at 1 Hz — this specific pattern indicates the adapter has an IP address conflict or cannot reach its configured gateway. Distinguish from a solid red (hardware fault) before ordering a replacement.
• Intermittent I/O dropouts that correlate with panel temperature peaks above 50 °C — thermal stress on the adapter’s internal DC-DC converter, not a network issue.
• DLR ring shows “Partial Fault” in Studio 5000 Ring Diagnostics, but both ring cables test good — the adapter’s internal ring supervisor port may have failed while the module otherwise appears functional.

Replacement procedure — field-validated sequence:

1. Capture the full network configuration before touching anything. Open Studio 5000 → Controller Properties → EtherNet/IP. Record the adapter’s IP address, subnet, gateway, and whether it is configured as DLR ring supervisor. Take a screenshot. You will need these exact values on the replacement unit.
2. Export the I/O tree module configuration. Right-click the 5069-AEN2TR node in the I/O tree → Export Module. This XML file contains every downstream module’s slot assignment, RPI, connection type, and inhibit state. Re-importing it after the swap eliminates manual re-entry errors.
3. Assign the IP address to the replacement before physical installation. Use Rockwell’s BOOTP-DHCP Server utility to push the IP to the new module’s MAC address while it is still on the bench. Attempting to assign IP after installation in a live ring causes unnecessary ring disruption.
4. Match firmware revision before commissioning. The replacement module ships with factory firmware. Check your Studio 5000 project’s required adapter firmware version under Module Properties → General → Revision. Use ControlFLASH Plus to update the replacement to the matching revision. A revision mismatch generates a “Module Type Mismatch” major fault on the controller — it will not go online.
5. De-energize the 5069 bank for the physical swap. The 5069-AEN2TR does not support hot-swap in standard configurations. Remove backplane power before extracting the failed unit. Seat the replacement firmly — the backplane connector requires deliberate pressure; a partially seated module causes intermittent faults that are difficult to diagnose.
6. Re-import the module configuration XML. After the replacement is powered and IP-assigned, import the previously exported configuration file. Verify all 16 downstream module slots populate in the I/O tree with correct module types before attempting to go online.
7. Validate DLR ring integrity. Navigate to Studio 5000 → Controller Properties → EtherNet/IP → Ring Diagnostics. Confirm status reads “Normal Ring”. A “Partial Fault” at this stage means one ring segment cable is not connected to the replacement module — check both RJ-45 ports.
8. Inhibit and re-enable the adapter connection to force a clean handshake. Right-click the adapter in the I/O tree → Properties → Connection → check Inhibit Module, apply, then uncheck. This forces the controller to re-establish the Class 1 connection from scratch. Monitor connection status for 10 minutes under live I/O load before signing off.

Field note: Repeated 5069-AEN2TR failures on the same bank are almost never a module quality issue. Check panel ambient temperature — sustained operation above 55 °C degrades the adapter’s internal capacitors within 18–24 months. Verify your panel HVAC is functional and that the adapter is not mounted directly above a high-heat drive or power supply.

Reliability in Harsh Conditions

The 5069-AEN2TR is not a commercial-grade switch in an industrial enclosure. It is designed from the ground up for plant-floor deployment where the environment actively works against your equipment.

Conformal coating on the PCB assembly provides a physical barrier against condensation, airborne particulates, and corrosive atmospheres — relevant in food processing, chemical handling, and coastal installations where humidity cycling is a daily reality. The coating does not degrade the module’s thermal performance; heat dissipation paths are maintained through the backplane and the module’s aluminum housing.

Mechanical robustness is validated to IEC 60068-2-6 for sinusoidal vibration and IEC 60068-2-27 for shock. In practical terms, this covers the vibration profiles generated by large compressors, hydraulic presses, and conveyor drive systems mounted in the same structural bay as the control panel. Solder joint integrity and connector retention are tested under these conditions — not just the housing.

The dual-port DLR architecture is the most operationally significant reliability feature. In a Device Level Ring topology, a single cable break or port failure does not interrupt I/O communication. The ring supervisor detects the open ring condition in under 3 ms and reconfigures traffic through the surviving path. Your controller sees no connection loss. Your process continues. The fault is logged for maintenance to address at the next scheduled window — not during an emergency shutdown.

Every unit we dispatch from Xiamen has been powered on, IP-configured, and verified for backplane communication and EtherNet/IP connectivity before it is packaged. Storage conditions in our facility are climate-controlled and ESD-managed. We do not ship modules that have been in uncontrolled warehouse environments.

Global Express Logistics

Our logistics process is designed around one constraint: your maintenance window will not wait for standard freight.

Same-day dispatch cutoff: 15:00 CST (UTC+8). Orders confirmed before that threshold ship the same business day. Orders received after cutoff are dispatched the following morning — not queued for the next available slot.

Primary carriers:

• DHL Express Worldwide — door-to-door with customs clearance included. Covers Europe, Southeast Asia, the Middle East, and Oceania in 1–3 business days from Xiamen.
• FedEx International Priority — optimized for North American destinations. US East Coast and Canada in 2–3 business days; US West Coast in 1–2 business days.
• UPS Express / TNT — available on request for consolidated shipments or destinations with specific carrier requirements.

Standard documentation included with every shipment: commercial invoice, packing list, certificate of conformance. HS code 8537.10 pre-declared. For industries requiring full traceability — aerospace, defense, pharmaceutical — serialized inspection records are available on request before shipment.

Indicative transit times from Xiamen:

• Germany / Netherlands / UK: 2–3 business days via DHL Express
• USA East Coast: 2–3 business days via FedEx IP
• USA West Coast: 1–2 business days via FedEx IP
• Singapore / Malaysia / Thailand: 1–2 business days via DHL Express
• India / UAE / Saudi Arabia: 2–4 business days via DHL Express
• Australia / New Zealand: 2–3 business days via DHL Express

Every shipment is tracked from dispatch to delivery. If a customs hold or carrier delay occurs, we notify you proactively — you do not need to chase us for updates. For remote plant locations or destinations requiring special import permits, contact us before placing the order. We handle complex cross-border logistics on a regular basis and can advise on documentation requirements before the module leaves our facility.
