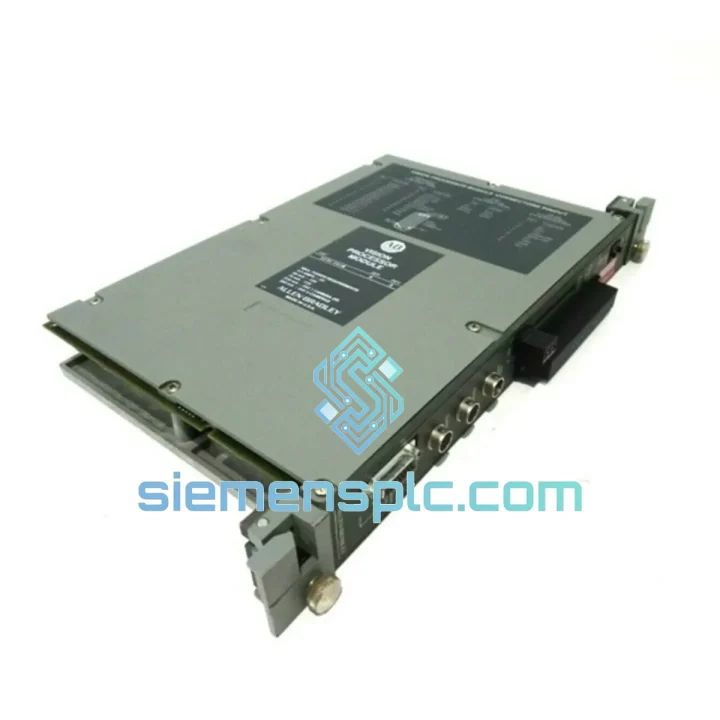

Allen-Bradley 5370-CVIM Vision Processor Module

Allen-Bradley 5370-CVIM Vision Processor Module: Stop the Clock on Your Downtime

Every minute a production line sits idle costs real money. When your 5370-CVIM vision processor fails mid-shift, you don’t have time for a 6-week lead time from a distributor. We stock the Allen-Bradley 5370-CVIM and ship same-day or next business day from Xiamen — directly to your plant floor, anywhere in the world. One call, one shipment, line back up.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The 5370-CVIM is a mature platform and its failure modes are well-documented in the field. Here’s what you need to know before you pull the old card and drop in the replacement:

Common Failure Indicators:

• Fault Code 0x0004 / 0x0008 — Image acquisition timeout. Usually points to a failed frame grabber circuit on the CVIM board itself, not the camera. Swap the CVIM first before condemning the camera head.
• Fault Code 0x0020 — Processor watchdog timeout. Often triggered by a corrupted inspection program in NVRAM. On replacement, reload your inspection program from backup before going live.
• No Communication on DH+ — Verify the node address DIP switches (SW1) on the CVIM match your original unit exactly. The 5370-CVIM does not auto-address on DH+; a mismatch will cause the entire DH+ segment to drop.
• Intermittent Trigger Failures — Check the opto-isolated trigger input (TB1 terminals 1–3). Dirty contacts or a marginal 24VDC trigger signal will cause random missed inspections that look like a processor fault.

Step-by-Step Replacement Procedure:

1. Power down the vision system and lock out the control panel. The 5370-CVIM is not hot-swappable.
2. Photograph or record the DIP switch positions on SW1 (node address) and SW2 (baud rate) before removing the old unit.
3. Disconnect all cables — DH+ network, RS-232, camera cables, and trigger wiring — labeling each connector.
4. Set the DIP switches on the replacement CVIM to match the recorded positions exactly.
5. Reconnect all cables in reverse order. Verify DH+ termination resistors are in place at both ends of the segment.
6. Power up and confirm the CVIM appears on the DH+ network from your PLC programming terminal.
7. Reload your inspection program using the original backup. Do not attempt to run without a loaded program — the module will fault immediately.
8. Run 10–20 test cycles with known-good and known-bad parts before releasing the line to production.

Firmware note: If your replacement unit ships with a different firmware revision than the original, verify compatibility with your inspection software version. Contact us and we can confirm firmware revision before shipment.

Reliability in Harsh Conditions

The 5370-CVIM was engineered for the factory floor, not a server room. Allen-Bradley designed this module to operate continuously in environments that would kill consumer-grade electronics within weeks.

The unit’s sealed backplane connector and conformal-coated PCB resist moisture ingress in humid foundry and food-processing environments. The processor and memory ICs are rated for the full 0–55°C operating range, meaning it handles the thermal cycling of a plant that goes cold overnight and heats up under production load every morning without degrading solder joints or capacitor life.

Vibration tolerance is built into the mechanical design — the card-edge connector locks positively into the 5370 chassis backplane, and the board layout keeps heavy components low-profile to reduce resonance under conveyor and press vibration. In automotive stamping plants where floor vibration is constant, the 5370-CVIM has demonstrated multi-year MTBF in documented installations.

Every unit we ship has been stored in climate-controlled, ESD-safe conditions. Boards are individually bagged in anti-static packaging with desiccant, and inspected for corrosion, pin damage, and capacitor bulge before dispatch. You receive a module that is ready to install, not one that has been sitting in an uncontrolled warehouse for a decade.

Global Express Logistics

Our dispatch hub is located in Xiamen, China — a major international freight gateway with direct DHL and FedEx service to over 220 countries and territories. Here’s how your order moves from our shelf to your dock:

• Order Confirmed → Same Day Pick & Pack: Orders confirmed before 15:00 CST are picked, inspected, and packed the same business day. ESD-safe inner packaging, foam-lined outer carton, and fragile labeling are standard.
• Export Documentation: Commercial invoice, packing list, and certificate of origin are prepared in parallel with packing. For regulated destinations, we handle HS code classification (HS 8537.10) and can provide an ESD compliance certificate.
• Carrier Selection: DHL Express Worldwide and FedEx International Priority are our primary carriers for urgent shipments. Transit times: 2–4 business days to Europe and North America, 1–3 days to Southeast Asia and the Middle East.
• Tracking: A tracking number is emailed within 2 hours of carrier pickup. We monitor shipments proactively and flag any customs holds immediately.
• Customs Clearance Support: We provide all documentation required for smooth import clearance. For customers in the EU, we can declare under DAP or DDP Incoterms depending on your preference.

For critical downtime situations, contact us directly via WhatsApp before placing your order. We can confirm stock, arrange priority dispatch, and provide a tracking number within hours.
