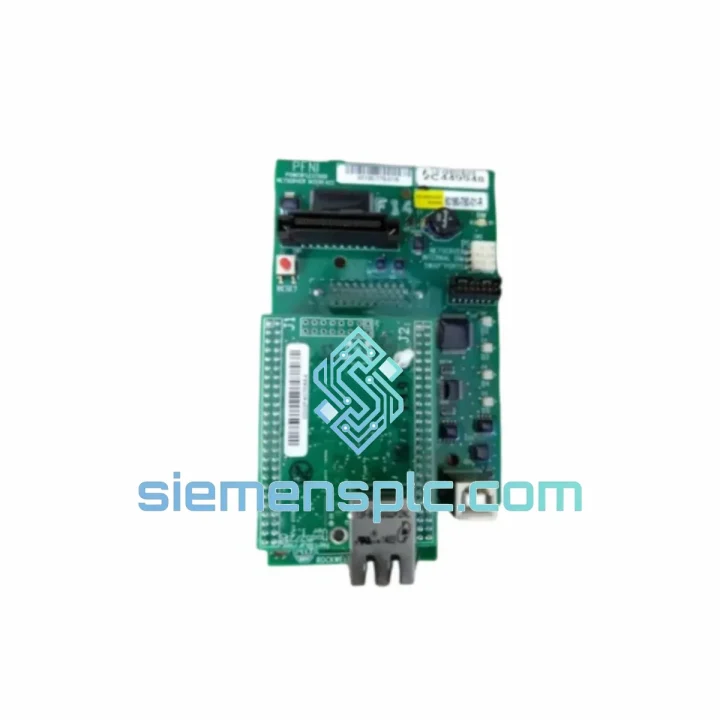

Allen-Bradley 80190-780-01-R Drive Control Board

Allen-Bradley 80190-780-01-R — Stop the Bleeding. Get Your PowerFlex Drive Back Online Today.

Every minute a PowerFlex drive sits dead on the floor, your line is hemorrhaging money. Gate signal lost. IGBT switching collapsed. Motor locked out. The 80190-780-01-R drive control board is the exact component that failed — and we have it on the shelf in Xiamen, ready to clear customs and land at your dock faster than your maintenance manager can file the downtime report.

This is not a catalog listing. This is a field-ready replacement sourced, inspected, and staged for emergency dispatch. We’ve shipped this board to automotive stamping plants in Germany, food processing lines in Australia, and water treatment stations in the Middle East — all under urgent PO conditions. We know what’s at stake when this board goes down.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After handling dozens of PowerFlex 700-series failures in the field, the 80190-780-01-R is almost always implicated when you see the following fault codes on the HIM panel:

• F012 – HW OverCurrent: Gate drive signal integrity lost. The board is no longer delivering clean turn-on/turn-off pulses to the IGBT bridge. Don’t waste time chasing the IGBT modules first — swap the drive board and retest.
• F063 – SW OverCurrent: If F063 appears at low load with no mechanical cause, suspect the current feedback path on the drive board. A degraded op-amp or shunt reference on this board will generate phantom overcurrent trips.
• F122 – Desaturation Fault: Classic sign of a failing gate driver optocoupler on the 80190-780-01-R. The IGBT is not being driven into full saturation, causing voltage drop and thermal runaway detection.
• F004 – UnderVoltage: If DC bus voltage is confirmed healthy but F004 persists, the board’s internal power supply rail (typically +15V/-8V for gate drive) may have collapsed. Measure at the board’s test points before condemning the DC bus capacitors.

Replacement Procedure — Field Checklist:

1. De-energize the drive and verify DC bus discharge below 50V DC using a calibrated meter. Do not rush this step — PowerFlex 700H frames retain charge for 5+ minutes.
2. Photograph all ribbon cable and connector orientations before disconnection. The 80190-780-01-R has multiple keyed connectors but field fatigue causes mis-seating errors.
3. Check the replacement board’s revision suffix (-R) matches your drive’s existing board. Mixing revisions on the same drive frame can cause firmware handshake failures at startup.
4. After board swap, perform a drive self-test (Parameter 365 – Drive Self Test on PF700) before reconnecting the motor. This validates gate drive output without load.
5. If the drive was running a custom parameter set, re-upload from your backup before running. A board swap does not reset drive parameters, but a firmware mismatch may trigger a parameter reset warning — do not ignore it.
6. Monitor DC bus ripple and output current waveform on first restart. A clean sine-approximated output confirms the new board is switching correctly.

Configuration Notes: The 80190-780-01-R does not carry user-configurable DIP switches. All gate timing and dead-band parameters are firmware-controlled via the main control board. Ensure your drive firmware version is compatible with the -R revision board — Rockwell’s compatibility matrix (available via TechConnect) should be consulted if you are running firmware older than v4.001.

Reliability in Harsh Conditions

PowerFlex drives get installed in places that are not kind to electronics. Foundry floors with airborne graphite dust. Offshore platforms with salt-laden humidity. Cement plants where ambient temperature swings 40°C between day and night shifts. The 80190-780-01-R was engineered for exactly these environments.

The PCB substrate meets IPC Class 2 industrial standards with conformal coating on critical signal traces — this is not a commercial-grade board repurposed for industrial use. The gate driver optocouplers are rated for 5,000 Vrms isolation, providing robust separation between the low-voltage control logic and the high-voltage IGBT switching domain. This isolation is what keeps your control system alive when a phase-to-phase fault occurs in the power section.

Vibration resistance is validated to IEC 60068-2-6 (sinusoidal) and IEC 60068-2-64 (random), covering the mechanical stress profiles found in compressor skids, pump stations, and mobile equipment. Connector retention force is specified to maintain contact integrity under continuous vibration — a detail that matters when your drive is mounted on a reciprocating compressor frame.

Thermal cycling endurance is validated across the full -40°C to +85°C storage range, meaning a board that sat in an unheated warehouse through a northern European winter will perform identically to one shipped directly from the factory. Every unit we dispatch has been stored in climate-controlled conditions and inspected for any signs of thermal stress, delamination, or solder joint fatigue before it leaves our facility.

Global Express Logistics

Our dispatch hub is in Xiamen, China — one of the most logistics-efficient export cities on the mainland, with direct DHL and FedEx gateway connections operating daily. When you confirm a PO before 14:00 CST, your board ships the same business day. No exceptions, no excuses.

Typical transit times from Xiamen:

• Southeast Asia (Singapore, Thailand, Vietnam): 2–3 business days via DHL Express
• Australia & New Zealand: 3–4 business days via FedEx International Priority
• Europe (Germany, UK, Netherlands, Poland): 3–5 business days via DHL Express Worldwide
• Middle East (UAE, Saudi Arabia, Qatar): 3–4 business days via FedEx
• North America (USA, Canada, Mexico): 4–5 business days via DHL or FedEx
• South America (Brazil, Chile, Colombia): 5–7 business days, subject to customs clearance

Every shipment includes full export documentation: commercial invoice with accurate HS code classification (HS 8537.10 or 8543.70 as applicable), packing list, certificate of origin, and a material safety data sheet where required. For customers in regulated industries (oil & gas, nuclear, defense-adjacent), we can provide additional traceability documentation on request.

We do not use consolidation freight or economy postal services for industrial components. Your board travels in ESD-safe anti-static packaging, inside a rigid outer carton with foam cushioning rated for the drop and vibration profiles of air freight handling. It arrives in the same condition it left our warehouse.

For customers with standing accounts, we offer DDP (Delivered Duty Paid) terms to eliminate customs clearance delays on your end. Contact us to discuss account setup if you have recurring procurement needs for Allen-Bradley or other automation components.
