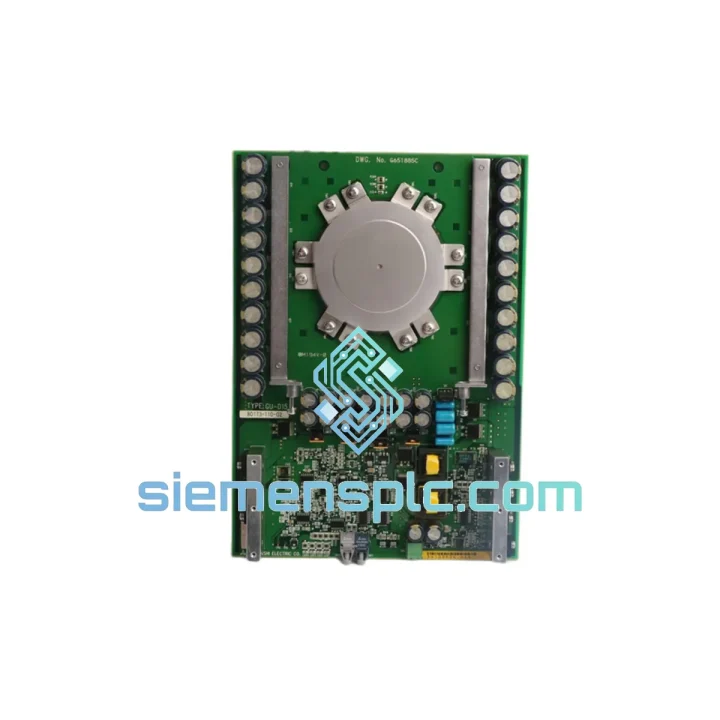

Allen-Bradley GU-D08 80173-109-01 SGCT Thyristor Module

GU-D08 80173-109-01 FGC800B-130DS/81001-450-52-R — Stop the Bleed: Every Minute of Drive Downtime Costs You Real Money

Your PowerFlex medium-voltage drive just tripped. The SGCT gate fault alarm is latched. The motor is dead. The line is stopped. You’ve already pulled the drive cabinet door and confirmed the GU-D08 thyristor module is the culprit — gate trigger test failed, leakage current out of spec. Now you need one thing: a verified replacement, on a plane today.

That’s exactly what we stock. The Allen-Bradley GU-D08 80173-109-01 FGC800B-130DS/81001-450-52-R Symmetrical Gate-Commutated Thyristor (SGCT) module is on our shelf in Xiamen. We ship DHL Express same day for orders confirmed before 15:00 CST. For a steel mill, a mining conveyor, or an oil & gas compressor station, that’s the difference between a 6-hour repair and a 3-day sourcing nightmare.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Fault Identification — What You’re Seeing Before You Pull the Module

The GU-D08 SGCT fails in predictable ways. In a PowerFlex MV drive, the most common pre-failure indicators are: a persistent Gate Driver Fault (fault code F004 or F012 depending on firmware revision), asymmetric phase current waveforms on the drive output, or a hard overcurrent trip that clears on reset but returns within seconds of re-enabling the drive. If the drive’s diagnostic screen shows a single-phase SGCT gate fault with the affected phase leg identified, you’re looking at this module.

Step-by-Step Replacement Procedure

1. De-energize and lock out. Full LOTO on the MV input. Verify zero voltage on the DC bus with a calibrated meter — the bus capacitors on these drives hold charge for 5–10 minutes after disconnect. Do not skip this.

2. Fiber-optic gate cables first. The FGC800B-130DS gate driver communicates via fiber. Label each fiber before disconnecting — the TX/RX orientation matters and is not always obvious from the cable routing. Swapping TX and RX will prevent gate firing and cause a no-run condition that looks like a second fault.

3. Thermal interface. The GU-D08 mounts to a water-cooled or air-cooled heat sink depending on your drive configuration. Clean the old thermal compound completely. Apply a thin, even layer of fresh thermal paste (Shin-Etsu X-23 or equivalent). Torque the mounting bolts to spec — typically 4–6 N·m. Uneven clamping pressure causes hot spots and premature failure of the replacement unit.

4. Snubber circuit inspection. Before installing the new SGCT, check the snubber capacitor and resistor on the same phase leg. A failed SGCT often takes the snubber with it, or the snubber failure caused the SGCT to fail. Replacing the thyristor without checking the snubber is the most common reason a second unit fails within days.

5. Firmware compatibility. The GU-D08 with gate driver FGC800B-130DS is compatible with PowerFlex MV firmware revisions 3.x and 4.x. If your drive is running firmware 2.x, a firmware update is required before the new module will gate correctly. Confirm your drive’s firmware version via the HIM or DriveExplorer before powering up.

6. Gate trigger verification. After installation, use the drive’s built-in SGCT test routine (accessible via the HIM under Diagnostics → Power Structure Test) before enabling the drive under load. This test fires each SGCT individually and confirms gate response without putting the motor at risk.

7. First run under load. Bring the drive up at reduced speed (20–30% of rated) and monitor phase currents for symmetry. Any imbalance greater than 5% between phases warrants immediate investigation before running at full load.

Common Fault Codes — GU-D08 Related

• F004 — SGCT Gate Fault: Gate driver not receiving confirmation pulse from thyristor. Check fiber connections first, then gate driver power supply, then the SGCT itself.
• F012 — Power Structure Fault: Broad fault covering multiple power structure issues. Run the SGCT test routine to isolate to a specific phase leg.
• F031 — DC Bus Overvoltage during decel: Can be caused by a partially failed SGCT that is not commutating cleanly. Often misdiagnosed as a braking resistor issue.
• F047 — Ground Fault: If this appears immediately after an SGCT replacement, check that the new module’s mounting hardware is not creating an unintended ground path through the heat sink.

Reliability in Harsh Conditions

The GU-D08 SGCT module is not a component designed for a climate-controlled server room. It was engineered for the floor of a steel mill, the deck of an offshore platform, and the pump house of a mine site. The gate-commutated thyristor die itself is hermetically sealed within a press-pack ceramic housing — there is no wire bonding to fatigue, no epoxy encapsulant to crack under thermal cycling. The press-pack construction maintains consistent contact pressure across the full operating temperature range, which is why these modules survive the thermal shock of rapid load cycling that destroys conventional module-style thyristors.

The FGC800B-130DS gate driver board is conformal-coated from the factory, providing protection against condensation, industrial dust, and airborne contaminants. In environments with high humidity — coastal installations, paper mills, food processing — this coating is the difference between a 5-year service life and a 6-month failure. Our stock is stored in a climate-controlled warehouse with controlled humidity and ESD protection. Every unit ships in anti-static packaging with desiccant. We do not ship bare modules in bubble wrap.

Vibration resistance is inherent to the press-pack design. Unlike wire-bonded modules, there are no internal connections to fatigue under the continuous vibration loads present in compressor stations, pump houses, and rolling mill environments. Field data from PowerFlex MV installations in mining applications consistently shows the GU-D08 outlasting the surrounding drive electronics when properly installed and maintained.

Global Express Logistics

Our dispatch warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct DHL and FedEx gateway access. For urgent breakdown shipments, this matters: Xiamen has daily direct flights to major hubs in Europe, the Middle East, Southeast Asia, and North America, which means your part is not sitting in a secondary hub waiting for a connecting flight.

Standard Express Timeline (DHL/FedEx Priority):

• Southeast Asia (Singapore, Thailand, Malaysia, Indonesia): 2–3 business days
• Middle East (UAE, Saudi Arabia, Qatar): 3–4 business days
• Europe (Germany, UK, Netherlands, Poland): 3–5 business days
• North America (USA, Canada, Mexico): 4–6 business days
• Australia / New Zealand: 3–5 business days
• South America (Brazil, Chile, Colombia): 5–7 business days

Every shipment includes a full commercial invoice, packing list, and certificate of origin — the documents your customs broker needs to clear the shipment without delays. For countries with import restrictions on electronic components, we can provide additional documentation including HS code declarations and material safety data. We have shipped to 70+ countries and understand the documentation requirements for each major market.

For genuine breakdown emergencies, contact us via WhatsApp before placing the order. We can confirm stock, generate a pro-forma invoice, and have the shipment booked with DHL within 2 hours of payment confirmation. We do not have a 24-hour processing queue for urgent orders — we treat breakdown shipments as breakdown shipments.
