Allen-Bradley SP-142129 135232-04 Power Supply Kit – SLC 500

Allen-Bradley SP-142129 / 135232-04 Power Supply Kit: Backbone of SLC 500 Control Architecture

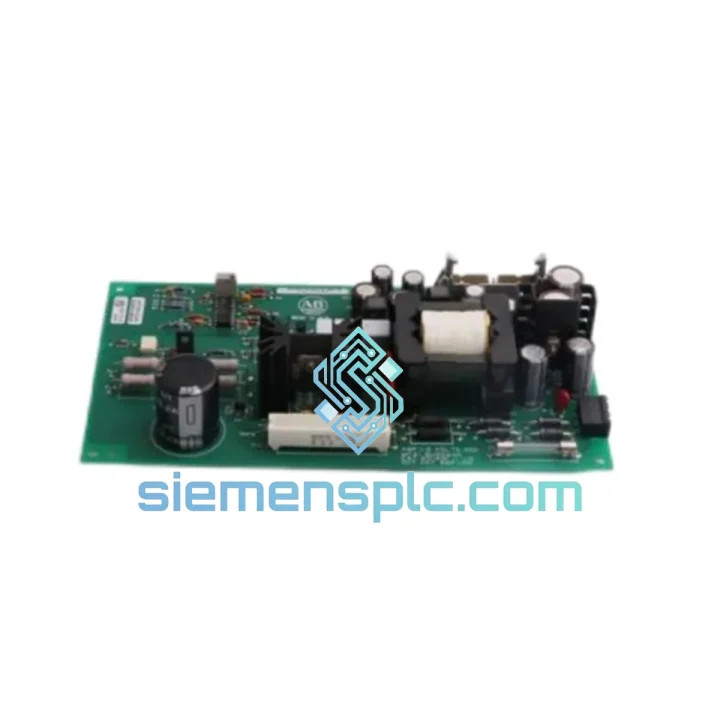

The Allen-Bradley SP-142129 (assembly reference 135232-04) is a factory-original power supply kit engineered for deployment within Rockwell Automation SLC 500 series programmable logic controller chassis. Unlike generic switching power supplies adapted for industrial use, this unit is purpose-built to interface directly with the 1746 backplane bus, delivering regulated DC rails with the transient suppression characteristics and hold-up time margins that deterministic ladder-logic execution demands. In a control loop where scan-cycle jitter directly affects process output quality — whether in conveyor sequencing, batch dosing, or motion coordination — power supply stability is not a peripheral concern. It is a foundational constraint.

The SP-142129 kit designation indicates a complete spare assembly: all sub-components are pre-matched at the factory, eliminating the field-level risk of tolerance stack-up that arises when individual capacitors, inductors, or rectifier bridges are sourced and substituted independently. Procurement teams managing MRO inventories for aging SLC 500 installations will find this kit the lowest-risk path to restoring a faulted chassis to full operational status without triggering a re-validation cycle on the host system.

📩 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The SLC 500 backplane operates on a parallel I/O bus architecture where the power supply module occupies a dedicated slot and feeds regulated voltage rails to all installed I/O modules simultaneously. The SP-142129 assembly is designed around a forward-converter topology — a switching architecture chosen for its efficiency at the power levels typical of a populated 1746 chassis (4-slot through 13-slot configurations) and its inherent ability to provide galvanic isolation between the AC input stage and the DC output rails feeding logic circuits.

A critical design element in this kit is the hold-up time specification. During a momentary AC line dropout — a common occurrence in industrial environments with heavy motor loads on shared distribution panels — the output capacitor bank must sustain regulated DC output long enough for the SLC 500 CPU to complete its current scan cycle and assert a power-loss interrupt, allowing the application program to execute an orderly shutdown routine and preserve data in battery-backed SRAM. Insufficient hold-up time results in a hard fault rather than a controlled shutdown, which in process industries can mean uncontrolled actuator states at the moment of power loss.

The assembly also incorporates transient voltage suppression (TVS) on the AC input stage, addressing the IEC 61000-4-5 surge immunity requirement. Industrial power distribution networks routinely carry switching transients from variable-frequency drives, contactors, and transformer inrush events. Without adequate TVS clamping, these transients propagate into the converter’s primary winding and degrade the gate oxide of the switching FETs over time — a failure mode that manifests as intermittent output voltage droop before catastrophic failure. The factory-matched component set in the SP-142129 kit ensures that TVS clamp voltage, converter switching frequency, and output filter corner frequency are all co-optimized, a relationship that cannot be reliably replicated with field-sourced individual components.

EMC performance is further supported by the common-mode choke on the AC input, which attenuates conducted emissions back onto the supply network and prevents the switching converter from becoming a noise source that degrades analog signal integrity on 4–20 mA current loops sharing the same cabinet ground plane.

System Integration Benefits

• Deterministic Scan-Cycle Power Integrity: Regulated output rails with low ripple ensure the SLC 500 CPU clock and memory subsystems operate within their specified voltage windows, preventing scan-cycle elongation caused by processor brown-out conditions.
• Zero Re-Validation Overhead: As an OEM spare kit, SP-142129 carries the same UL and CE certification footprint as the original installed unit. Replacing like-for-like does not trigger a re-qualification event under IEC 62061 or ISO 13849 functional safety assessments.
• Backplane Bus Compatibility: The output impedance profile of this supply is matched to the 1746 backplane bus capacitance. Third-party supplies with different output impedance can cause bus voltage oscillation under step-load conditions when multiple digital output modules switch simultaneously.
• Predictable Thermal Envelope: Factory-specified derating curves allow maintenance engineers to calculate maximum ambient operating temperature for a given chassis population without empirical testing, supporting planned preventive maintenance scheduling.
• Diagnostic Transparency: The power supply’s fault output signal interfaces directly with the SLC 500 CPU’s power-loss input, enabling the application program to log a timestamped power event to the fault table — providing maintenance teams with actionable data rather than an unexplained controller fault.
• Reduced Spare Parts Complexity: A single kit SKU covers the complete power supply assembly. Maintenance stores do not need to stock individual sub-components (capacitors, rectifiers, transformers) with their associated obsolescence and cross-reference management burden.
• Surge and Transient Resilience: Input-stage TVS and common-mode filtering protect downstream logic from conducted disturbances, reducing nuisance faults on analog I/O modules that share the chassis power rail.
• Long-term Availability Support: Stocking genuine OEM spare kits extends the serviceable life of SLC 500 installations beyond the point where the platform reaches end-of-life status with the OEM, deferring costly migration projects.

Quality Assurance & Global Logistics

Every unit of the Allen-Bradley SP-142129 / 135232-04 supplied through siemensplc.com is sourced exclusively from authorized distribution channels and verified OEM surplus inventories. Each kit undergoes incoming inspection against the original Rockwell Automation part specification before entering our warehouse stock. For refurbished units, a full functional test under load is performed, and a test report is available upon request.

Anti-counterfeit verification is a non-negotiable step in our intake process. Label authentication, date-code cross-referencing, and physical inspection of PCB markings are performed on every unit. We do not source from unverified grey-market channels.

Our logistics hub in Xiamen, China provides direct access to major international freight carriers including DHL Express, FedEx International Priority, and UPS Worldwide Expedited. Standard export documentation — commercial invoice, packing list, and certificate of conformance — is prepared for every shipment. For customers in regions with specific import requirements, we can provide HS code documentation and country-of-origin certificates to support customs clearance. Emergency replacement orders with same-day dispatch are available for in-stock units when orders are confirmed before the daily freight cutoff. A 12-month warranty covers all units against manufacturing defects and premature failure under normal operating conditions.
