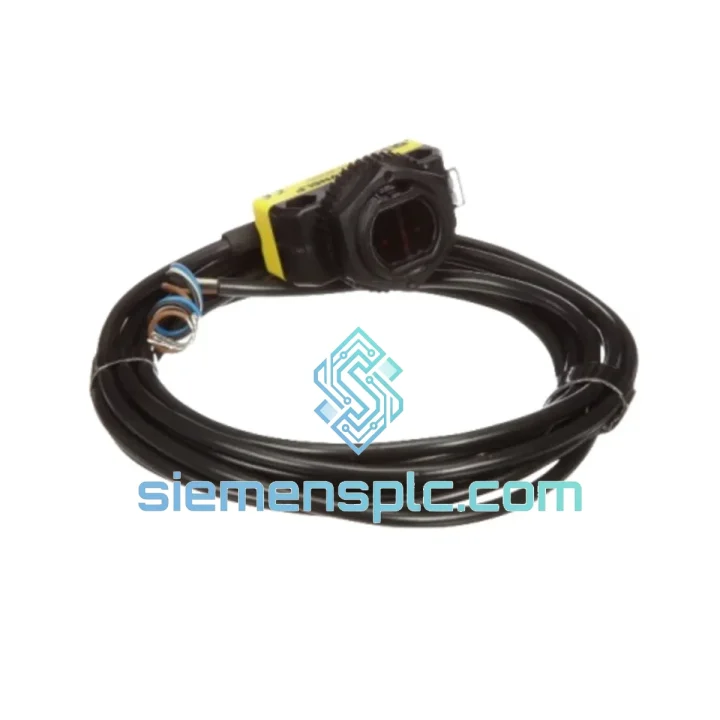

BANNER QS18VN6LP Photoelectric Sensor – QS18 MiniSight Series

BANNER QS18VN6LP – Diffuse-Mode Photoelectric Sensor in Industrial Detection Circuits

The QS18VN6LP occupies a well-defined role in discrete sensing architectures: it converts the physical presence or absence of a target object into a deterministic NPN switching signal, feeding directly into PLC digital input modules without intermediate signal conditioning. Operating on the diffuse (proximity) principle, the sensor emits a 660 nm visible red LED beam and evaluates the intensity of reflected light against an internally calibrated threshold. When reflected energy exceeds that threshold, the NPN open-collector output is driven LOW, asserting a logic state that the downstream controller interprets as object-detected. This single-ended, sink-type output topology is directly compatible with IEC 61131-2 Type 1 and Type 3 digital inputs, eliminating the need for external pull-up networks in most 24 V DC PLC architectures.

The sensing range is field-adjustable via an integrated multi-turn potentiometer, allowing the operator to set the effective detection window anywhere from approximately 30 mm to 300 mm. This adjustability is critical in applications where background suppression is required — by reducing the set range below the distance to a fixed background surface, the sensor ignores stationary structure and responds only to foreground targets. The 660 nm wavelength is selected for its high reflectivity on matte white and light-gray surfaces, while remaining within the visible spectrum for alignment verification without instrumentation.

The M12 6-pin Euro-style quick-disconnect interface standardizes field wiring and enables hot-swap replacement without rewiring terminal blocks. Pin assignments follow the BANNER standard: Pin 1 (Brown) carries +V DC supply, Pin 3 (Blue) is the 0 V reference, and Pin 4 (Black) carries the NPN switching output. The remaining pins support Light-ON / Dark-ON mode selection, giving a single part number the flexibility to serve both normally-open and normally-closed logic requirements in the same installation.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The QS18VN6LP’s internal signal chain begins at the LED driver stage, where a regulated constant-current circuit maintains emitter intensity independent of supply voltage fluctuations across the 10–30 V DC operating range. This voltage-agnostic drive architecture prevents false triggering caused by supply rail sag during motor starts or solenoid switching events — a common failure mode in sensors with unregulated emitter drive.

The receiver photodiode feeds into a transimpedance amplifier (TIA) stage that converts photocurrent to voltage with a bandwidth matched to the 500 Hz maximum switching frequency. A synchronous demodulation circuit then compares the received signal against the modulated LED carrier frequency, rejecting ambient light interference from fluorescent fixtures, arc welding, and direct sunlight up to approximately 10,000 lux. This demodulation approach is fundamentally more robust than simple threshold comparators used in lower-cost sensors, which are susceptible to ambient light saturation.

The threshold comparator references the potentiometer-set voltage divider, establishing the detection boundary. Hysteresis is built into the comparator — typically 15–20% of the set threshold — to prevent output chatter when a target edge is at the detection boundary. This hysteresis band is fixed in hardware, not software-configurable, ensuring deterministic behavior across temperature and supply voltage variation.

The NPN output stage uses a Darlington transistor configuration rated at 100 mA continuous collector current with integrated flyback protection for inductive loads. The output is short-circuit protected via a self-resetting PTC thermistor, which limits fault current without requiring manual reset — a practical advantage in automated lines where sensor faults must self-clear without technician intervention.

EMC compliance is achieved through a combination of internal filtering on the supply pins (common-mode choke + X2 capacitor network) and the ABS housing’s inherent non-conductivity, which eliminates ground loop paths through the sensor body. The M12 connector’s metal shell provides a low-impedance shield termination point when used with shielded cordsets, further attenuating radiated interference in high-noise environments such as variable-frequency drive (VFD) enclosures.

System Integration Benefits

• Direct PLC Compatibility: NPN open-collector output interfaces natively with IEC 61131-2 Type 1 and Type 3 sink inputs on Siemens S7-1200/1500, Allen-Bradley CompactLogix, Mitsubishi MELSEC, and Omron NX/NJ series without signal converters.
• Deterministic Response Latency: ≤ 1 ms switching time ensures the sensor does not introduce measurable latency into control loops operating at scan cycles of 2 ms or faster, preserving system determinism.
• Single-SKU Output Flexibility: Light-ON / Dark-ON selection via pin configuration eliminates the need to stock separate normally-open and normally-closed variants, reducing spare parts inventory by 50% for this sensor type.
• Wide Supply Voltage Tolerance: 10–30 V DC operation allows deployment on both 12 V DC and 24 V DC bus architectures without hardware modification, simplifying multi-voltage panel designs.
• IP67 Wash-Down Capability: Sealed to IEC 60529 IP67, the sensor withstands temporary immersion to 1 m depth for 30 minutes, making it suitable for food-grade wash-down zones and coolant-mist environments without additional enclosures.
• Field-Adjustable Range: The integrated potentiometer allows in-situ range calibration without removing the sensor from its mounting bracket, reducing commissioning time and eliminating the need for sensor repositioning during setup.
• Visible Alignment Beam: The 660 nm red LED is visible to the naked eye, enabling single-technician alignment and verification without a separate optical alignment tool or second operator.
• M12 Hot-Swap Architecture: Quick-disconnect M12 interface allows sensor replacement in under 60 seconds without tools or rewiring, minimizing mean time to repair (MTTR) on production lines where downtime cost is measured in units per minute.
• Extended Temperature Range: −40 °C to +70 °C operating envelope covers cold-storage conveyor applications and high-ambient-temperature press rooms within a single part number.
• Self-Resetting Short-Circuit Protection: PTC-based output protection eliminates manual reset after wiring faults, reducing maintenance interventions during commissioning and fault recovery.

Quality Assurance & Global Logistics

Every QS18VN6LP unit supplied through siemensplc.com is sourced from authorized BANNER Engineering distribution channels with full supply chain traceability. Incoming inspection at our Xiamen facility covers label authenticity verification, date code cross-reference against BANNER’s production records, and a functional output test under controlled 24 V DC supply conditions. Units that do not pass all three inspection stages are quarantined and returned — no exceptions.

Original BANNER packaging is preserved intact through the inspection process. Each unit ships in the factory anti-static bag with the original BANNER label, barcode, and date code visible. Supporting documentation — including the BANNER original datasheet, CE Declaration of Conformity, and RoHS compliance certificate — is available upon request and can be included with the shipment at no additional charge.

Logistics from Xiamen, China to global destinations are handled via DHL Express, FedEx International Priority, and UPS Worldwide Expedited, with typical transit times of 3–5 business days to Europe and North America. For urgent requirements, same-day dispatch is available for orders confirmed before 14:00 CST. Domestic China delivery is fulfilled via SF Express with next-day coverage to major industrial zones. All shipments include a commercial invoice, packing list, and tracking number issued within 2 hours of dispatch.

A 12-month replacement warranty covers manufacturing defects from the date of invoice. Warranty claims are processed within 3 business days of receipt of the returned unit, with a replacement shipped immediately upon defect confirmation. No restocking fees apply to warranty returns.
