Bently Nevada 129957-085-057-05 Extension Cable – 3300 XL Series

Bently Nevada 129957-085-057-05 Extension Cable — Signal Interconnect Architecture for 3300 XL Proximity Transducer Systems

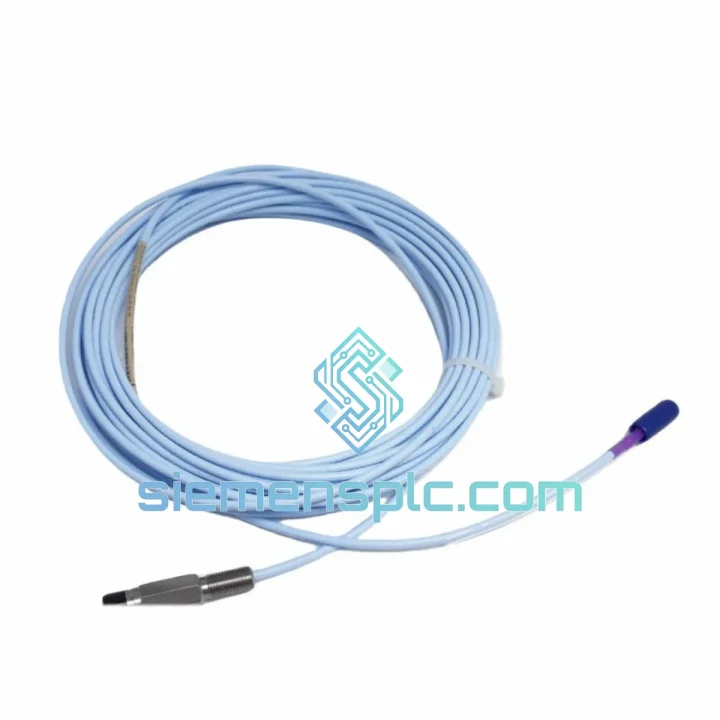

The Bently Nevada 129957-085-057-05 is a 5-metre coaxial extension cable engineered as an integral component of the 3300 XL Proximity Transducer System. Its function within the measurement loop is not passive: it forms the calibrated impedance bridge between the eddy-current proximity probe and the Proximitor® sensor driver. Any deviation in cable capacitance, shield continuity, or connector geometry directly shifts the gap voltage output and invalidates the system’s linear measurement range. This part number is therefore a precision instrument component, not a generic interconnect.

In rotating machinery protection architectures governed by API 670, the extension cable is the most mechanically stressed element in the signal chain. It traverses machine casings, bearing pedestals, and conduit runs subject to continuous vibration, thermal cycling, and chemical exposure. The 129957-085-057-05 is designed to maintain electrical and mechanical integrity across these conditions for the service life of the monitored asset.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 3300 XL proximity transducer system operates on the eddy-current principle: the probe tip generates a high-frequency oscillating magnetic field (typically 1 MHz range), and the Proximitor® sensor demodulates the loading effect of the target conductor to produce a DC gap voltage proportional to probe-to-shaft distance. The extension cable sits electrically between these two active elements and must present a precisely defined capacitive load to the oscillator circuit.

The 129957-085-057-05 achieves this through a controlled-geometry coaxial construction. The inner conductor diameter, dielectric constant of the insulation, and outer shield dimensions are held to tolerances that maintain the cable’s contribution to total system capacitance within the calibration envelope. Bently Nevada publishes system sensitivity as –7.87 V/mm (–200 mV/mil) for standard 8 mm probes; this figure is valid only when the matched probe, extension cable, and Proximitor® are used as a calibrated set. Substituting a non-OEM cable with different capacitance per unit length shifts the oscillator operating point and produces a nonlinear or offset gap voltage — a failure mode that is difficult to detect without a calibration bench.

The double-shield construction addresses two distinct EMI threat vectors. The inner braid provides low-impedance return path continuity and suppresses differential-mode interference from adjacent power cables. The outer foil shield, terminated at the Proximitor® end only (single-point grounding), prevents ground-loop currents from injecting common-mode noise into the measurement. In turbomachinery installations where variable-frequency drives, excitation systems, and high-current bus bars are co-located, this shielding architecture is the primary defense against false vibration alarms and monitor faults.

The fluoropolymer jacket provides resistance to hydrocarbon lubricants, steam condensate, and cleaning solvents encountered in turbine enclosures. Its low coefficient of friction also reduces abrasion wear in conduit runs subject to thermal expansion cycling. The connector terminations are crimped and potted to OEM specification, maintaining IP-rated ingress protection at the probe junction and preventing moisture-induced impedance shifts at the connector interface.

System Integration Benefits

• Calibration Traceability Preserved: Using the OEM extension cable maintains the factory-calibrated sensitivity of the probe/driver set, eliminating the need for field recalibration after cable replacement and preserving API 670 compliance documentation.
• Zero Impedance Mismatch: Controlled capacitance per unit length ensures the Proximitor® oscillator operates within its designed load range, preventing sensitivity drift and nonlinearity at the extremes of the measurement gap.
• Deterministic Alarm Thresholds: With a verified signal chain, vibration alarm and danger setpoints derived from baseline data remain statistically valid. An impedance-mismatched cable introduces systematic offset that invalidates historical trend data.
• Reduced Diagnostic Ambiguity: When a monitor flags a fault, maintenance engineers can isolate the cable as a variable only if it is known-good OEM hardware. Non-OEM cables introduce an uncontrolled variable that extends mean time to repair.
• EMC Compliance in Classified Areas: The double-shield architecture supports installation alongside IS-rated Proximitor® sensors in IEC 60079 classified zones without additional shielding conduit in many configurations.
• Mechanical Durability in High-Vibration Environments: Crimped and potted connectors resist connector-body fatigue failures caused by continuous low-amplitude vibration transmitted through machine structures — a common failure mode with field-assembled cable assemblies.
• Plug-and-Play Replacement: Identical connector geometry and cable impedance allow hot-swap replacement during planned outages without monitor reconfiguration, reducing maintenance window duration.
• Long-Term Spare Parts Availability: Stocking the 129957-085-057-05 as a critical spare eliminates unplanned downtime risk from cable failure. siemensplc.com maintains inventory for immediate dispatch to minimize asset exposure time.

Quality Assurance & Global Logistics

Every unit of the Bently Nevada 129957-085-057-05 supplied by siemensplc.com is sourced through verified industrial distribution channels with full OEM traceability. Prior to dispatch, each cable assembly undergoes a structured inspection protocol:

• Visual inspection of connector bodies, jacket, and labeling against OEM datasheet dimensions and markings
• Continuity verification of inner conductor and shield braid end-to-end
• Shield isolation check to confirm single-point grounding integrity is not compromised by jacket damage
• Anti-static packaging with tamper-evident sealing and lot-number labeling for traceability
• Commercial invoice and packing list prepared to buyer’s Incoterms (EXW, FOB Xiamen, CIF)

Shipments originate from Xiamen, China. Standard international transit times are 3–7 business days via DHL Express or FedEx International Priority to most destinations in Southeast Asia, the Middle East, Europe, and the Americas. Expedited same-day dispatch is available for orders confirmed before 14:00 CST. HS code classification and export documentation are handled in-house. We do not supply refurbished, reconditioned, or grey-market units. Authenticity is guaranteed or full replacement is provided.
