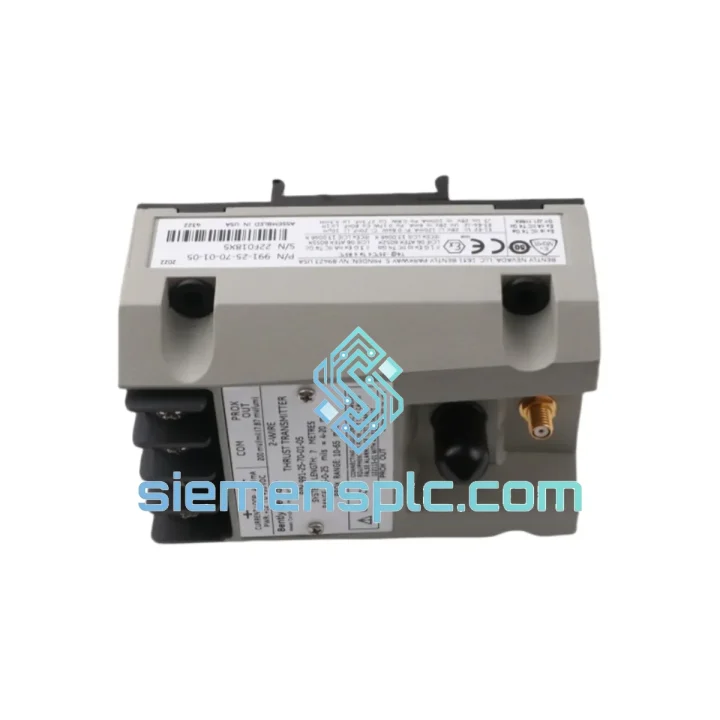

Bently Nevada 991-25-70-01-01 Proximity Probe Extension Cable – 3300 XL Series

Bently Nevada 991-25-70-01-01 — Signal Transmission Architecture in Eddy-Current Proximity Measurement Loops

The Bently Nevada 991-25-70-01-01 is a 7.62 m (25 ft) coaxial extension cable engineered for the 3300 XL Series eddy-current proximity measurement system. Its function within the measurement loop is not passive: the extension cable forms the second impedance-matched segment of a three-component transmission line — probe cable, extension cable, and Proximitor® sensor — whose aggregate electrical length is factory-calibrated to produce a defined DC gap voltage output. Any deviation in cable length, characteristic impedance, or dielectric constant directly shifts the Proximitor’s output curve, introducing systematic measurement error that cannot be corrected through monitor scaling alone.

In rotating machinery protection applications governed by API 670 and ISO 13373, the extension cable must maintain a characteristic impedance of 95 Ω ± 5 Ω and a capacitance per unit length consistent with the Proximitor’s calibration dataset. The 991-25-70-01-01 meets these requirements as an OEM-specified component, ensuring that the eddy-current oscillator within the Proximitor operates at its designed quiescent frequency without load-induced drift. This is particularly critical in high-speed turbomachinery where shaft radial displacement measurements must resolve to sub-micron levels at rotational speeds exceeding 10,000 RPM.

The cable is deployed in the signal path between the 3300 XL 8mm Proximity Probe and the 3300 XL Proximitor Sensor, bridging the physical gap imposed by machinery enclosure geometry, bearing housing dimensions, and sensor mounting constraints. The 25 ft length is the most widely specified extension in steam turbine, gas turbine, and centrifugal compressor installations where the Proximitor is mounted on the bearing housing pedestal or a nearby junction box, while the probe tip is positioned at the shaft journal.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 991-25-70-01-01 operates as a passive but electrically critical element within the Bently Nevada eddy-current measurement chain. The Proximitor sensor drives a high-frequency oscillator — nominally at 1.0 MHz — through the coaxial cable to the probe tip coil. The probe coil generates an alternating magnetic field; when a conductive target (shaft) enters the field, eddy currents are induced, loading the oscillator and reducing its amplitude. The Proximitor demodulates this amplitude change into a DC voltage proportional to the gap distance, with a nominal sensitivity of –7.87 V/mm (–200 mV/mil).

The extension cable’s role in this circuit is to maintain transmission line integrity between the Proximitor’s oscillator output and the probe coil. The 95 Ω characteristic impedance is not arbitrary — it is matched to the probe coil’s reactive impedance at 1.0 MHz to minimize reflections that would corrupt the amplitude modulation signal. A cable with incorrect impedance introduces standing waves on the transmission line, effectively adding a frequency-dependent error term to the gap voltage output that varies with temperature and cable routing geometry.

The armored jacket construction addresses two distinct failure modes common in rotating machinery environments: mechanical abrasion from vibrating structures and cable trays, and chemical degradation from lubricating oil mist, steam condensate, and cleaning solvents. The inner dielectric is selected for low dissipation factor (tan δ < 0.001 at 1 MHz), which preserves signal amplitude over the full 7.62 m length without requiring active amplification in the cable run.

From an EMC perspective, the coaxial geometry provides inherent shielding against radiated interference from variable-frequency drives, high-current bus bars, and ignition systems common in turbomachinery enclosures. The shield continuity through the factory-terminated connectors is critical — field-repaired connectors that compromise shield grounding introduce common-mode noise that manifests as elevated 1× or 2× vibration components in the monitor output, leading to nuisance alarms or masked fault signatures.

System Integration Benefits

• Calibration Traceability: As an OEM-specified component, the 991-25-70-01-01 is included in the Proximitor’s factory calibration dataset, eliminating the need for field recalibration when replacing a like-for-like cable in an existing installation.
• API 670 Compliance Preservation: Substituting a non-OEM cable of equivalent length but different impedance or dielectric specification invalidates the system’s API 670 compliance documentation. The 991-25-70-01-01 maintains the certified system configuration.
• Deterministic Gap Voltage Output: The matched impedance ensures the Proximitor’s output linearity specification of ±0.5% full scale is maintained across the full operating temperature range, supporting accurate alarm and danger setpoint enforcement.
• Reduced Diagnostic Ambiguity: When a machinery protection system generates unexpected vibration readings, a known-good OEM extension cable eliminates the cable as a variable, accelerating root-cause analysis and reducing mean time to repair (MTTR).
• SIL Loop Integrity: In Safety Instrumented Systems (SIS) where the proximity measurement loop contributes to a SIL 1 or SIL 2 function, the extension cable must be a documented, traceable component. The 991-25-70-01-01 satisfies this traceability requirement.
• Plug-and-Play Replacement: Factory-terminated connectors with defined torque specifications allow field replacement without specialized tooling, reducing maintenance downtime during planned outages.
• Thermal Stability: The low-loss dielectric maintains consistent capacitance per unit length (±2%) across the –40 °C to +85 °C operating range, preventing temperature-induced drift in the gap voltage baseline that would require periodic zero-point correction.
• Multi-Monitor Compatibility: The 3300 XL probe system, including this extension cable, is compatible with both the legacy 3300 Series monitors and the current 3500 Series rack via appropriate input modules, protecting the investment in existing probe installations during monitor upgrades.
