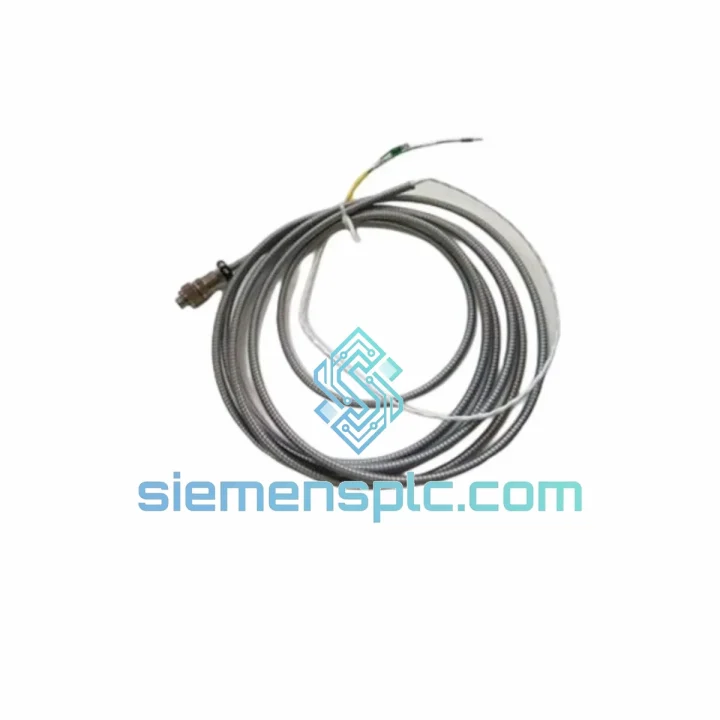

Bently Nevada 84661-10 Velomitor Interconnect Cable – 3300 XL Series

Bently Nevada 84661-10 Velomitor Interconnect Cable — Signal Integrity at the Core of Rotating Machinery Protection

In continuous machinery protection architectures, the interconnect cable is not a passive conductor — it is an active participant in signal fidelity. The Bently Nevada 84661-10 Velomitor Interconnect Cable is the factory-specified transmission link between the Velomitor® piezo-velocity sensor and the 3300 XL Series velocity monitor. Its role is to deliver a low-noise, impedance-matched analog velocity signal across the full operating bandwidth of the sensor, without introducing ground loops, capacitive loading artifacts, or EMI-induced baseline drift that would corrupt the vibration waveform before it reaches the monitor’s signal conditioning stage.

The Velomitor® sensor outputs a velocity-proportional voltage signal in the range of ±5 V, with a flat frequency response from approximately 2 Hz to 1,000 Hz (–3 dB points). The 84661-10 cable must preserve this bandwidth without phase distortion or amplitude roll-off across its rated length. Any impedance discontinuity at the connector interface or capacitive coupling between conductors introduces a low-pass filter effect that attenuates high-frequency vibration components — precisely the frequency range where early-stage bearing defects and blade-pass events manifest. The 84661-10 is engineered to eliminate this failure mode through controlled-impedance construction and OEM-matched connector terminations.

The 3300 XL platform is deployed in API 670-compliant machinery protection loops on gas turbines, centrifugal compressors, steam turbines, and large motor-driven equipment across oil & gas, power generation, and petrochemical facilities worldwide. In these environments, the interconnect cable operates inside turbomachinery enclosures where ambient temperatures can reach 85°C, hydrocarbon vapors are present, and electrical noise from variable-frequency drives and high-current bus bars generates broadband EMI in the 10 kHz–1 MHz range. The 84661-10 is constructed to maintain signal integrity under these conditions without derating.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 84661-10 addresses three distinct hardware-level failure modes that generic cables cannot reliably prevent in high-stakes rotating machinery environments:

1. Capacitive Loading and Bandwidth Compression. The Velomitor® sensor’s output stage has a defined source impedance. When cable capacitance is excessive — a common characteristic of unspecified industrial cables — it forms an RC low-pass filter with the sensor output impedance. At 1,000 Hz, a cable with 150 pF/m capacitance over a 10-meter run introduces measurable attenuation. The 84661-10 uses a low-capacitance dielectric formulation to keep the cable’s distributed capacitance within the sensor manufacturer’s specified load limit, preserving the full velocity measurement bandwidth.

2. EMC Shield Termination and Ground Loop Suppression. In turbomachinery installations, the cable shield must be terminated at one end only — typically at the monitor end — to prevent ground loop currents from flowing through the shield conductor and inducing a common-mode noise voltage that appears as a false vibration signal. The 84661-10’s connector assembly is designed with a defined shield termination scheme that matches the 3300 XL monitor’s input circuit topology. This single-point grounding architecture maintains common-mode rejection ratio (CMRR) at the monitor’s differential input stage, which is critical for rejecting the 50/60 Hz power-frequency interference present in all industrial electrical environments.

3. Connector Contact Resistance Stability. Intermittent contact resistance at the sensor-to-cable interface introduces a time-varying series resistance in the signal path. Because the Velomitor® sensor is a voltage-output device, this resistance creates a voltage divider effect that modulates the signal amplitude — producing a spurious low-frequency amplitude modulation that the monitor’s alarm logic may interpret as a real vibration event. The 84661-10 uses gold-plated contact pins with a defined insertion force specification to maintain contact resistance below 10 mΩ over the connector’s rated mating cycles, eliminating this failure mode.

The cable jacket material is selected for resistance to hydrocarbon fluids, turbine lubricating oils, and cleaning solvents commonly used in turbomachinery maintenance — preventing jacket swelling or plasticizer migration that would alter the cable’s dielectric properties over time.

System Integration Benefits

• API 670 Loop Integrity Preserved: Using the OEM-specified cable maintains the certified signal path from sensor to monitor, ensuring the protection loop meets the functional safety requirements of API 670 without requiring re-validation of the cable segment.
• Zero-Modification Installation: Factory-terminated connectors at both ends eliminate field crimping and soldering operations, removing a significant source of installation-induced signal degradation and reducing commissioning time per monitoring point.
• Deterministic Alarm Response: A clean, low-noise signal path ensures that the 3300 XL monitor’s alarm comparator operates on true vibration data, not noise-floor artifacts — reducing nuisance trips and improving the reliability of protective shutdown decisions.
• Diagnostic Transparency: High signal fidelity enables accurate spectral analysis in System 1® or Orbit® software. Frequency-domain features such as 1× running speed, sub-synchronous instability, and blade-pass harmonics are resolved without noise masking, supporting predictive maintenance decisions.
• Thermal Stability Across Operating Range: The cable’s electrical parameters — capacitance, resistance, and shield coverage — remain within specification from –40°C to +85°C, ensuring consistent monitor calibration across seasonal ambient temperature variation and turbine load cycling.
• Reduced Maintenance Intervention: OEM connector durability ratings support the full planned maintenance interval of the machinery protection system without cable replacement, lowering lifecycle maintenance cost per monitoring channel.
• Multi-Hazardous-Area Compatibility: The cable construction is compatible with installation in classified hazardous areas (Zone 1/Zone 2 or Division 1/Division 2) when used within the certified Bently Nevada 3300 XL system boundary, without requiring additional cable barriers.
• Interchangeability Across 3300 XL Installations: Standardized OEM part number ensures direct interchangeability across all 3300 XL velocity monitoring channels in a facility, simplifying spare parts inventory management and reducing the risk of incorrect cable substitution during emergency maintenance.

Quality Assurance & Global Logistics

Every 84661-10 unit supplied through siemensplc.com is sourced from verified Bently Nevada (Baker Hughes) authorized distribution channels or certified OEM surplus inventory. Each unit undergoes a structured pre-shipment inspection protocol: visual examination of connector bodies for mechanical damage, jacket inspection for abrasion or chemical attack, continuity verification across all conductors, and shield integrity testing to confirm optical coverage is within specification. Refurbished units additionally undergo insulation resistance measurement at 500 V DC to verify dielectric integrity before dispatch.

Shipments originate from Xiamen, China — a major international logistics hub with direct freight connections to Singapore, Dubai, Rotterdam, Los Angeles, and Houston. Standard international shipments are dispatched within 3–5 business days for in-stock units. Emergency sourcing and expedited air freight are available for unplanned outage scenarios. Export documentation — commercial invoice, packing list, certificate of origin, and test records — is prepared for all international shipments. Anti-static, moisture-barrier packaging with foam cushioning protects connector integrity during transit.
