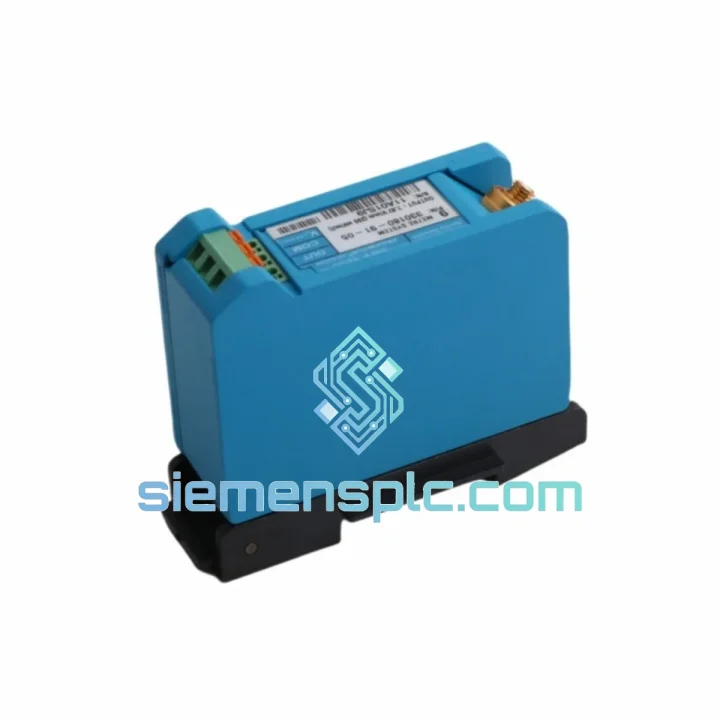

Bently Nevada 138493-01 Proximity Transducer – 3300 XL Series

Bently Nevada 138493-01 — Non-Contact Shaft Displacement Measurement in Critical Rotating Machinery

The Bently Nevada 138493-01 is a factory-calibrated, 50 mm extended-range proximity transducer system within the 3300 XL product family. It operates on the eddy-current principle: a high-frequency oscillator (typically 1.0 MHz) drives the probe coil, generating an electromagnetic field that interacts with the conductive target shaft surface. As shaft-to-probe gap varies, the eddy-current loading on the coil changes the oscillator’s damping coefficient, producing a DC-proportional output voltage at 7.87 mV/µm (200 mV/mil) sensitivity. This linear, non-contact output is the foundational signal for radial vibration, axial position, differential expansion, and eccentricity measurements in API 670-compliant machinery protection systems.

Unlike accelerometer-based sensors that integrate twice to derive displacement, the 138493-01 delivers a direct displacement signal from DC to 10,000 Hz — capturing both static position (DC gap) and dynamic vibration (AC component) in a single channel. This dual-function characteristic is essential for turbomachinery where both slow-roll runout compensation and high-frequency sub-synchronous instability detection must coexist on the same measurement loop.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 138493-01 system is a three-component signal chain: probe, extension cable, and Proximitor sensor (driver). Each element is factory-matched and serialized as a system — substituting individual components from different calibration lots degrades the overall system linearity and voids API 670 compliance. This matched-set architecture is a deliberate design constraint, not a commercial limitation.

Probe Coil Architecture: The probe tip houses a precision-wound, multi-layer coil encapsulated in a ceramic-filled epoxy matrix. The encapsulant provides mechanical rigidity against vibration-induced coil movement (which would introduce spurious noise) while maintaining thermal stability across the –35 °C to +177 °C operating envelope. The coil geometry is optimized for a target material of AISI 4140 steel (relative permeability ≈ 100); for non-standard shaft materials (titanium, Inconel, duplex stainless), a material correction factor must be applied during system calibration.

EMC and Shielding Design: The extension cable uses a triaxial construction — inner conductor, inner shield (driven at the same potential as the center conductor via the Proximitor’s guard drive circuit), and outer shield connected to instrument ground. This driven-guard topology eliminates capacitive leakage currents along the cable length, which is critical in installations where cable runs exceed 5 meters through high-EMI environments (variable-frequency drives, bus ducts, motor control centers). The result is a cable that maintains signal integrity without requiring additional conduit shielding in most industrial installations.

Proximitor Sensor (Driver) Logic: The Proximitor contains the oscillator, demodulator, and output buffer. The oscillator frequency is temperature-compensated using a thermistor network, maintaining output sensitivity within ±1% across the full operating temperature range. The demodulator extracts the AM-modulated gap signal and converts it to the linear DC output. An internal voltage regulator rejects supply-line noise (PSRR > 60 dB at 100 Hz), ensuring that power-supply ripple from shared instrument bus rails does not corrupt the vibration signal — a common failure mode in older installations using unregulated 24 VDC supplies.

Slow-Roll Compensation Compatibility: The DC-coupled output (0 Hz lower bound) allows the 3300 XL monitor to capture shaft runout at slow-roll speeds (typically < 600 RPM) for vector subtraction. This is mandatory for accurate 1X vibration amplitude reporting on machines with inherent mechanical or electrical runout exceeding 25% of the alarm setpoint.

System Integration Benefits

• Direct API 670 Compliance: The 138493-01 is listed as a compliant transducer in Bently Nevada’s API 670 system documentation, eliminating the engineering review burden required for non-listed sensors during EPC project FAT/SAT phases.
• Plug-Compatible with All 3300 XL Monitors: Signal conditioning is embedded in the Proximitor; the monitor input sees a standard –24 VDC-powered, voltage-output signal. No monitor-side reconfiguration is required when replacing an existing 3300 XL transducer system of the same gap range.
• Deterministic Latency: The analog output path introduces < 50 µs signal latency from physical displacement to monitor input — orders of magnitude lower than digital fieldbus alternatives — preserving the time-domain integrity required for phase-referenced vibration analysis and orbit plot generation.
• Dual-Variable Single Channel: Each channel simultaneously delivers DC gap (position) and AC vibration data, halving the channel count compared to systems requiring separate position and vibration sensors. This reduces monitor card costs, wiring density, and marshalling cabinet footprint.
• Hazardous Area Barrier Compatibility: The –24 VDC supply and voltage-output architecture is directly compatible with Zener barrier and galvanic isolator designs from MTL, Pepperl+Fuchs, and R. Stahl, without requiring active signal conditioning in the safe area.
• Diagnostic Transparency via Gap Voltage: The DC gap voltage is continuously readable at the monitor, providing a real-time installation health indicator. A gap voltage outside the linear range (typically –2 V to –16 V) immediately flags probe fouling, shaft eccentricity beyond range, or cable damage — without requiring a separate diagnostic instrument.
• Long Cable Run Capability: The driven-guard cable design supports extension cable lengths up to 9 meters (standard) with matched Bently Nevada extension cables, covering the majority of turbine pedestal-to-local-panel distances without signal degradation.
• System 1 Software Integration: The analog output is directly ingested by Bently Nevada System 1 condition monitoring software via the 3300 XL monitor’s communication interface, enabling trend logging, alarm management, and predictive maintenance analytics without additional signal conversion hardware.

Quality Assurance & Global Logistics

Every 138493-01 unit supplied through siemensplc.com is sourced from verified industrial distribution channels with full traceability to Bently Nevada (Baker Hughes) manufacturing records. Pre-shipment verification includes visual inspection of probe tip, cable armor integrity, connector seating, and OEM part marking authentication against current Bently Nevada part number databases. Units are dispatched in original anti-static packaging with lot documentation and, where available, factory calibration data sheets.

Shipments originate from Xiamen, China, with access to major international freight lanes via Xiamen Gaoqi International Airport and Xiamen Port. Standard export documentation (commercial invoice, packing list, certificate of origin) is prepared for all international orders. DDP (Delivered Duty Paid) terms are available for select destinations. Typical dispatch lead time is 1–3 business days for in-stock units. Urgent same-day quotation is available via email or WhatsApp. All shipments carry a 12-month warranty from the date of dispatch.
