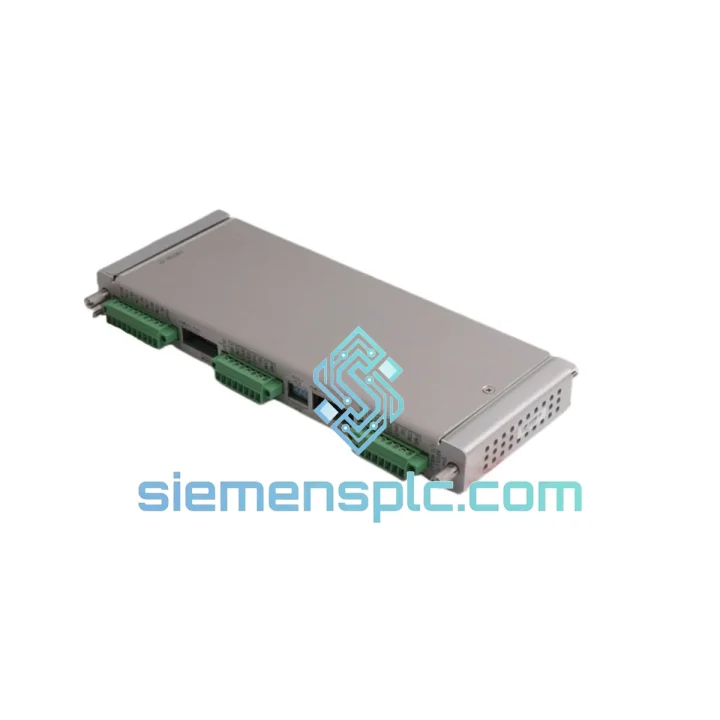

Bently Nevada 138708-01 Shaft Absolute I/O Module

Bently Nevada 138708-01 | 3500/42M Shaft Absolute Vibration I/O Module — Cut Downtime, Ship Today

Every hour a turbine or compressor sits idle costs real money — in lost throughput, contractual penalties, and emergency labor. When the Bently Nevada 138708-01 (3500/42M Shaft Absolute I/O Module) is the failed component standing between you and restart, the only variable that matters is how fast a verified replacement lands on your bench. At siemensplc.com, we maintain ready stock of this module and can initiate same-day dispatch from Xiamen for most international destinations. No waiting on OEM lead times. No grey-market risk. Just a confirmed, traceable unit moving toward your facility.

The 138708-01 is not a peripheral card — it is the computational heart of shaft absolute vibration measurement within the 3500 Series rack. It mathematically combines the relative shaft displacement signal from a proximity probe with the casing absolute motion signal from a seismic velocity transducer, producing a true shaft absolute vibration vector. This combined measurement is the only way to accurately assess rotor dynamics on machines where casing motion is non-trivial — large steam turbines, gas expanders, and high-speed centrifugal compressors being the most common examples. Losing this module means losing your most critical protection channel, and that is not a condition any reliability engineer should accept for longer than it takes to make a phone call.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Field experience with the 3500/42M points to a consistent set of failure signatures and replacement pitfalls. Here is what you need to know before you pull the card:

Common Fault Indicators:

• OK LED off / red: Module has failed its internal self-test. Check rack power supply first — a marginal 3500/05 PSU will cause cascading module faults before it fails outright. Swap PSU before condemning the I/O module.
• Channel Not OK (CNO) alarm on both channels simultaneously: Strongly suggests the module itself rather than the transducers. Isolate by temporarily connecting known-good transducers. If CNO persists, the 138708-01 is the likely culprit.
• Erratic or frozen vibration readings with OK LED green: Firmware corruption or internal ADC fault. A module reset via RCS will confirm — if readings do not recover within one scan cycle, replace the module.
• Communication fault on System 1: If the rack gateway shows the 42M slot as unresponsive while adjacent modules communicate normally, the backplane connector on the module may have fretting corrosion. Inspect the card-edge fingers before assuming full module failure.

Replacement Procedure — Critical Steps:

• 1. Export configuration before removal. Use RCS to export the full rack configuration file (.rck). The replacement module will need this file uploaded before it will accept setpoints. Do not skip this step — rebuilding setpoints from memory under pressure is how mistakes happen.
• 2. Note the hardware revision. The 138708-01 has had multiple hardware revisions. Confirm the revision label on the failed unit and request a matching or compatible revision from your supplier. Mixing incompatible hardware revisions in a redundant pair will cause a rack fault.
• 3. Firmware version matching. The replacement module ships with factory-default firmware. If your rack is running a non-default firmware version (visible in RCS under Module Properties), you must upgrade the replacement module firmware before going live. Mismatched firmware between redundant modules triggers a System Fault.
• 4. No DIP switches on this module. Unlike some 3500 series cards, the 138708-01 does not use physical DIP switches for address configuration. Slot addressing is handled automatically by the rack backplane — insert the module in the correct slot and RCS will recognize it. Do not attempt to force an address.
• 5. Verify transducer gap voltages after installation. After the replacement module is online, check the DC gap voltage on each proximity probe channel via the front-panel test points or System 1. Gap voltage outside the –10 VDC ± 1 V window indicates a probe or extension cable issue that existed before the module failure — and will generate a false CNO on the new card.
• 6. Perform a channel bypass before hot-swap if the machine is running. If your system supports it, place the affected channels in bypass mode in System 1 before removing the module to prevent a spurious trip during the swap.

Reliability in Harsh Conditions

The 3500/42M platform was engineered for environments where consumer-grade electronics would fail within weeks. The 138708-01 carries the full Bently Nevada industrial qualification pedigree:

• Vibration resistance: Qualified to withstand continuous mechanical vibration consistent with installation in or adjacent to rotating machinery foundations — the module does not require vibration isolation mounting.
• Temperature range: Rated for operation across the full industrial temperature band encountered in turbine control rooms and outdoor enclosures. Internal thermal management prevents ADC drift at elevated ambient temperatures.
• Humidity and condensation: Conformal coating on the PCB provides protection against humidity ingress and condensation events common in coastal and tropical installations.
• EMI immunity: Designed to operate in the high-EMI environment of switchgear rooms and motor control centers without signal corruption — critical for accurate vibration measurement in mixed-use electrical rooms.
• Long MTBF: Bently Nevada 3500 series modules are designed for multi-year continuous operation between maintenance intervals, consistent with API 670 requirements for machinery protection systems.

Units supplied by siemensplc.com are stored in climate-controlled, ESD-safe warehousing. Long-term storage does not degrade module performance — we do not supply units that have been exposed to uncontrolled storage conditions.

Global Express Logistics

Our dispatch hub in Xiamen, China is positioned within one of Asia’s most active international freight corridors, with direct access to DHL, FedEx, and UPS international priority services. Here is how a typical urgent order moves:

• Hour 0–2: Order confirmed and payment received. Stock allocated and pulled from ESD-safe storage. Export documentation (commercial invoice, packing list, certificate of origin) prepared in parallel.
• Hour 2–6: Module inspected, photographed, and packed in anti-static foam within a double-wall export carton. Customs declaration filed with Xiamen Customs — HS code pre-classified for smooth clearance.
• Hour 6–24: Shipment handed to DHL Express or FedEx International Priority. Tracking number issued to buyer. For most destinations in Southeast Asia, the Middle East, and Europe, transit time is 2–4 business days from pickup.
• Destination clearance: We provide all required import documentation. For destinations with specific import licensing requirements (e.g., certain Middle East countries), we advise buyers in advance and can adjust documentation accordingly.
• Delivery confirmation: We monitor shipment status and proactively notify buyers of any customs holds or delays — you are never left chasing a tracking number.

For buyers in Europe and the Americas, FedEx International Priority typically achieves 3–5 business day door-to-door delivery from Xiamen. Sea freight is available for non-urgent bulk orders at significantly reduced cost — contact us for a freight quote.
