Bently Nevada 149992-01 Relay Output Module – 3500 Series

Bently Nevada 149992-01 Relay Output Module: Protective Action Interface in 3500 Series Machinery Protection Racks

In a continuous-process facility — a gas turbine compressor train, a steam-driven boiler feed pump, or a fluid catalytic cracking unit blower — the relay output module is the terminal executor of every alarm and trip decision made by the machinery protection system. Vibration monitors, position monitors, and tachometers generate the measurement data; the relay output module converts those decisions into dry-contact switching actions that drive DCS interlock inputs, ESD system channels, and plant annunciator panels. Without a functioning relay output module, the protection rack becomes a data acquisition system with no authority to act.

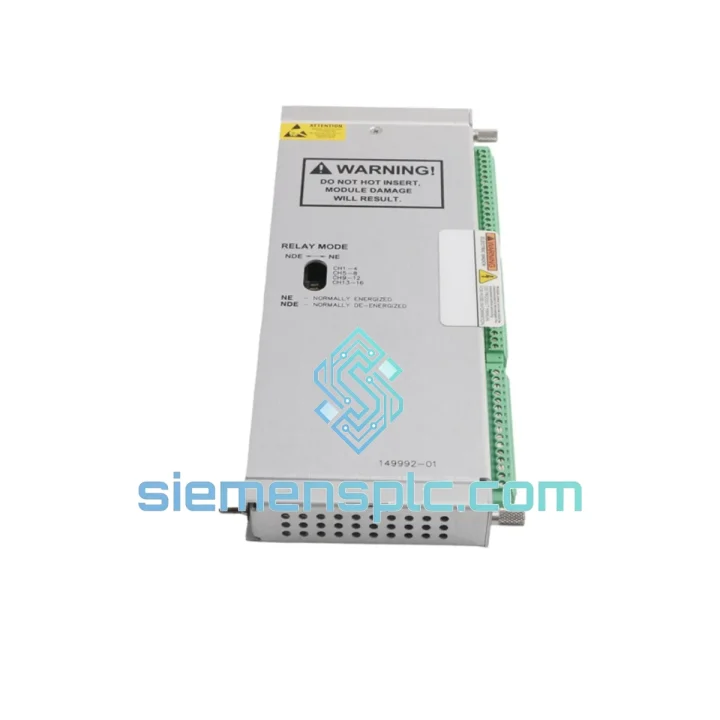

The Bently Nevada 149992-01 is the relay output module engineered specifically for the 3500 Series rack platform. It occupies a single rack slot, draws power from the 3500 backplane, and presents dry-contact relay outputs at the rear-termination terminal block — the same terminal block used by all field wiring in the 3500 architecture. Its design is not generic; it is matched to the signal timing, backplane communication protocol, and physical form factor of the 3500 Series, making it a non-substitutable element in certified machinery protection loops across refineries, offshore platforms, power generation facilities, and petrochemical complexes worldwide.

📧 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 149992-01 operates within the 3500 rack’s internal communication architecture, where monitor modules assert alarm and trip states onto the backplane data bus. The relay output module reads those states and drives its relay coils accordingly — a deterministic, low-latency switching path that does not depend on external controller scan cycles or network communication delays. This is a fundamental architectural distinction from relay outputs embedded in general-purpose PLC I/O systems, where relay actuation is subject to the controller’s program scan time and communication stack latency.

Galvanic Isolation Architecture: The dry-contact relay outputs provide complete galvanic isolation between the 3500 rack’s internal logic circuitry and the external field circuits connected to DCS or ESD input cards. This isolation eliminates ground loop currents that arise when two systems with different ground reference potentials are interconnected — a common source of spurious trips and measurement errors in mixed-voltage plant environments where 24 VDC control circuits coexist with 110 VAC or 220 VAC annunciator circuits.

Fail-Safe Energization Logic: The normally energized relay configuration is the standard selection for machinery protection trip outputs. In this mode, the relay coil is continuously energized during normal operation; a trip condition — or a loss of rack power — de-energizes the coil and allows the contact to open or close to its safe state. This fail-safe behavior is a requirement of API 670 and is consistent with IEC 61511 functional safety principles for process shutdown systems, where loss of power must default to the protective action rather than the permissive state.

EMC Design Considerations: Industrial machinery environments generate significant electromagnetic interference from variable-frequency drives, large motor contactors, and high-current bus bars. The 149992-01’s relay contact isolation and the 3500 rack’s shielded backplane architecture provide inherent EMC robustness. The rear-termination wiring scheme, combined with the rack’s cable management provisions, allows field wiring to be routed away from high-EMI sources, reducing induced noise on relay control circuits.

Rear-Termination Maintenance Logic: The physical architecture of the 3500 rack separates the module electronics (front-accessible) from the field wiring terminations (rear-accessible). When the 149992-01 requires replacement, the module is extracted from the front of the rack without touching the rear terminal block or the field cables connected to it. This design eliminates the risk of wiring errors during module swap — a significant advantage in live-plant maintenance scenarios where re-termination mistakes can cause spurious trips or missed alarms.

System Integration Benefits

• Deterministic Trip Response: Relay actuation is driven directly from the 3500 backplane alarm state, bypassing external controller scan cycles. Trip-to-contact-closure latency is governed by the relay coil response time, not by network or PLC scan delays — a measurable advantage in high-speed machinery protection applications where rotor damage can occur within milliseconds of a threshold crossing.
• Single-SKU Spare Parts Strategy: The 149992-01 covers multiple alarm and trip relay functions within the 3500 rack, allowing maintenance teams to stock one module type rather than multiple relay card variants. This consolidation reduces spare parts inventory carrying cost and eliminates the risk of installing an incorrect relay module variant during an emergency replacement.
• DCS and ESD Interoperability: The dry-contact outputs are compatible with digital input cards from all major DCS and ESD platforms — Honeywell Experion, Emerson DeltaV, ABB 800xA, Yokogawa CENTUM, Triconex, Hima, and Pilz — without signal conditioning or intermediate relay panels. This direct interoperability simplifies loop wiring and reduces the number of termination points that require periodic inspection and torque verification.
• API 670 Compliance Support: The 149992-01 is engineered for use in machinery protection systems governed by API Standard 670, the benchmark specification for vibration, position, and temperature monitoring in rotating equipment protection. Using OEM-specified relay output modules is a prerequisite for maintaining API 670 compliance documentation in regulated facilities.
• SIL Loop Integrity: When installed and configured per Bently Nevada’s SIL documentation, the 149992-01 contributes to the probability of failure on demand (PFD) calculations for the overall safety instrumented function (SIF). Substituting non-OEM relay modules invalidates these calculations and requires re-validation of the SIL rating — a costly and time-consuming process.
• Diagnostic Transparency: The 3500 rack’s system status monitoring includes relay output module health indicators accessible via the Rack Interface Module (3500/20) and the System 1 software platform. Maintenance personnel can verify relay coil status, contact state, and module communication health from the control room without physical access to the rack — reducing the frequency of panel inspections and enabling condition-based maintenance scheduling.
• Live-Plant Replacement Capability: The rear-termination architecture and the 3500 rack’s module replacement procedures allow the 149992-01 to be swapped without disturbing field wiring. In facilities where continuous operation is required and planned shutdowns are infrequent, this capability directly reduces the risk exposure associated with relay module maintenance.
• Reduced Commissioning Error Rate: Because the 149992-01 plugs directly into the 3500 backplane without adapters, jumper wires, or signal conditioning panels, the number of field connections that must be made and verified during commissioning is minimized. Fewer termination points mean fewer potential sources of wiring errors — a statistically significant factor in relay output failures identified during pre-startup safety reviews (PSSRs).

Quality Assurance & Global Logistics

Every 149992-01 unit supplied by siemensplc.com is sourced as genuine Bently Nevada OEM hardware. Before shipment, each module passes through a structured verification process: visual and physical inspection of PCB, relay contacts, connector pins, and housing; label and traceability verification cross-referenced against Bently Nevada labeling standards; relay coil continuity and contact resistance measurement; and anti-static packaging with foam cushioning and full part number labeling for traceability to the end customer.

Documentation available upon request includes inspection reports, photographs of the actual unit with serial number visible, certificates of conformance where available, and commercial invoices with packing lists formatted for customs clearance in your destination country.

Our logistics operations are based in Xiamen, China — a major international port city with direct freight connections to North America, Europe, Southeast Asia, the Middle East, and Australia. Standard export shipments are dispatched within 1–3 business days of order confirmation. We support DHL Express, FedEx International Priority, UPS Worldwide Express, and sea freight consolidation for bulk orders. Export documentation — including commercial invoice, packing list, and certificate of origin — is prepared for every shipment. Freight forwarding coordination and customs declaration support are available for customers in markets with complex import requirements.

All units are covered by a 12-month warranty from the date of shipment. Warranty claims are handled directly by our technical team, with replacement or credit resolution targeted within 5 business days of confirmed defect documentation.
