Bently Nevada 200150-16-CN Accelerometer – Trendmaster Series

Bently Nevada 200150-16-CN: Precision Vibration Measurement for Continuous Online Monitoring Systems

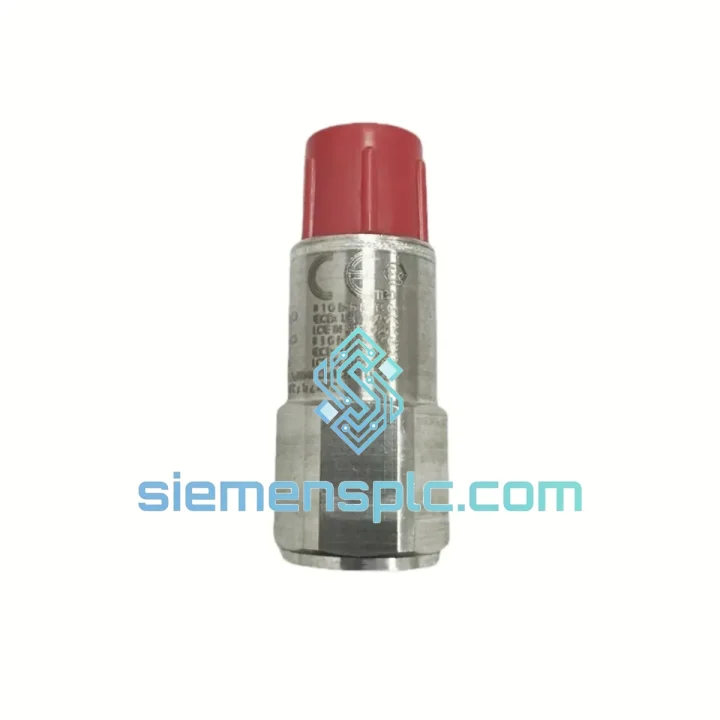

The Bently Nevada 200150-16-CN is a general-purpose industrial accelerometer engineered for integration with the Trendmaster 2000 and Trendmaster Pro continuous online monitoring platforms. Operating on the ICP® (Integrated Circuit Piezoelectric) / IEPE signal conditioning principle, this sensor converts mechanical vibration into a low-impedance voltage signal suitable for direct acquisition by Trendmaster I/O modules without external signal conditioning hardware. Its 16-pin MIL-C-5015 connector and CN regional designation make it the factory-specified sensor for installations operating under China customs and compliance frameworks.

In a predictive maintenance architecture, the accelerometer occupies the first node in the measurement chain: mechanical energy → piezoelectric transduction → charge amplification → voltage output → I/O module digitization → System 1 software trending. Any deviation in sensitivity, frequency response, or connector integrity at this node propagates as measurement error through every downstream calculation — bearing defect frequencies, overall RMS velocity, and spectral alarm thresholds. The 200150-16-CN is factory-calibrated to 100 mV/g (±5%) with NIST-traceable traceability, ensuring that the measurement chain remains metrologically consistent across multi-point installations on the same machine train.

The CN suffix is not a cosmetic designation. It specifies a connector pinout and cable assembly variant optimized for the Trendmaster 2000 3300/16 and 3300/20 I/O modules deployed in China-region projects. Substituting a non-CN variant without verifying pinout compatibility risks reversed signal polarity or open-circuit faults at the I/O module input, which the Trendmaster system will flag as a sensor fault — triggering nuisance alarms and invalidating trend data.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 200150-16-CN employs a shear-mode piezoelectric sensing element — a configuration that offers inherent immunity to base strain and thermal transients compared to compression-mode designs. In shear-mode geometry, the piezoelectric crystal is mechanically loaded in shear rather than compression. This means that thermal expansion of the mounting surface, which generates compressive strain on the sensor base, does not directly couple into the sensing axis. The result is a dramatically lower thermal zero-shift coefficient, which is critical in applications where the machine casing temperature fluctuates during startup and shutdown cycles.

The internal ASIC (Application-Specific Integrated Circuit) performs charge-to-voltage conversion within the sensor housing, eliminating the need for an external charge amplifier. This integration reduces the cable length sensitivity of the measurement: because the output is already a low-impedance voltage signal, cable capacitance does not attenuate the signal as it would in a charge-output (PE) sensor. The Trendmaster I/O module supplies a regulated 4 mA constant-current source to bias the internal ASIC, and the AC vibration signal rides on the DC bias voltage — a standard ICP topology that allows a single coaxial cable to carry both power and signal.

EMC hardening is achieved through the hermetically sealed 316L stainless steel housing, which acts as a Faraday cage around the sensing element and ASIC. The MIL-C-5015 connector shell provides a continuous metallic ground path from the cable shield to the sensor housing, preventing ground loops that would otherwise inject 50/60 Hz power-line interference into the measurement. In high-EMI environments — variable-frequency drives, large motor starters, arc furnaces — this shielding architecture maintains signal integrity without requiring additional ferrite chokes or shielded conduit.

The 16-pin connector format, as opposed to the 2-pin BNC or M12 variants, supports multi-conductor cable assemblies that carry additional diagnostic signals (e.g., temperature from an embedded RTD) alongside the primary vibration output. This allows a single cable run to deliver both vibration and temperature data to the Trendmaster I/O module, reducing installation labor and conduit fill in dense machinery spaces.

System Integration Benefits

• Zero-configuration plug-in: The 200150-16-CN is recognized natively by Trendmaster 2000 and Trendmaster Pro I/O modules. No sensitivity scaling or channel reconfiguration is required — the I/O module reads the factory-calibrated 100 mV/g value from its internal database, eliminating manual entry errors that could corrupt alarm thresholds.
• Deterministic latency: The ICP signal conditioning architecture delivers a fixed group delay across the 2–10,000 Hz passband, ensuring that phase-referenced measurements (e.g., 1× synchronous vibration for balancing) are not distorted by frequency-dependent phase shift. This is essential for orbit plot accuracy on fluid-film bearing machines.
• System 1 full-feature integration: When connected via Trendmaster, the sensor feeds System 1 software with raw waveform data at the I/O module’s sampling rate. System 1 can then compute overall RMS, spectral bands, bearing defect frequencies (BPFO, BPFI, BSF, FTF), and cepstrum — all from a single sensor channel.
• 4–20 mA DCS/PLC output compatibility: The Trendmaster transmitter module converts the accelerometer’s voltage output to a 4–20 mA loop signal, enabling direct integration with Siemens S7, ABB 800xA, Honeywell Experion, and other DCS/PLC platforms without additional signal converters.
• Diagnostic transparency: The Trendmaster system continuously monitors the sensor’s bias voltage. A bias voltage outside the 8–12 VDC window triggers a sensor fault alarm in System 1, providing immediate notification of cable breaks, connector corrosion, or ASIC failure — before the fault causes a missed alarm on the machine.
• Multi-point installation consistency: Because all 200150-16-CN units share the same factory-calibrated sensitivity (±5%), multi-point installations on the same machine train produce directly comparable amplitude data. This is critical for differential vibration analysis between inboard and outboard bearing positions.
• Reduced maintenance overhead: The hermetically sealed housing eliminates the need for periodic desiccant replacement or connector re-greasing in humid environments. IP67 rating allows direct washdown in food-adjacent or chemical processing facilities.
• Long-term trend data continuity: Replacing a failed sensor with an identical 200150-16-CN preserves the historical baseline in System 1. Substituting a different model with a different sensitivity or frequency response would require re-establishing the baseline, losing months or years of trend data.

Quality Assurance & Global Logistics

Every 200150-16-CN unit offered through siemensplc.com is sourced from authorized Bently Nevada (Baker Hughes) distribution channels or verified factory-surplus inventory. Each unit undergoes a structured incoming inspection protocol before dispatch:

• Visual inspection: Housing integrity, connector pin condition, cable jacket continuity, and OEM label/hologram verification to screen counterfeit units.
• Electrical verification: Bias voltage measurement under 4 mA constant-current excitation to confirm ASIC functionality. Units outside the 8–12 VDC bias window are quarantined.
• Sensitivity spot-check: Reference vibration source comparison against a calibrated reference accelerometer. Deviations >5% from 100 mV/g are rejected.
• Calibration certificate: OEM calibration documentation included where available; third-party calibration reports arranged on request.
• 12-month warranty: All units carry a 12-month warranty from the date of shipment, covering manufacturing defects and ASIC failure under normal operating conditions.

Logistics are managed from our Xiamen, China operations center. Xiamen’s port infrastructure supports direct air freight to major industrial hubs: Frankfurt, Houston, Singapore, Dubai, and Sydney — with typical transit times of 3–7 business days for air express. Sea freight consolidation is available for bulk orders. Export documentation, including HS code classification, commercial invoice, and packing list, is prepared in compliance with China customs regulations. CN-suffix units include region-specific compliance documentation for smooth customs clearance on import.
