Bently Nevada VELOMITOR 330500 Velocity Sensor – VELOMITOR Series

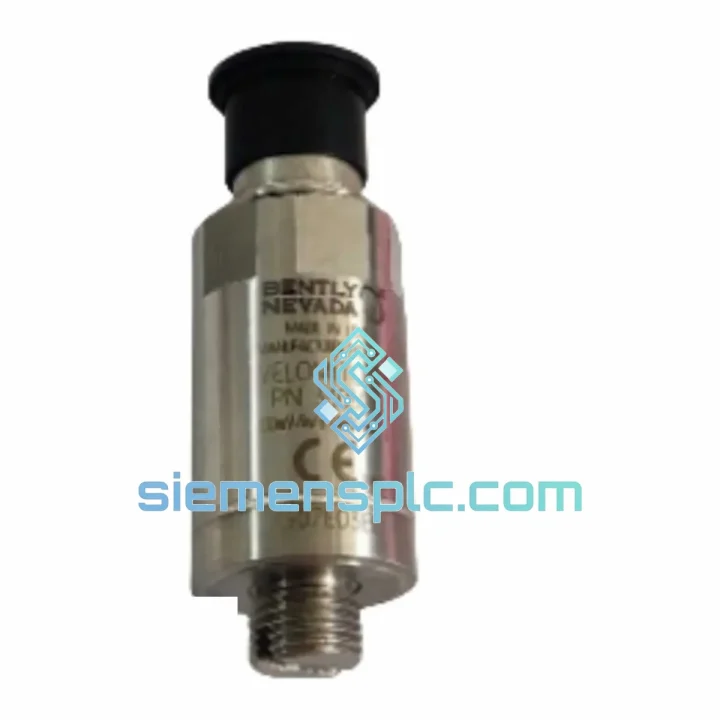

Bently Nevada VELOMITOR 330500 — Piezoelectric Velocity Transducer for Continuous Machinery Protection

The Bently Nevada VELOMITOR 330500 is a self-powered, piezoelectric velocity transducer engineered for permanent installation on rotating machinery casings. Unlike traditional electrodynamic (moving-coil) velocity sensors, the VELOMITOR architecture eliminates the mechanical spring-mass assembly entirely, replacing it with a shear-mode piezoelectric crystal stack coupled to an internal signal-conditioning ASIC. This design removes the primary failure mode of conventional sensors — coil fatigue and magnet flux degradation — while extending the usable frequency response well beyond the 10–1000 Hz envelope typical of electrodynamic designs.

In a machinery protection loop, the 330500 occupies the front-end acquisition node. Its 4–20 mA current-loop output interfaces directly with Bently Nevada 3500 Series velocity monitor cards (3500/42M, 3500/46M) and is equally compatible with any DCS analog input card accepting loop-powered transmitters at 18–30 VDC. The sensor delivers a calibrated sensitivity of 100 mV/(in/s) [3.94 mV/(mm/s)], providing sufficient signal amplitude for accurate measurement across the full 0–50 in/s (0–1270 mm/s) peak velocity range without external amplification.

The 330500 is housed in a 316L stainless steel body rated IP67 / NEMA 4X, making it suitable for outdoor installations, wash-down environments, and locations subject to process fluid splash. The 2-pin MIL-C-5015 style connector provides a positive bayonet lock, preventing accidental disconnection under vibration. Operating temperature spans −40 °C to +121 °C, covering the majority of steam turbine bearing pedestals, centrifugal compressor casings, and motor end-bells encountered in oil and gas, power generation, and petrochemical service.

Hazardous area certifications — FM Class I Division 1 Groups A, B, C, D and CSA equivalent — allow direct installation in classified areas without additional barriers or zener diode isolators in most configurations. CE marking confirms compliance with EU EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU.

From a system architecture perspective, the VELOMITOR 330500 is designed to feed the 3500/42M Velocity Monitor, which performs RMS and peak velocity computation in firmware, compares results against four independently configurable alarm setpoints (Alert, Danger, and two user-defined thresholds), and drives relay outputs within one monitor update cycle — typically 20 ms. This deterministic response latency is critical for turbine trip logic where delayed alarm actuation can result in catastrophic bearing failure.

All units supplied by siemensplc.com are sourced through verified channels with full OEM traceability. Each unit is inspected upon receipt, and calibration documentation is available on request. A 12-month warranty covers manufacturing defects under normal operating conditions. Fast dispatch from Xiamen, China, with DHL Express, FedEx International Priority, and sea freight options available for bulk orders.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The VELOMITOR 330500 departs from the electrodynamic sensor paradigm at the transduction layer. A shear-mode PZT (lead zirconate titanate) crystal stack is mechanically coupled to the sensor’s seismic mass. When the housing accelerates, the crystal experiences a shear stress proportional to the inertial force of the seismic mass. The resulting charge displacement — governed by the piezoelectric constitutive equation D = d·T + ε·E — is fed into a charge amplifier integrated on the internal ASIC, which converts it to a low-impedance voltage proportional to velocity via an analog integrator stage.

EMC Design: The stainless steel housing acts as a Faraday shield, attenuating external electric field interference. The internal ASIC incorporates differential signal routing between the crystal stack and the charge amplifier input, rejecting common-mode noise induced by adjacent power cables or VFD switching transients. Conducted immunity is further enhanced by transient voltage suppression (TVS) diodes on the supply rail, clamping surge events to within the ASIC’s absolute maximum ratings.

Thermal Stability: The piezoelectric sensitivity coefficient (d₃₃) of PZT exhibits a temperature coefficient of approximately −0.2%/°C. The internal ASIC compensates for this drift through a temperature-referenced gain correction circuit, maintaining sensitivity accuracy within ±2% across the full −40 °C to +121 °C operating range — a specification that electrodynamic sensors cannot match due to magnet flux temperature dependence.

Frequency Extension: The lower −3 dB corner at 2 Hz is set by the high-pass filter in the integrator stage, not by a mechanical resonance. This allows the sensor to capture very low-speed machinery vibration (e.g., 120 RPM = 2 Hz fundamental) without the phase distortion inherent in mechanical spring-mass systems near their natural frequency. The upper −3 dB corner at 2000 Hz is determined by the anti-aliasing filter ahead of the output stage, preventing aliasing artifacts in downstream digital monitors.

System Integration Benefits

• Direct 3500 Series compatibility: The 330500 connects to the 3500/42M and 3500/46M velocity monitor cards without any signal conditioning accessories. The monitor’s internal transducer power supply (TPS) provides the 24 VDC loop excitation, and the 4–20 mA signal maps directly to the monitor’s engineering unit scaling registers.
• DCS analog input compatibility: The 4–20 mA current-loop output is compatible with any DCS AI card accepting HART or passive 4–20 mA signals at 18–30 VDC loop voltage, including Siemens PCS 7, Emerson DeltaV, Honeywell Experion, ABB 800xA, and Yokogawa CENTUM VP.
• Deterministic alarm latency: When paired with the 3500/42M, the end-to-end alarm latency from vibration onset to relay actuation is ≤ 20 ms, meeting API 670 requirements for machinery protection response time.
• Diagnostic transparency: The 3500 Series monitor continuously checks the 330500’s supply current. An open-circuit or short-circuit condition on the sensor cable drives the monitor into a Not OK state and activates the system relay, providing fail-safe behavior without additional wiring.
• No periodic recalibration required: Unlike electrodynamic sensors, the VELOMITOR’s piezoelectric element does not degrade through normal use. Bently Nevada specifies a 5-year calibration interval under standard conditions, reducing maintenance downtime.
• Hazardous area installation without barriers: FM Class I Div 1 certification allows direct installation in classified areas on most loop configurations, eliminating the cost and complexity of zener barriers or galvanic isolators.
• Wide frequency coverage for multi-fault detection: The 2–2000 Hz bandwidth captures both low-frequency imbalance/misalignment signatures (2–100 Hz) and high-frequency bearing defect frequencies (500–2000 Hz) in a single sensor, reducing the number of measurement points required per machine.
• System 1 software integration: The 330500’s output data streams natively into Bently Nevada System 1 condition monitoring software, enabling trend analysis, alarm management, and predictive maintenance workflows without additional data conversion layers.
