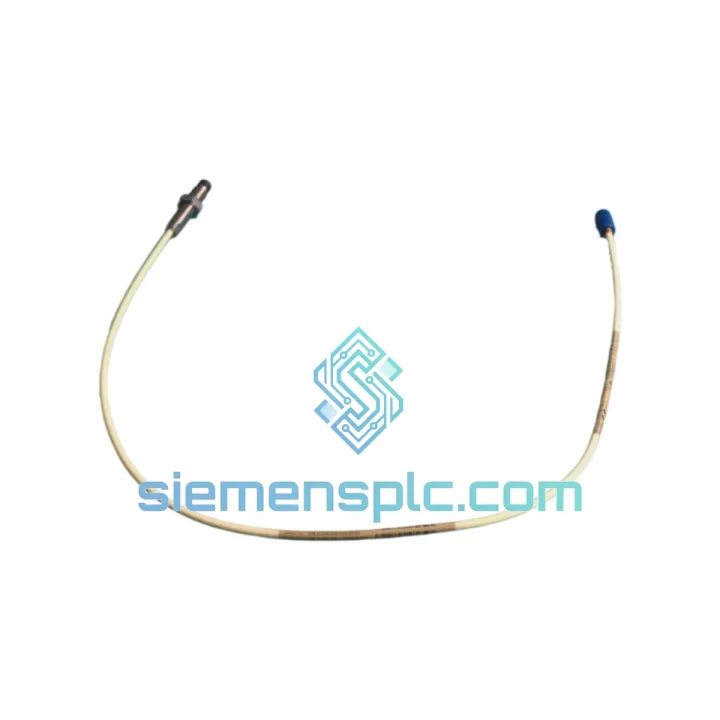

Bently Nevada 21504-000-012-05-02 Proximity Probe – 3300 XL Series

Bently Nevada 21504-000-012-05-02 — Eddy Current Proximity Probe for Critical Rotating Machinery Protection

The 21504-000-012-05-02 is a factory-configured Standard Mount Proximity Probe within the Bently Nevada 3300 XL non-contacting measurement platform. Its primary function in a control loop is continuous, real-time radial shaft displacement sensing — converting mechanical gap variation between probe tip and rotating target into a proportional DC voltage signal that feeds directly into vibration monitors, trip relays, and DCS historian channels. In API 670-compliant machinery protection architectures, this probe is the first transduction element in a three-component chain: probe → extension cable → Proximitor® sensor. Any measurement uncertainty introduced at this stage propagates unattenuated through the entire protection loop, which is why dimensional and electrical conformance to OEM specification is non-negotiable for critical turbomachinery installations.

The probe operates on the eddy current principle. A high-frequency oscillator within the Proximitor® driver (typically 1.0 MHz carrier) energizes a coil wound at the probe tip. When a conductive target enters the electromagnetic field, eddy currents are induced on the target surface, loading the coil and reducing its impedance. The Proximitor® demodulates this impedance change into a DC output voltage linearly proportional to the probe-to-target gap across the calibrated linear range of 0–90 mil (0–2.29 mm). The scale factor of 200 mV/mil (7.87 V/mm) is factory-set and traceable to the OEM calibration standard for AISI 4140 steel targets.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 21504-000-012-05-02 integrates several hardware-level design decisions that directly affect measurement fidelity and long-term reliability in harsh plant environments.

Coil Geometry and Field Uniformity: The 8 mm tip diameter establishes a defined electromagnetic field cone with a depth-of-field ratio calibrated to the 0–90 mil linear range. The coil winding geometry is optimized to minimize field fringe effects at the boundary of the linear zone, reducing the risk of false readings when shaft runout approaches the upper limit of the measurement range. This is particularly relevant in high-eccentricity startup conditions where shaft position can transiently exceed normal operating gaps.

Armored Integral Cable Construction: The 5 ft coaxial cable uses a PTFE dielectric with a braided shield terminated at both ends. The armor jacket provides mechanical protection against abrasion and crush loads in confined bearing housing installations. The coaxial geometry maintains a controlled characteristic impedance (nominally 50 Ω) from probe tip to Proximitor® input, preventing signal reflections that would introduce phase error in the demodulated DC output — a critical consideration for sub-synchronous vibration analysis below 10 Hz.

EMC Shielding Architecture: The stainless steel probe body acts as a Faraday enclosure for the internal coil assembly, attenuating external RF interference from variable-frequency drives, arc welding equipment, and high-current bus bars common in industrial plant environments. The shield continuity from probe body through cable braid to Proximitor® chassis ground establishes a single-point ground reference, eliminating ground loop currents that would appear as low-frequency noise on the output signal.

Thermal Stability: The probe is rated to +177°C continuous, covering the majority of bearing housing surface temperatures encountered in steam turbine and gas turbine applications. The PTFE cable insulation retains its dielectric properties across this range without outgassing or dimensional creep, preserving the coaxial impedance match over the service life of the installation.

Target Material Sensitivity: The factory calibration for AISI 4140 steel reflects the electrical conductivity and magnetic permeability of the most common turbomachinery shaft material. For non-ferrous targets (aluminum, titanium, Inconel), the eddy current penetration depth and loss characteristics differ, shifting the scale factor. This is not a hardware limitation but a calibration parameter — the Proximitor® can be recalibrated for alternative target materials without modifying the probe itself.

System Integration Benefits

• Direct API 670 Compliance: The probe meets the 5th Edition API 670 specification for non-contacting vibration transducers, enabling direct use in machinery protection systems for critical and essential service rotating equipment without additional qualification testing.
• Deterministic DC Output: The –1 VDC to –17 VDC output range is a continuous, low-impedance analog signal with no sampling latency. Protection monitors receive gap information in real time, supporting trip response times below 1 ms when paired with 3500 series monitors configured for fast trip.
• Broadband Frequency Coverage: The DC-to-10 kHz frequency response captures the full spectrum of rotating machinery vibration phenomena — from slow-roll runout (sub-1 Hz) through blade-pass frequencies in multi-stage compressors (potentially several kHz) — within a single transducer, eliminating the need for separate low-frequency and high-frequency sensors.
• Zero Mechanical Wear: Non-contacting measurement eliminates the wear mechanisms that limit the service life of contact-type sensors. In continuous-duty turbomachinery applications, this translates directly to reduced maintenance intervals and elimination of sensor-induced shaft surface damage.
• Drop-in OEM Replacement: Dimensional and electrical conformance to the original 21504 series specification means no re-calibration of the Proximitor® driver is required when replacing a like-for-like probe. This reduces planned maintenance outage duration and eliminates the risk of calibration errors during replacement.
• Diagnostic Transparency: The linear DC output can be trended by any DCS historian or condition monitoring platform without signal conditioning. Long-term gap trending enables detection of bearing wear, shaft bow, and coupling misalignment before vibration amplitude thresholds are reached.
• Redundancy Architecture Support: The probe’s compact 8 mm tip diameter allows dual-probe installations in standard bearing housings (90° offset configuration) for XY radial vibration measurement per API 670 requirements, supporting full redundant protection channel architectures.
• Wide Environmental Tolerance: The –35°C lower operating limit covers cold-climate outdoor installations and cold-start conditions in northern-latitude power plants, while the +177°C upper limit accommodates high-temperature bearing housing installations without derating or special cooling provisions.

Quality Assurance & Global Logistics

Every 21504-000-012-05-02 unit supplied by siemensplc.com is sourced through verified Baker Hughes / Bently Nevada authorized distribution channels. Prior to dispatch, each probe undergoes incoming inspection against OEM dimensional drawings and electrical acceptance criteria, including coil impedance verification and cable continuity check. A Certificate of Conformance accompanies each shipment; NIST-traceable calibration documentation is available upon request.

Our logistics hub is located in Xiamen, China, with direct access to international air freight services via Xiamen Gaoqi International Airport (XMN). Standard export packaging uses anti-static inner bags with foam-lined outer cartons rated for IATA air freight handling. Typical transit times are 3–5 business days to Southeast Asia, 5–7 business days to Europe and the Middle East, and 5–8 business days to North America, subject to customs clearance. Express DHL/FedEx/UPS options are available for emergency plant shutdown requirements. All shipments include commercial invoice, packing list, and Certificate of Conformance. Import HS code documentation is provided upon request to facilitate customs clearance in destination countries.
