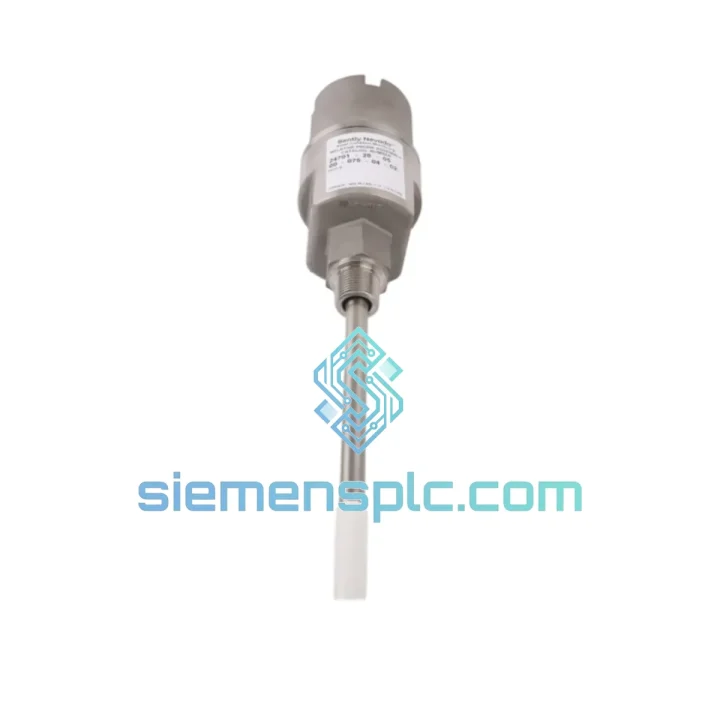

Bently Nevada 24701-28-05-30-057-04-02 Proximity Probe Housing Assembly – 3300 XL Series

Bently Nevada 24701-28-05-30-057-04-02 — Precision Housing Assembly for 3300 XL Proximity Transducer Systems

The 24701-28-05-30-057-04-02 is a mechanical housing assembly engineered specifically for the Bently Nevada 3300 XL proximity transducer platform — one of the most extensively deployed eddy-current sensing systems in continuous rotating machinery protection. Its function within the measurement chain is not passive: the housing assembly defines the geometric relationship between the probe tip and the target surface, and any deviation in that relationship — whether from mechanical wear, thermal distortion, or improper installation — directly corrupts the output signal used by the protection system to make trip decisions.

In API 670-compliant installations, the proximity transducer system is the primary instrument for radial shaft vibration, axial position, and differential expansion measurement on critical turbomachinery. The housing assembly is the structural anchor of that system. It maintains probe tip gap within the linear operating range of the eddy-current field — typically 0.25 mm to 2.25 mm for 8 mm probes — and provides the mechanical isolation necessary to prevent false readings caused by structural resonance or process-induced vibration transmitted through the machine casing. The 24701-28-05-30-057-04-02 is designed to fulfill this role with dimensional tolerances consistent with OEM manufacturing standards.

This part number encodes a specific configuration within the 3300 XL housing family: thread pitch, probe body diameter, cable exit geometry, and environmental sealing class are all defined by the part number suffix sequence. Substituting a dimensionally similar but non-identical housing risks probe misalignment, gap drift under thermal cycling, and potential ingress of process fluids into the cable termination zone — all of which degrade measurement fidelity and can trigger nuisance trips or, more critically, mask genuine machinery faults.

siemensplc.com maintains verified stock of the 24701-28-05-30-057-04-02 sourced through traceable supply channels. Each unit is inspected for housing thread integrity, connector condition, and dimensional conformance before dispatch. A 12-month warranty against manufacturing defects is standard on all supplied units. Shipment is executed from Xiamen, China via DHL Express, FedEx International Priority, or freight forwarder, with full export documentation including commercial invoice, packing list, and certificate of origin.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The eddy-current proximity transducer operates on the principle of electromagnetic induction: the Proximitor sensor drives a high-frequency oscillating current (typically 1.0 MHz for 3300 XL 8 mm probes) through the probe coil, generating an alternating magnetic field at the probe tip. When a conductive target enters this field, eddy currents are induced on the target surface, loading the oscillator circuit and producing a measurable change in oscillator amplitude and frequency. The Proximitor converts this change into a DC voltage output — nominally –200 mV/mil (–7.87 V/mm) — which is then processed by the 3500 Series rack for alarm and trip logic.

The housing assembly’s mechanical role in this signal chain is to maintain the probe coil at a fixed, known distance from the target surface under all operating conditions. Thermal expansion of the machine casing, process pressure fluctuations, and mechanical vibration all impose dynamic loads on the housing. The 24701-28-05-30-057-04-02 is constructed from materials selected for low thermal expansion coefficient relative to the machine casing material, minimizing thermally induced gap drift across the operating temperature envelope. Thread engagement depth and locking mechanism design prevent axial probe migration under sustained vibration — a failure mode that produces a slow, monotonic drift in the DC output indistinguishable from genuine shaft movement at the 3500 rack level.

The cable exit geometry encoded in the part number suffix (-04-02) defines the angular orientation of the cable conduit relative to the housing body axis. This is not an aesthetic parameter: in confined machine pedestals, incorrect cable exit angle forces the extension cable into a bend radius below the minimum specified by Bently Nevada, increasing cable capacitance per unit length and shifting the Proximitor calibration curve. The 24701-28-05-30-057-04-02 provides the correct exit geometry for its designated installation envelope, preserving the factory calibration relationship between gap and output voltage.

EMC performance of the housing is achieved through continuous metallic shielding from probe tip to cable connector, maintaining the coaxial signal path integrity specified in the 3300 XL system design. Ground continuity between the housing body and the machine structure is maintained through the threaded mounting interface, providing a low-impedance return path for shield currents and suppressing common-mode noise pickup from adjacent power cables and variable-frequency drives — a significant concern in modern turbomachinery installations where VFD-driven auxiliary equipment operates in close proximity to the measurement system.

System Integration Benefits

• Direct OEM Dimensional Compatibility: Thread form, probe bore diameter, and axial depth match the original Bently Nevada manufacturing specification, enabling drop-in replacement without modification to the machine casing or probe mounting boss.
• Preserved Calibration Traceability: Maintaining OEM housing geometry ensures the installed system remains within the calibrated gap range documented in the original commissioning records, avoiding the need for recalibration after replacement.
• Deterministic Trip Response: Accurate gap maintenance eliminates the measurement uncertainty that can cause the 3500 rack to generate spurious alarms or, conversely, fail to trip on a genuine high-vibration event — both of which carry significant operational and safety consequences.
• Reduced Diagnostic Ambiguity: When the housing assembly is dimensionally correct, vibration trend data from System 1 software reflects actual shaft dynamics rather than a superposition of shaft motion and housing-induced measurement artifacts, improving the reliability of condition-based maintenance decisions.
• Thermal Stability Across Load Cycles: Material selection and thread engagement design limit thermally induced gap variation to within the ±0.025 mm tolerance band required for accurate axial position measurement on steam turbines operating across cold-start to full-load thermal cycles.
• EMC Shielding Continuity: Unbroken coaxial shielding from probe tip to Proximitor input suppresses induced noise from adjacent high-current bus bars and switching equipment, maintaining signal-to-noise ratio within the 3300 XL system specification.
• API 670 Compliance Maintenance: Replacement with the correct OEM part number preserves the as-built API 670 compliance status of the machinery protection system, which is a contractual and insurance requirement in many power generation and oil & gas facilities.
• Minimized Recommissioning Scope: Because the housing geometry is identical to the original, functional verification after replacement is limited to gap measurement and output voltage check — no full system recalibration or protection system bypass extension is required.

Quality Assurance & Global Logistics

All units of the 24701-28-05-30-057-04-02 supplied by siemensplc.com are sourced through verified channels — authorized distributor stock, OEM surplus, or certified refurbishment programs — with traceability documentation available upon request. Pre-shipment inspection covers housing thread condition (go/no-go gauge verification), connector pin integrity, cable exit seal condition, and dimensional check of the probe bore diameter and depth. Units that do not pass inspection are quarantined and not dispatched.

Packaging is anti-static foam-lined, with the probe bore protected by a machined end cap to prevent thread damage in transit. Outer carton is double-walled corrugated, rated for international air freight handling. Each shipment includes a commercial invoice, packing list, certificate of origin, and — where applicable — a certificate of conformance referencing the inspection criteria applied.

Dispatch is from Xiamen, China. Standard transit times: DHL Express 3–5 business days to Europe and North America; FedEx International Priority 2–4 business days to Southeast Asia and the Middle East. Freight forwarder consolidation is available for multi-line orders. Export classification and HS code documentation are prepared for all international shipments to facilitate customs clearance without delay.

The 12-month warranty covers manufacturing defects in materials and workmanship. Warranty claims are processed within 5 business days of receipt of the returned unit and supporting documentation. Replacement or credit is issued based on inspection findings.
