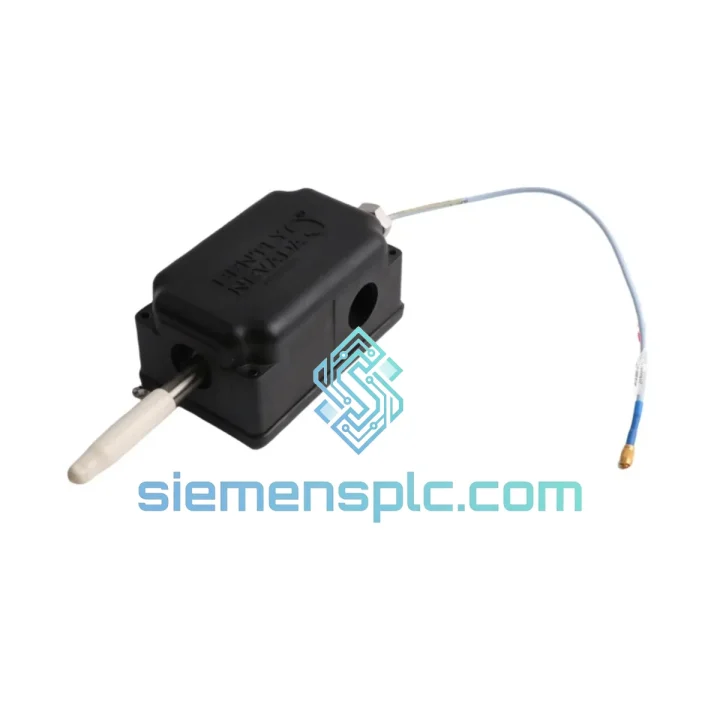

Bently Nevada 31000-16-10-15-030-03-02 Proximity Probe Housing Assembly – 3300 XL Series

Bently Nevada 31000-16-10-15-030-03-02 — Precision Proximity Probe Housing Assembly for API 670 Machinery Protection Systems

In continuous rotating machinery protection, the mechanical interface between the eddy-current sensing element and the monitored shaft is not a passive structural component — it is a calibrated measurement fixture. The Bently Nevada 31000-16-10-15-030-03-02 Proximity Probe Housing Assembly defines the exact axial and radial positioning of the probe tip relative to the shaft surface, directly governing the linearity of the output voltage-gap characteristic curve. Any deviation in housing geometry — whether from thread wear, thermal distortion, or mechanical impact — translates into a proportional error in the measured displacement signal, which propagates through the entire protection loop to the 3500 Series rack and ultimately to the trip relay logic.

This part number belongs to the Bently Nevada 3300 XL Proximity Transducer System, the most extensively deployed eddy-current monitoring platform in API 670-governed installations worldwide. The 3300 XL system operates on a three-component architecture: probe, extension cable, and Proximitor® sensor. The housing assembly anchors the probe within the bearing housing or bracket, maintaining the factory-calibrated air gap — typically 1.0 mm nominal for a 5 mm probe tip — under continuous thermal cycling, process fluid exposure, and mechanical vibration loads that can exceed 50 g in turbomachinery applications.

The part number string 31000-16-10-15-030-03-02 encodes specific dimensional and configuration parameters: thread size, probe body diameter, housing material grade, cable exit orientation, and connector type. Each field in the part number must match the installed system exactly. Substituting a dimensionally similar but differently coded assembly invalidates the transducer loop calibration and may void API 670 compliance certification for the monitoring channel.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 3300 XL proximity probe housing assembly performs three simultaneous engineering functions that are often underappreciated in maintenance procurement decisions.

Gap Geometry Control: The housing thread pitch and shoulder depth establish the probe tip standoff with a mechanical tolerance that must remain within ±0.05 mm of the nominal gap to keep the eddy-current output within the linear portion of the characteristic curve. The 3300 XL Proximitor® sensor generates a 1 MHz oscillator signal that is amplitude-modulated by the conductive target’s proximity. At the nominal 1.0 mm gap, the output is approximately –10.0 VDC. A 0.1 mm deviation from nominal introduces roughly 0.79 V of offset error — sufficient to trigger nuisance alerts on tightly configured protection channels. The housing’s machined shoulder acts as the mechanical reference datum for this calibration.

EMC Shielding Architecture: The stainless steel housing body provides a Faraday enclosure around the probe coil assembly, attenuating external electromagnetic interference from adjacent motor drives, high-current bus bars, and RF sources common in industrial switchgear environments. The housing’s continuous metallic path to the bearing bracket ground reference ensures that common-mode noise induced on the probe cable shield is diverted before reaching the Proximitor® input stage. This is particularly relevant in installations where variable-frequency drives operate within 3 meters of the transducer loop.

Thermal Expansion Compensation: In steam turbine and gas turbine applications, bearing housing temperatures can cycle between ambient and 150 °C during startup and shutdown sequences. The housing material’s coefficient of thermal expansion is matched to the probe body specification to prevent differential thermal growth from altering the installed gap. An uncompensated 50 °C temperature rise in a mismatched housing-probe combination can produce a gap shift of 15–30 µm — detectable as a slow DC drift on the vibration monitor channel and potentially misinterpreted as rotor thermal bow.

Process Isolation: The housing sealing geometry prevents bearing lube oil from migrating along the probe cable path into the extension cable connector, which would increase cable capacitance and shift the Proximitor® oscillator frequency, degrading scale factor accuracy. The housing’s internal geometry channels any fluid ingress to a drain path rather than allowing accumulation at the probe coil.

System Integration Benefits

• Direct Loop Calibration Preservation: Installing the exact OEM part number maintains the factory-certified scale factor of the transducer loop without requiring a full loop recalibration procedure per API 670 Annex D — saving 4–8 hours of instrumentation labor per channel during turnaround.
• 3500 Rack Compatibility: The 3300 XL transducer system is the primary input source for Bently Nevada 3500 Series rack monitors (3500/40M, 3500/42M, 3500/45). Maintaining OEM housing geometry ensures the rack’s internal gap voltage reference aligns with the installed probe’s characteristic curve, preserving alarm and trip setpoint accuracy.
• API 670 Audit Compliance: Replacement with the identical part number supports documentation of like-for-like substitution in the machinery protection system change management log, satisfying API 670 Section 12 requirements for system modification records.
• Deterministic Vibration Measurement: Consistent housing geometry eliminates mechanical variability as a source of measurement uncertainty, allowing the protection system to distinguish genuine rotor dynamic events (unbalance, misalignment, rub) from instrumentation artifacts with higher confidence.
• Reduced Diagnostic Ambiguity: When a housing assembly is worn or damaged, the resulting gap drift appears as a slow trend on the vibration monitor — indistinguishable from actual rotor thermal bow or bearing wear without physical inspection. Replacing the housing with a dimensionally verified OEM unit eliminates this diagnostic noise source.
• Extended Probe Service Life: The housing provides mechanical protection for the probe tip from direct contact with process fluids and debris. A structurally intact housing extends the mean time between probe replacements, which are typically more expensive than the housing assembly itself.
• Multi-Machine Standardization: For plants operating multiple trains with 3300 XL installations, maintaining a standardized spare housing part number simplifies inventory management and eliminates the risk of cross-application errors during emergency maintenance.
• System 1 Software Compatibility: Bently Nevada System 1 Evolution condition monitoring software uses the transducer loop’s calibration data — including the housing’s nominal gap reference — for trend analysis and alarm rationalization. OEM housing replacement preserves the integrity of historical baseline data stored in System 1.

Quality Assurance & Global Logistics

Every Bently Nevada 31000-16-10-15-030-03-02 unit dispatched from our Xiamen facility undergoes a structured pre-shipment verification process. Physical inspection covers housing thread condition (GO/NO-GO gauge verification), connector seating force, label legibility, and absence of mechanical damage to the probe tip protection geometry. Units sourced from OEM surplus channels are accompanied by original packaging and available certificates of conformance upon request.

Packaging is specified for international air and sea freight: anti-static inner wrap, foam-lined rigid outer carton, and moisture-desiccant insert. Export documentation — including commercial invoice, packing list, and HS code classification — is prepared for each shipment to ensure smooth customs clearance in the EU, Middle East, Southeast Asia, and North American markets. Standard dispatch from Xiamen is within 1–3 business days for in-stock units. DHL Express, FedEx International Priority, and sea freight consolidation are available depending on urgency and destination.

All units carry a 12-month warranty from the date of shipment, covering manufacturing defects and dimensional non-conformance. Our technical team is available to support installation verification and gap-setting procedures via email or WhatsApp.
