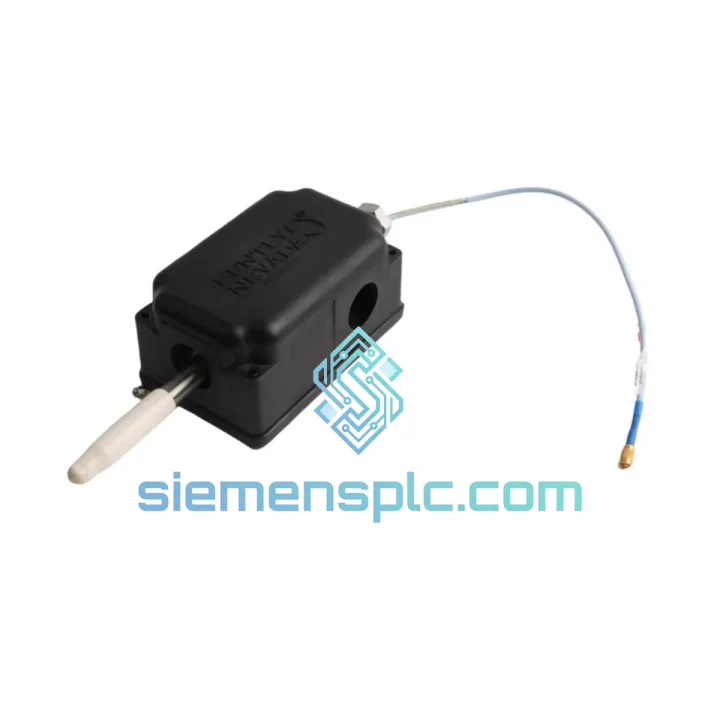

Bently Nevada 31000-28-10-00-133-03-02 Proximity Probe Housing

31000-28-10-00-133-03-02 Proximity Probe Housing — Every Hour of Downtime Costs You. We Ship Today.

Your turbine tripped. The DCS is screaming. Maintenance is standing by and the only thing between you and restart is a replacement proximity probe housing. You’ve been there. So have we. The Bently Nevada 31000-28-10-00-133-03-02 is on our shelf in Xiamen — not on a 6-week factory lead time. We pull, inspect, pack, and hand it to DHL before your next shift change.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on rotating machinery, here are the failure modes and replacement pitfalls that actually bite engineers on-site:

1. Probe Gap — Get This Wrong and You’ll Trip Again in 48 Hours
The 3300 XL system is calibrated for a linear range of 0.25 mm to 2.25 mm. Your nominal operating gap is 1.0–1.5 mm. Don’t eyeball it. Use a calibrated gap meter and verify the DC bias voltage at the Proximitor® output: –10.0 VDC ± 0.5 V at nominal gap. If you’re reading –24 V, the probe tip is not seeing the shaft — check for housing misalignment or a cracked probe tip.

2. Extension Cable Mismatch — The Silent Killer
The probe, extension cable, and Proximitor® sensor are a calibrated three-component system. Swapping in a non-Bently cable — even one that physically fits — shifts the system sensitivity from the factory-set 200 mV/mil. The monitor will accept the signal, but your vibration readings will be wrong. Always replace cable and housing as a matched set if the cable has been damaged.

3. Common Fault Codes on 3500 Rack Monitors

• OK LED off / Not OK relay energized: Probe gap out of range, open circuit in cable, or Proximitor® power supply failure. Start at the Proximitor® — measure supply voltage first.
• High vibration alarm with no process change: Probe tip contamination (oil sludge, scale) or housing locknut backed off, allowing probe to drift. Torque locknut to spec and clean the probe tip face.
• Intermittent signal dropout: Connector corrosion at the probe-to-extension-cable junction. Disassemble, clean with contact cleaner, and apply dielectric grease before reassembly.
• Asymmetric orbit plot: Probe mounting angle deviation. Verify the probe is installed at exactly 45° X–Y orientation per API 670 and your machine OEM drawing.

4. Replacement Sequence (Field-Proven)

1. Isolate and de-energize the Proximitor® sensor — do not hot-swap under power.
2. Record the existing probe gap measurement before removal (baseline for reinstallation).
3. Remove the locknut and back the probe out of the housing. Note thread count for reinstallation depth reference.
4. Install the new 31000-28-10-00-133-03-02 housing. Thread the probe in to the recorded depth, then fine-adjust gap with a feeler gauge or gap meter.
5. Torque the locknut — typically 20–25 N·m depending on housing variant. Do not over-torque; you will crack the probe body.
6. Re-energize Proximitor®, verify DC bias at –10 VDC ± 0.5 V, confirm OK LED illuminated.
7. Perform a slow-roll check before bringing the machine to operating speed.

Reliability in Harsh Conditions

The 31000-28-10-00-133-03-02 housing is not a catalog part built to a price point. It is a precision mechanical component engineered to survive the environments that destroy ordinary hardware.

Vibration: Rotating machinery generates broadband vibration from 2 Hz to well above 10 kHz. The 316 SS housing and M10 × 1 fine-thread locknut system maintain probe position under continuous dynamic loading. Fretting and thread loosening — the two most common mechanical failure modes in probe installations — are addressed by the housing’s thread geometry and the specified locknut torque procedure.

High Temperature: Bearing housings on steam turbines and gas compressors routinely reach 80–100 °C at the probe mounting boss. The –40 °C to +120 °C operating range provides genuine margin, not a marketing number. The 316 SS housing does not creep or deform at these temperatures, maintaining the dimensional stability that probe gap accuracy depends on.

Moisture and Process Fluids: IP67 sealing keeps condensation, lube oil mist, and wash-down water out of the probe cavity. In offshore and coastal installations where salt-laden air accelerates corrosion, 316 SS outperforms standard 304 SS by a significant margin in pitting resistance. Installations in hydrogen-cooled generators and ammonia refrigeration compressors have demonstrated multi-year service life without housing degradation.

Chemical Exposure: Petrochemical and refinery environments expose probe housings to H₂S, aromatic hydrocarbons, and caustic cleaning agents. The 316 SS alloy’s molybdenum content provides the corrosion resistance that keeps this housing functional where carbon steel or aluminum alternatives fail within months.

Global Express Logistics

Our Xiamen warehouse is 40 minutes from Xiamen Gaoqi International Airport (XMN), a major DHL and FedEx hub for South China export freight. This is not a coincidence — it is the operational backbone of our emergency supply model.

Standard Express (DHL / FedEx Priority): Orders confirmed before 14:00 CST ship same business day. Transit times: Southeast Asia 1–2 days, Europe 3–4 days, North America 4–5 days, Middle East 3–5 days, Australia 3–4 days. All shipments include door-to-door tracking from our warehouse to your receiving dock.

Emergency AOG / Shutdown Freight: For critical plant shutdowns, we coordinate with freight forwarders for next-flight-out (NFO) dispatch. Contact us directly on WhatsApp for real-time coordination — we have handled emergency shipments to offshore platforms, remote mining sites, and island power stations where standard courier networks do not reach.

Documentation Package: Every shipment includes a commercial invoice, packing list, and certificate of conformance. For customers requiring import clearance support, we provide HS code documentation (HS 9031.80) and country-of-origin certificates on request. Customs delays are the one variable we cannot fully control — which is why we recommend customers in high-tariff jurisdictions pre-clear their import broker before placing the order.

Packaging: The housing assembly ships in anti-static foam-lined packaging with thread protectors installed. Probe tip face is covered with a protective cap. The outer carton is double-walled and marked FRAGILE / PRECISION INSTRUMENT. We have shipped to ambient temperatures ranging from –20 °C (Siberian winter) to +45 °C (Middle East summer) without packaging failure.
