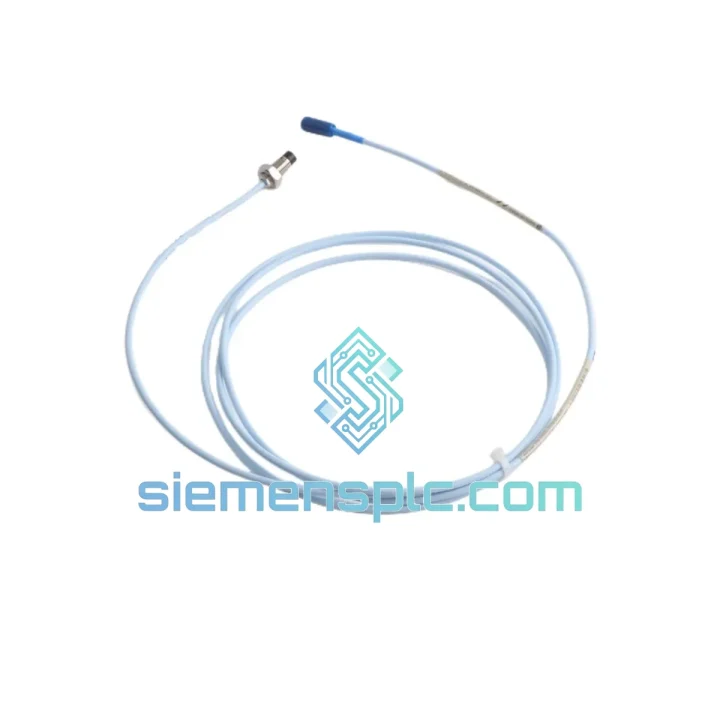

Bently Nevada 330101-00-08-20-02-05 Extension Cable – 3300 XL Proximity Transducer

330101-00-08-20-02-05 — Calibrated 8-Metre Coaxial Extension Cable in the Bently Nevada 3300 XL Eddy-Current Measurement Chain

The Bently Nevada 330101-00-08-20-02-05 is an 8-metre factory-calibrated coaxial extension cable engineered as an integral electrical component of the 3300 XL proximity transducer system. Unlike generic instrumentation cable, this assembly is not a passive conductor: its distributed capacitance, characteristic impedance, and shield transfer impedance are precision-matched at the factory to the internal 1 MHz oscillator circuit of the 3300 XL proximitor. The cable occupies the signal-transmission segment between the probe body and the proximitor/driver module, carrying a carrier signal whose amplitude modulation encodes shaft radial displacement with sub-micron resolution.

The part number suffix structure encodes physical and electrical attributes directly: 330101 designates the extension cable product family within the 3300 Series; 00-08 specifies the 8.0-metre nominal length; 20 identifies the armored jacket variant; 02 defines the connector termination type; 05 assigns the temperature class. Each field maps to a parameter referenced by the proximitor’s calibration constants. Replacing this cable with a non-OEM substitute of differing capacitance per unit length shifts the oscillator’s resonant operating point. In a 3300 XL 8 mm system with a nominal sensitivity of 7.87 V/mm, a capacitance deviation of ±50 pF/m across 8 metres introduces a DC output offset of 0.8 V to 1.6 V — equivalent to a false gap reading of 0.10 mm to 0.20 mm. In an API 670-compliant machinery protection loop with a danger setpoint at 250 µm peak-to-peak, this offset consumes a material fraction of the available measurement margin before any genuine shaft excursion occurs.

The 3300 Series is deployed in API 670 machinery protection systems on steam turbines, gas turbines, centrifugal compressors, axial compressors, gearboxes, and high-speed pumps across oil and gas, power generation, petrochemical, and LNG sectors. The 8-metre length addresses the most prevalent installation geometry: bearing pedestal to nearest instrument enclosure distances of 6 to 8 metres, routed through conduit or cable tray.

This listing covers genuine OEM stock sourced through verified supply channels, inspected prior to dispatch, and shipped from Xiamen, China with full traceability documentation available on request.

📩 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

At 1 MHz, the extension cable is not electrically short relative to signal wavelength. Its distributed inductance (L) and capacitance (C) constitute a transmission line whose characteristic impedance Z₀ = √(L/C) must be held within a tight manufacturing tolerance to suppress reflections at the proximitor input. Bently Nevada encodes the total probe-plus-extension-cable capacitance budget into the proximitor’s calibration EEPROM. The 8-metre length suffix (-00-08-) corresponds to a defined capacitance contribution that, when summed with the probe tip capacitance, positions the oscillator’s operating point within the linear region of its voltage-versus-gap transfer curve. Any deviation from this capacitance budget — whether from incorrect length, non-OEM dielectric compound, or connector contact oxidation — shifts the operating point along the transfer curve and introduces a nonlinearity that zero-offset adjustment alone cannot correct.

The dual-shield architecture addresses two physically distinct interference mechanisms. The inner shield, grounded at the proximitor end and floating at the probe end (single-point topology), provides electrostatic rejection of capacitively coupled noise from adjacent power cables and VFD switching transients (typical dV/dt: 5–20 kV/µs for IGBT-based drives). The outer armor braid, grounded at both ends, provides a low-impedance return path for magnetically induced interference from transformer stray fields and motor stator currents. In turbine hall cable trays where 6 kV bus bars and large synchronous generators operate within 1–3 metres of instrumentation runs, this two-layer topology delivers greater than 40 dB common-mode rejection across 1 kHz to 100 kHz — the harmonic range most relevant to IGBT drive installations co-located with rotating machinery.

The captive-nut connector locking mechanism maintains contact integrity under continuous vibration at bearing pedestals, where acceleration levels of 5–50 g at 10–1000 Hz are common. Connector loosening under vibration is a documented failure mode in non-OEM cables using push-on or friction-fit terminations. The armored jacket compound is formulated for resistance to ISO VG 32–68 turbine lube oil, phosphate ester hydraulic fluid (Fyrquel, Skydrol), and steam condensate at temperatures up to 125 °C — covering the full thermal and chemical exposure envelope of steam turbine bearing housing environments.

System Integration Benefits

• Calibration chain integrity: OEM-matched capacitance and impedance preserve the factory calibration stored in the proximitor’s EEPROM. No field recalibration, no system re-ranging, and no modification to 3500 Series monitor configuration is required after cable replacement — eliminating the calibration verification step from the maintenance window schedule.
• API 670 compliance continuity: Using the specified OEM cable maintains the machinery protection system’s compliance with API 670 5th Edition requirements for transducer system component traceability and calibration chain integrity — a documented audit requirement for insurance underwriters and regulatory inspections in offshore and onshore hydrocarbon processing facilities.
• Deterministic alarm setpoint accuracy: With no impedance mismatch, the proximitor output remains within its linear range (−2 VDC to −18 VDC for an 8 mm system at 200 mV/mil sensitivity). Alarm and danger setpoints configured in the 3500 rack correspond accurately to physical shaft displacement values, with no setpoint correction factors required.
• ATEX/IECEx loop certification integrity: The cable carries its own ATEX and IECEx certification as a system component. Substituting a non-certified cable invalidates the Ex protection concept of the entire transducer loop, requiring re-certification of the installation before the machinery can return to service in Zone 1 or Zone 2 classified areas.
• EMC performance in VFD-dense plants: Greater than 40 dB common-mode rejection at 1 kHz to 100 kHz suppresses spurious vibration amplitude modulation that would otherwise appear as sub-synchronous or super-synchronous spectral components in the 3500 rack’s dynamic data, complicating machinery diagnostics and generating false maintenance alerts.
• Thermal stability across process extremes: The −55 °C to +125 °C rating covers cryogenic LNG compressor installations (ambient −40 °C, cable routed through cold box penetrations) at the low end, and steam turbine bearing housing environments (ambient up to 110 °C with radiant heat from casing) at the high end, without cable derating or supplemental thermal insulation.
• 3500 rack OK/Not OK diagnostic fidelity: A correctly installed OEM cable allows the 3500 rack’s transducer health check circuit to operate within its designed acceptance window. Non-OEM cables with out-of-specification capacitance cause the OK relay to report a fault condition even when the probe and proximitor are functional, generating nuisance maintenance calls and masking genuine transducer faults through alarm fatigue.
• Reduced MTTR during planned maintenance: Pre-terminated, length-coded OEM cables eliminate field measurement, cutting, and termination steps during planned maintenance windows. Cable replacement is achievable in under 15 minutes with standard tools, compared to 45–90 minutes for field-fabricated replacements — a significant factor in turnaround schedules where bearing inspection windows are measured in hours.
• Forward compatibility with 3500 firmware updates: Bently Nevada 3500 Series firmware updates periodically tighten transducer health check acceptance tolerances as diagnostic algorithms are refined. OEM cables with documented capacitance specifications remain within updated acceptance windows; field-fabricated cables with undocumented electrical parameters may fall outside tightened tolerances after a firmware update, triggering spurious OK faults.

Quality Assurance & Global Logistics

Every unit of the 330101-00-08-20-02-05 dispatched from our Xiamen facility is an original Bently Nevada (Baker Hughes) manufactured component. Stock is sourced through verified distribution channels and authenticated OEM surplus, with original manufacturer labeling, date codes, and batch traceability intact. Prior to dispatch, each cable undergoes a three-point inspection protocol: connector contact resistance measurement (acceptance criterion: <10 mΩ per contact at 1 A DC); end-to-end shield continuity verification (acceptance criterion: shield resistance <1 Ω); and jacket visual inspection for cuts, abrasion, kinking, or connector seating defects. Units failing any criterion are quarantined and not dispatched.

A Certificate of Conformance (CoC) is available upon request for customers integrating this cable into SIL-rated safety instrumented systems or ATEX-certified installations. Material traceability documentation — including manufacturer lot number, date code, and inspection records — can be provided for nuclear, offshore, and defense applications with enhanced documentation requirements. All documentation is issued in English and can be apostilled for international regulatory submissions.

Logistics from Xiamen, China are handled via DHL Express, FedEx International Priority, and UPS Worldwide Express. Standard transit times: 3–5 business days to Europe; 4–6 business days to North America; 2–4 business days to Southeast Asia and the Middle East. For shutdown and turnaround situations requiring same-day dispatch, contact us directly via WhatsApp for emergency stock confirmation before 14:00 CST. EXW Xiamen and CIF destination Incoterms are both available. Export documentation — commercial invoice, packing list, certificate of origin, and material safety data sheet — is prepared for all international shipments. Payment terms: T/T (bank transfer), L/C at sight. Proforma invoice issued within 4 business hours of order confirmation. Minimum order quantity: 1 piece.
