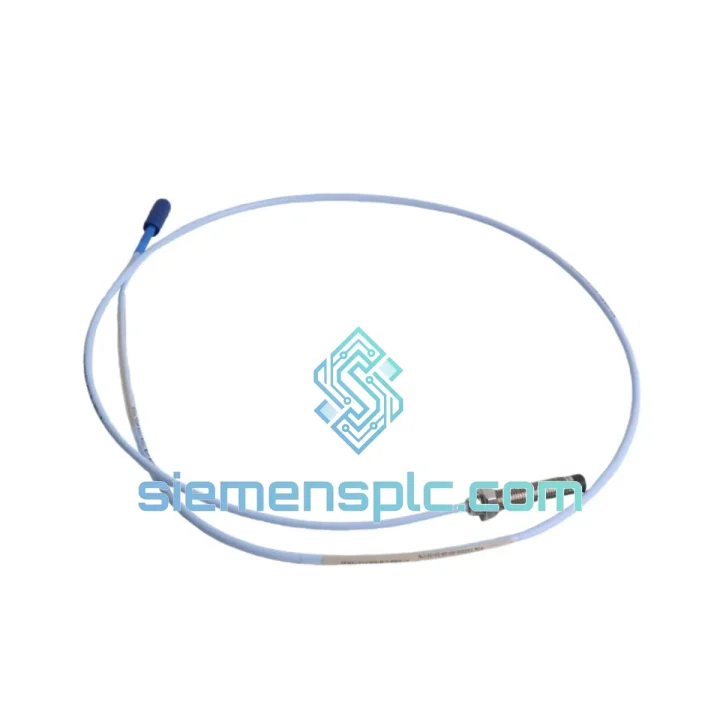

Bently Nevada 330101-00-09-10-02-05 Proximity Transducer

330101-00-09-10-02-05 — Stop the Clock on Your Downtime. Ship Today.

Your turbine is down. Your compressor is offline. Every hour of unplanned shutdown is burning through your maintenance budget and your production schedule. The Bently Nevada 330101-00-09-10-02-05 8mm proximity transducer is on the shelf in Xiamen — not on a 12-week OEM backorder. We pull, test, and hand it to DHL the same day you confirm. That’s the only number that matters right now.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field calls on 3300 XL systems teach you the same lessons over and over. Here’s what actually trips people up during a hot swap:

1. Matched-Set Rule — Don’t Mix Calibration Lots
The 330101-00-09-10-02-05 is factory-calibrated as a three-piece system: transducer + extension cable + driver. If you swap only the transducer and keep an old extension cable from a different calibration batch, your scale factor will drift — sometimes by 3–5%. On a turbine running API 670 alarm setpoints, that’s enough to mask a real vibration event or trigger nuisance trips. Always replace the matched set, or send the new transducer and existing cable to a certified lab for re-characterization before returning to service.

2. Gap Setting on Reinstallation
Target gap for standard 8mm probes on AISI 4140 steel is 1.0 mm ± 0.1 mm (approximately –10.5 VDC output at mid-range). Use a non-ferrous feeler gauge or a calibrated gap tool — never a steel feeler gauge, which will distort the eddy-current field during setup. Confirm output voltage at the driver terminal strip before closing the bearing housing. If you’re reading outside –9 VDC to –12 VDC at nominal gap, stop and recheck your thread engagement and locknut torque.

3. Common Fault Codes on 3500 Series Monitors
— OK LED off / Not OK relay energized: First suspect is a broken integral cable at the transducer body — the most common mechanical failure point after vibration fatigue. Flex the cable near the transducer while watching the driver output. If voltage jumps, you’ve found your break.
— Output pegged at –2 VDC: Probe is too far from target (gap > 2.5 mm) or the target surface has a deep scratch or keyway directly under the probe. Rotate the shaft slowly and watch for output recovery.
— Output pegged at –18 VDC: Probe is touching or nearly touching the shaft. Check for shaft thermal growth, bearing wear, or incorrect probe mounting depth. Back the probe out immediately — contact will destroy the tip.
— Noisy / erratic output with shaft stationary: Electrical interference from adjacent VFDs or grounding issues. Verify shield continuity from transducer connector through to the driver chassis ground. A floating shield on the extension cable is the usual culprit.

4. Thread Engagement and Locknut Torque
The 330101 series uses M10 x 1.0 threads. Minimum thread engagement in the mounting boss is 12 mm. Torque the locknut to 5 N·m — overtorquing cracks the ceramic tip housing, undertorquing allows probe migration under vibration. Use a calibrated torque wrench, not a feel-based tighten.

5. Non-Standard Target Materials
If your shaft is Inconel 718, titanium, or duplex stainless, the factory AISI 4140 calibration introduces a material correction factor — typically +8% to +15% on scale factor depending on alloy conductivity. Do not assume the standard calibration is valid. Request a material-specific calibration curve from Bently Nevada or apply the correction factor from their application note 141-108.

Reliability in Harsh Conditions

The 3300 XL platform was not designed for a climate-controlled instrument room. It was designed for the bearing pedestal of a 50 MW steam turbine running at 3,000 RPM in a coastal petrochemical plant — where ambient temperatures swing from 5 °C at night to 55 °C in summer, where salt-laden humidity attacks every connector, and where the floor vibrates at 1–2 g continuously.

The 330101-00-09-10-02-05 addresses each of those conditions directly. The transducer tip is rated to +177 °C — hot enough to survive direct contact with bearing housing surfaces on high-temperature steam turbines without signal degradation. The armored integral cable uses a stainless steel braid over a PTFE-insulated conductor, which resists both mechanical abrasion from adjacent pipework and chemical attack from lubricating oil mist. The MIL-C-5015 connector is rated IP67 when mated, preventing moisture ingress during washdowns or high-humidity startups.

Vibration endurance testing per IEC 60068-2-6 confirms the transducer body withstands 15 g sinusoidal excitation across 10–2,000 Hz — well above the structural vibration levels seen in most rotating machinery installations. The ceramic-tipped probe body is non-magnetic and non-conductive, immune to the electromagnetic interference generated by adjacent motor drives and bus bars.

In short: this unit is built to keep measuring accurately in the exact conditions that cause other instrumentation to fail. That’s why it’s the default specification on API 670 machinery protection systems worldwide.

Global Express Logistics

Stock is held at our Xiamen warehouse, positioned specifically for fast access to Asia-Pacific, Middle East, and European industrial hubs. Here’s how the process works from the moment you confirm your order:

Day 0 — Order Confirmation: Payment confirmed before 14:00 CST triggers same-day picking and outgoing inspection. Each unit is function-tested against a reference driver before packaging. Export documentation — commercial invoice, packing list, and certificate of conformance — is prepared in parallel.

Day 0–1 — Dispatch: Shipments move via DHL Express or FedEx International Priority depending on destination and customer preference. Both carriers offer direct routing from Xiamen Gaoqi International Airport to major industrial hubs: Singapore in 24 hrs, Dubai in 36 hrs, Rotterdam in 48 hrs, Houston in 48–60 hrs. Tracking number issued within 2 hours of carrier pickup.

Customs Clearance: We pre-classify all shipments under the correct HS code (8543.70 for electronic measuring instruments) and provide full commercial documentation to minimize customs hold risk. For customers in the EU, we can ship DDP (Delivered Duty Paid) on request, eliminating import clearance delays on your end.

Emergency Freight: For genuine production-critical situations, we coordinate with DHL’s On Demand Delivery service and FedEx Critical Inventory Logistics for next-flight-out options. Contact us directly on WhatsApp for real-time coordination — we’ve moved parts to offshore platforms and remote mining sites on 12-hour notice.

Every shipment is insured at full replacement value. If a unit arrives damaged in transit, we ship a replacement immediately — no waiting for the insurance claim to settle.
