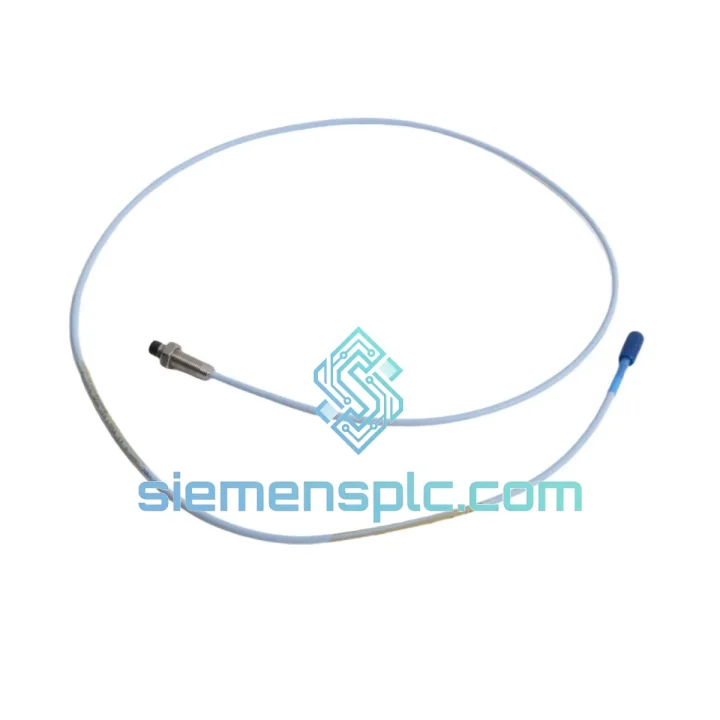

Bently Nevada 330101-00-12-15-02-00 Proximity Probe – 3300 XL Series

Bently Nevada 330101-00-12-15-02-00 — 8 mm Eddy-Current Proximity Probe for Continuous Rotating Machinery Surveillance

The Bently Nevada 330101-00-12-15-02-00 is an 8 mm diameter eddy-current proximity probe belonging to the 3300 XL Series — a platform that has defined the benchmark for non-contact shaft displacement measurement in turbomachinery protection systems for decades. This specific configuration ships with a 1.0 m integral cable and mates with a 1.5 m extension cable, placing the driver/oscillator at a total system cable length of 2.5 m from the probe tip — a geometry that satisfies the majority of API 670-compliant installation envelopes on steam turbines, gas compressors, and centrifugal pumps.

Unlike contact-type transducers, the 330101-00-12-15-02-00 operates on the principle of electromagnetic induction: a high-frequency oscillator (typically 1.0 MHz carrier) drives a coil wound within the probe tip, generating an alternating magnetic field. When a conductive target surface — the shaft — enters the field, eddy currents are induced, loading the oscillator circuit and producing a DC output voltage that is linearly proportional to the air gap between probe face and shaft surface. The result is a continuous, wear-free analog signal with sub-micron resolution, immune to process fluid contamination and mechanical contact degradation.

In a control loop context, this probe feeds raw gap voltage to a paired 3300 XL driver/oscillator, which conditions the signal and outputs a calibrated voltage to the monitor rack — typically a Bently Nevada 3500 Series or 3300/16 module. The monitor applies alarm and danger setpoints, executes relay logic for machine trip, and forwards time-waveform and spectral data to System 1 software for trend analysis. The 330101-00-12-15-02-00 is the first transduction element in this chain; its dimensional accuracy and calibration stability directly determine the fidelity of every downstream protection decision.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 3300 XL probe architecture addresses three fundamental engineering constraints that earlier-generation proximity probes failed to resolve simultaneously: thermal drift, EMC susceptibility, and installation repeatability.

Thermal Coefficient Management: The coil winding within the 330101-00-12-15-02-00 uses a controlled-expansion bobbin material matched to the 316 SS housing. This pairing limits the thermal coefficient of scale factor to less than ±0.05% per °C across the rated temperature band, ensuring that a probe installed on a hot-section gas turbine bearing housing does not introduce a temperature-induced offset that could mask genuine shaft displacement trends. At 177 °C tip temperature — a realistic figure for steam turbine bearing pedestals — the uncorrected thermal error remains below 12 µm, well within API 670 accuracy requirements.

EMC Design and Shielding Architecture: The coaxial cable construction provides continuous 360° electrostatic shielding from probe tip to driver input. The shield is grounded at the driver end only, eliminating ground-loop currents that would appear as low-frequency noise on the gap signal. In environments with high-frequency switching drives (VFDs operating at 4–16 kHz PWM frequencies), the coaxial geometry attenuates capacitively coupled interference by a factor exceeding 40 dB, preserving signal integrity at the 1× and 2× running-speed frequencies that are diagnostically critical.

Reverse-Mount Connector Geometry: The integral reverse-mount coaxial connector positions the mating interface behind the probe body rather than at the tip. This geometry protects the electrical connection from direct exposure to process fluid splash and mechanical impact during installation. Field replacement time is reduced because the connector is accessible without removing the probe from its mounting boss — a measurable maintenance efficiency gain in confined bearing housing geometries.

Calibration Traceability: Each 330101-00-12-15-02-00 unit is factory-calibrated against AISI 4140 steel targets using NIST-traceable measurement standards. The calibration data — scale factor, bias voltage at nominal gap, and linearity deviation — is recorded per serial number. This traceability chain allows end-users to perform in-situ verification against the original factory record without returning the probe to the OEM, reducing calibration downtime to a single shift rather than a multi-week RMA cycle.

System Integration Benefits

• Zero-recalibration drop-in replacement: The 330101-00-12-15-02-00 is dimensionally and electrically identical to all prior 3300 XL 8 mm probes with the same cable configuration. Substitution requires no monitor rescaling, no setpoint adjustment, and no system revalidation — critical for minimizing planned outage duration.
• Deterministic signal latency: The eddy-current transduction mechanism introduces no mechanical hysteresis or pneumatic lag. Signal propagation from shaft displacement event to driver output is governed only by the oscillator time constant, typically <1 ms, ensuring that the monitor rack receives displacement data within one shaft revolution at speeds up to 60,000 RPM.
• Diagnostic transparency via DC bias monitoring: The probe’s DC output at nominal gap (approximately −10.4 VDC at 1.0 mm gap) provides a continuous health indicator. A drift in bias voltage — detectable by the 3500 monitor’s gap alarm channel — flags probe fouling, target surface degradation, or cable damage before the condition affects vibration measurement accuracy.
• Multi-variable measurement from a single transducer: A single 330101-00-12-15-02-00 installation simultaneously yields radial vibration (AC component), shaft average centerline position (DC component), and slow-roll runout data. This data density reduces the number of transducer penetrations required in the bearing housing, lowering seal complexity and potential leak paths.
• API 670 fifth-edition compliance: The probe meets the transducer performance requirements of API 670 (5th Ed.) for radial vibration and axial position measurement, including linearity, temperature performance, and EMI immunity. This compliance simplifies documentation for new-unit acceptance testing and insurance audits.
• Wide target material compatibility with documented correction factors: While factory-calibrated for AISI 4140, Bently Nevada publishes correction factors for over 30 common shaft alloys including 17-4 PH stainless, Inconel 718, and titanium alloys. The 330101-00-12-15-02-00 can therefore be deployed on non-standard shaft materials without returning to the factory, provided the appropriate correction factor is applied at the driver.
• Hazardous area certification compatibility: The 3300 XL probe series is designed to interface with Bently Nevada’s intrinsically safe barriers, enabling deployment in Zone 1 / Division 1 classified areas — common in offshore platforms and petrochemical facilities — without requiring an explosion-proof housing for the probe itself.
• Long-term spare parts availability: The 3300 XL platform has maintained backward electrical compatibility across multiple hardware revisions. Stocking the 330101-00-12-15-02-00 as a critical spare provides coverage for installations dating back over 20 years, reducing the risk of obsolescence-driven forced outages.

Quality Assurance & Global Logistics

Every 330101-00-12-15-02-00 unit dispatched from our Xiamen, China facility is a genuine Bently Nevada component sourced through verified supply channels. Prior to shipment, each probe undergoes a structured inspection protocol: physical integrity check of the probe body, cable jacket, and connector; label and date-code verification against manufacturer records; and electrical continuity measurement to confirm coil impedance is within the OEM-specified tolerance band. Units that do not pass all checkpoints are quarantined and not offered for sale.

Packaging follows OEM standards — individual anti-static foam inserts within rigid cartons — to prevent transit damage to the probe tip and cable assembly. For international shipments, we prepare a full commercial invoice, packing list, and certificate of conformance. Air freight via DHL Express, FedEx International Priority, or UPS Worldwide Express is available for urgent requirements, with typical transit times of 3–5 business days to Europe, the Middle East, and Southeast Asia. Sea freight consolidation is available for volume orders where lead time permits. All export documentation complies with Chinese customs regulations and destination-country import requirements. A 12-month warranty covers manufacturing defects; units exhibiting failure under normal operating conditions within the warranty period are replaced at no charge.
