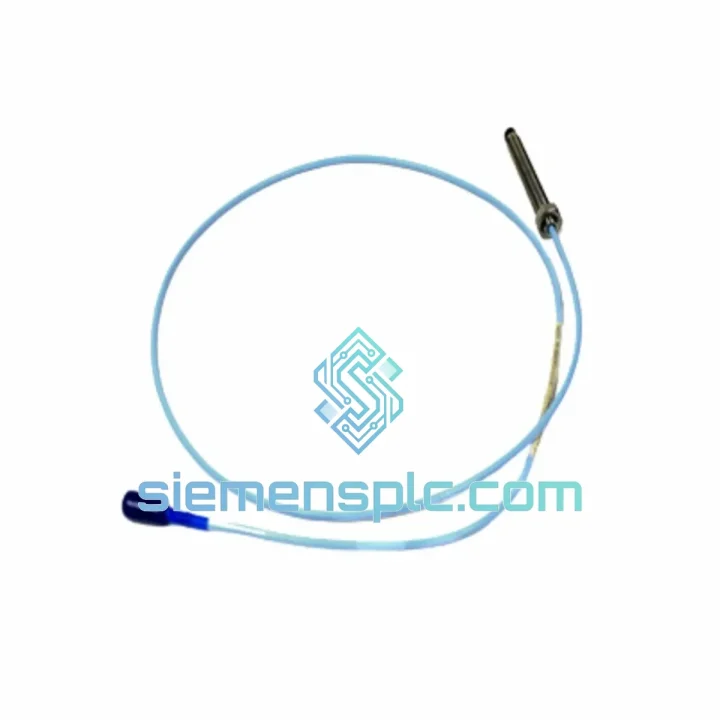

Bently Nevada 330101-00-15-10-02-00 Proximity Probe

330101-00-15-10-02-00 — Machine Down, Clock Running: Get the Right Probe Shipped Today

When a 3500 rack drops its OK status and your turbine or compressor goes into protective shutdown, the cost clock starts immediately. Lost throughput, idle crews, contractual penalties — every hour without a functioning proximity probe is money leaving the plant. The Bently Nevada 330101-00-15-10-02-00 is the exact 3300 XL 8 mm eddy-current proximity probe your system needs. We have verified, factory-sealed units in our Xiamen warehouse, ready to move the same day you call.

This is not a compatible substitute or a pulled-from-service spare. It is a new, traceable unit with full documentation: certificate of conformance, material test report, and country-of-origin declaration available on request. The part number encodes a specific calibration set — 8 mm probe tip, 5 m integral cable, M10 × 1 thread, calibrated for the 330180-series proximitor and 330130-series extension cable. Swapping in a probe from a different calibration family shifts your sensitivity by up to 8% and voids API 670 compliance. We supply the correct part, not the nearest approximation.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The following is drawn from actual field replacements on 3500-series racks — not from the instruction manual. The manual covers procedure. This section covers what actually goes wrong and why.

Step 1 — Bypass the channel before breaking any connection. On the 3500/22M I/O module, place the affected channel in bypass before disconnecting the probe. The moment the output voltage leaves the −2 V to −18 V OK window — which happens as soon as the cable is pulled — the rack asserts a Not OK condition. Without a bypass, that condition can cascade into a full unit trip. Bypass the channel, stay at the rack, and do not leave the panel unattended until the replacement is complete and the bypass is cleared.

Step 2 — Record the old probe’s gap voltage before removal. If the probe is still producing output, measure the DC voltage at the proximitor terminal before you remove anything. Target is −10.0 VDC ±0.5 V at a 1.0 mm nominal air gap. A reading far outside this range on the old probe often points to a bent or shifted mounting bracket — which means the new probe will land in the same out-of-range condition the moment it is installed. Catching this before removal saves a second trip to the machine.

Step 3 — Set gap by voltage, not by torque. Thread the 330101-00-15-10-02-00 in while monitoring the proximitor output on a calibrated meter. Stop when you reach the target gap voltage, then lock the jam nut to 2.3 N·m. Do not torque first and verify second. Thermal expansion in the bearing housing shifts the physical gap after the machine reaches operating temperature, and only the electrical measurement confirms the actual working gap. This single discipline eliminates the majority of “new probe installed, alarm still active” callbacks.

Step 4 — Route the cable correctly before restoring bypass. The 330101-00-15-10-02-00 uses a coaxial integral cable. Keep it away from VFD output cables, motor power conduit, and high-current bus bars. Ground the cable shield at the proximitor end only — grounding at both ends creates a loop that injects 50 Hz or 60 Hz noise directly into the measurement signal. This appears on the 3500 trend display as periodic spikes with no corresponding process event, and it is the most common source of unexplained noise after an otherwise clean installation.

Common fault indications after probe replacement:

• OK LED off, Danger LED on: Gap voltage is outside the −2 V to −18 V window. Verify physical gap with a feeler gauge before condemning the new probe — the bracket may be the problem.
• Alert trip with no process change: Electrical noise. Confirm cable routing and verify the shield is grounded at the proximitor end only.
• Periodic spikes on trend, no alarm: Connector fretting at the probe-to-extension cable junction. Flex the cable while watching the output — spikes that track with cable movement confirm a cable assembly fault, not a rotor event.
• Output locked at −24 VDC: Short circuit at the probe tip or in the cable. Replace immediately. Do not attempt to restart the machine.
• Output locked at 0 VDC: Open circuit. Check proximitor supply voltage and cable continuity before replacing the probe.
• Sensitivity drift after replacement: Calibration family mismatch. The suffix digits in the part number — 330101-00-15-10-02-00 — encode cable length and calibration range. A probe from a different calibration family shifts effective sensitivity by up to 8% and causes the 3500 rack to report incorrect vibration amplitudes. Confirm that probe, extension cable, and proximitor all carry matching calibration identifiers.

Reliability in Harsh Conditions

The 330101-00-15-10-02-00 is built for continuous service in environments that would destroy general-purpose instrumentation. Gas turbine bearing pedestals, offshore compressor stages, refinery pump trains, and LNG expander shafts — these are the applications this probe was designed around, not adapted to after the fact.

The PEEK probe tip is chemically inert to H₂S-bearing hydrocarbons, lube oil, steam condensate, glycol, and the majority of process fluids encountered in power generation and petrochemical service. It does not swell, crack, or lose dimensional stability at continuous temperatures up to +177 °C. The 316 stainless steel body holds its threaded position under broadband vibration levels exceeding 50 g — properly installed units in gas turbine pedestals routinely run for a decade or more without requiring replacement.

The coaxial cable construction provides inherent common-mode rejection of electromagnetic interference from adjacent switchgear and variable frequency drives. In motor control centers and substation environments where EMI levels are high enough to corrupt sensor signals from other technologies, the coaxial architecture is what keeps the measurement valid. This is not a marketing claim — it is the reason eddy-current proximity systems remain the standard for API 670 machinery protection after decades of competing sensor technologies entering the market.

Units shipped from our Xiamen warehouse are stored in climate-controlled conditions: 15–25 °C, relative humidity below 60%, individually sealed in anti-static packaging with desiccant. Inventory is managed on a strict first-in, first-out basis. We track receipt dates and do not ship shelf-aged stock. If your quality system requires a specific shelf-life window or storage condition certification, state it at the time of order and we will confirm before shipping.

Global Express Logistics

Our Xiamen warehouse is 40 minutes from Xiamen Gaoqi International Airport (XMN), a primary cargo hub with direct freighter connections to Frankfurt, Dubai, Los Angeles, and Singapore. Orders confirmed before 14:00 CST ship the same calendar day via DHL Express or FedEx International Priority. Export documentation — commercial invoice, packing list, certificate of origin, HS 9031.80 classification — is prepared within two hours of order confirmation and transmitted to the carrier before pickup.

• Southeast Asia: 1–2 business days, door-to-door
• Middle East: 2–3 business days
• Europe: 3–4 business days
• Americas: 3–5 business days
• Africa & Oceania: 4–6 business days

AWB tracking number is sent via email and WhatsApp within one hour of carrier pickup. For destinations with import licensing requirements — India DGFT, Brazil SISCOMEX, and others — we advise on documentation before the shipment leaves China, not after it arrives at a customs hold. Bulk orders of five or more units qualify for consolidated air freight at a reduced per-unit cost; request a freight quote before placing the order to lock in the rate.

We have shipped Bently Nevada proximity system components to petrochemical plants in Saudi Arabia, power stations in Vietnam, paper mills in Finland, and LNG terminals in Australia — all on emergency timelines. The logistics process is documented, repeatable, and does not depend on a single freight forwarder or a single routing.
