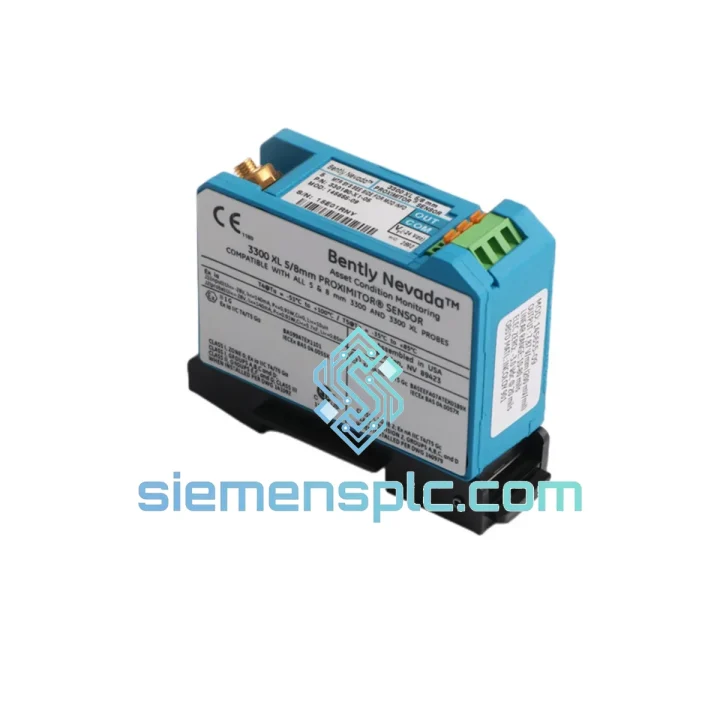

Bently Nevada 330180-X1-05 MOD-145004-13 Proximitor Sensor

Bently Nevada 330180-X1-05 MOD:145004-13 | Stop the Clock on Your Unplanned Shutdown

Your machine is tripped. The 3500 rack is throwing a Not OK on the Proximitor channel. The shift supervisor is standing behind you. You already know the probe and extension cable check out — the fault is in the Proximitor itself. Every hour this machine stays down is costing your facility real money, and the OEM’s lead time is measured in weeks, not days.

This is exactly the scenario the Bently Nevada 330180-X1-05 MOD:145004-13 stock at siemensplc.com is built for. We hold verified units of this 3300 XL Proximitor ready to ship from Xiamen via DHL or FedEx Express — reaching most destinations in Asia within 24–48 hours, Middle East and Europe in 48–72 hours, and the Americas in 72–96 hours. No factory queue. No allocation wait. You get a tracking number, not a promise.

The 330180 Proximitor is the signal conditioning core of the Bently Nevada 3300 XL proximity transducer system. It takes the raw high-frequency eddy-current signal from the 8mm probe, conditions it through a precision oscillator-demodulator circuit, and outputs a calibrated DC voltage that your 3500 monitor or DCS analog input reads as shaft gap. When this unit fails — and it does fail, typically from internal oscillator drift, power supply degradation, or connector corrosion in humid environments — the entire measurement channel goes dark. There is no graceful degradation. The monitor trips, the machine trips, and the clock starts running.

The MOD:145004-13 modification level is a factory-level engineering change incorporated into the production run. It is not a field modification. When replacing, you must match the MOD level to your system’s calibration records, or re-perform the system calibration procedure per Bently Nevada’s commissioning documentation. Mismatched MOD levels between Proximitor and probe can introduce scale factor errors that will not be caught by a simple Not OK check — they will show up as drift in your vibration baseline, which is far more dangerous than an outright trip.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Confirming Proximitor Failure Before You Order

Before condemning the 330180, eliminate the probe and extension cable first — they fail far more often. Disconnect the Proximitor output from the monitor and measure the DC output voltage directly with a calibrated multimeter at the known gap distance. If the output is outside the expected range (typically -10V ±0.5V at the nominal 1.0mm gap for 8mm probes), and the probe/cable assembly tests correctly on a known-good Proximitor, the 330180 is your fault. Common failure signatures:

• Output stuck at supply rail (-24V or 0V): Internal oscillator failure. The Proximitor is not generating the excitation signal. The probe sees no drive and the output collapses. This is the most common catastrophic failure mode.
• Output drifting slowly over hours or days: Oscillator frequency drift due to aging components or thermal cycling fatigue. The gap reading wanders even with a stationary shaft. This is insidious — it can mask real shaft movement changes.
• Intermittent Not OK with no clear pattern: Connector corrosion at the Proximitor input or output connectors, particularly in humid or salt-laden environments. Clean connectors first; if the fault persists, replace the unit.
• Correct output at ambient, fails at operating temperature: Thermal derating of internal components. The unit passes bench test but fails in the field once the junction box heats up. Replace and verify at operating temperature.

Replacement Procedure — Key Steps

1. Obtain a bypass authorization from your machinery protection system owner before breaking the measurement loop. In API 670 installations, bypassing a channel without authorization is a safety management violation.
2. Document the existing gap voltage at the Proximitor output before disconnection. This is your baseline for post-installation verification.
3. Disconnect the probe/extension cable assembly from the Proximitor input. Do not disturb the probe installation in the machine — the gap is set and should not need re-adjustment if the probe has not moved.
4. Replace the 330180 unit. Verify the MOD level on the replacement matches your system calibration records. If MOD levels differ, you must perform a full system calibration per Bently Nevada procedure before returning the channel to service.
5. Reconnect the probe/extension cable. Power up the Proximitor and measure the output voltage. Compare against your pre-removal baseline. A deviation of more than ±0.2V at the same shaft position warrants investigation before clearing the bypass.
6. Verify the 3500 monitor channel status returns to OK and the gap reading is within the expected operating window. Clear the bypass only after the channel is confirmed healthy.

Configuration Notes: The 330180 Proximitor has no field-configurable DIP switches or address settings — it is a passive signal conditioner. All channel configuration (alert/danger setpoints, gap center, measurement range) is held in the 3500 monitor rack, not in the Proximitor itself. Replacing the Proximitor does not reset your setpoints. However, if your 3500 rack uses the Proximitor’s internal identification data for channel validation, verify the rack accepts the replacement unit without generating a configuration mismatch alarm.

Reliability in Harsh Conditions

The 3300 XL Proximitor platform was designed from the ground up for the environments where rotating machinery actually lives — not laboratory conditions. The 330180 housing is rated for continuous operation from -35°C to +85°C, covering the full range from arctic upstream installations to tropical compressor stations without derating. The internal electronics are conformal-coated against humidity and condensation, which is the primary environmental failure driver in coastal, offshore, and tropical installations.

Vibration immunity is engineered to IEC 60068-2-6 test profiles, ensuring the Proximitor electronics do not generate spurious output signals when mounted on or near vibrating structures — a critical requirement when the unit is measuring the very vibration it must be immune to. The TNC connectors used on the 330180 are specified for industrial environments with positive locking and gold-plated contacts to resist the fretting corrosion that destroys BNC connectors in high-vibration applications.

The MOD:145004-13 engineering change level reflects Bently Nevada’s continuous reliability improvement program. MOD-level updates typically address field-identified failure modes — component substitutions for improved thermal stability, connector upgrades, or oscillator circuit refinements. Sourcing a unit at the correct MOD level is not a formality; it is a reliability decision.

Global Express Logistics

siemensplc.com ships from Xiamen, China — one of the most logistics-capable export cities in Asia, with direct DHL and FedEx Express hub access and daily flight connections to major international freight hubs in Hong Kong, Shanghai, and Guangzhou.

For urgent shutdown requirements, we offer same-day dispatch on orders confirmed before 14:00 CST. Typical transit times via DHL Express or FedEx International Priority:

• Southeast Asia (Singapore, Thailand, Malaysia, Indonesia): 24–48 hours
• Middle East (UAE, Saudi Arabia, Qatar, Kuwait): 48–72 hours
• Europe (Germany, Netherlands, UK, France): 48–72 hours
• North America (USA, Canada): 72–96 hours
• South Asia (India, Pakistan): 48–72 hours
• Australia / New Zealand: 48–72 hours

Every shipment includes a commercial invoice with accurate HS code classification, packing list, and certificate of origin — the complete documentation set required for customs clearance in regulated import markets. For buyers in the EU, US, or GCC who require additional compliance documentation (certificate of conformance, material traceability records), these are available upon request and included with the shipment at no additional charge.

We support DDP (Delivered Duty Paid), DAP (Delivered at Place), and EXW (Ex Works) Incoterms. For facilities that have experienced customs delays on previous industrial component imports, our freight forwarder team has established clearance procedures for the major destination markets and can advise on the optimal Incoterm and documentation package for your jurisdiction.

Payment is accepted via T/T bank transfer (USD, EUR, HKD, CNY), PayPal, and trade finance arrangements for qualified buyers. For shutdown emergencies, we can issue a proforma invoice within 30 minutes of inquiry confirmation to accelerate your internal approval process.
