Bently Nevada 330101-00-16-10-11-RU Proximity Probe – 3300 XL Series

Bently Nevada 330101-00-16-10-11-RU — Eddy Current Proximity Probe for Continuous Shaft Monitoring in API 670 Machinery Protection Systems

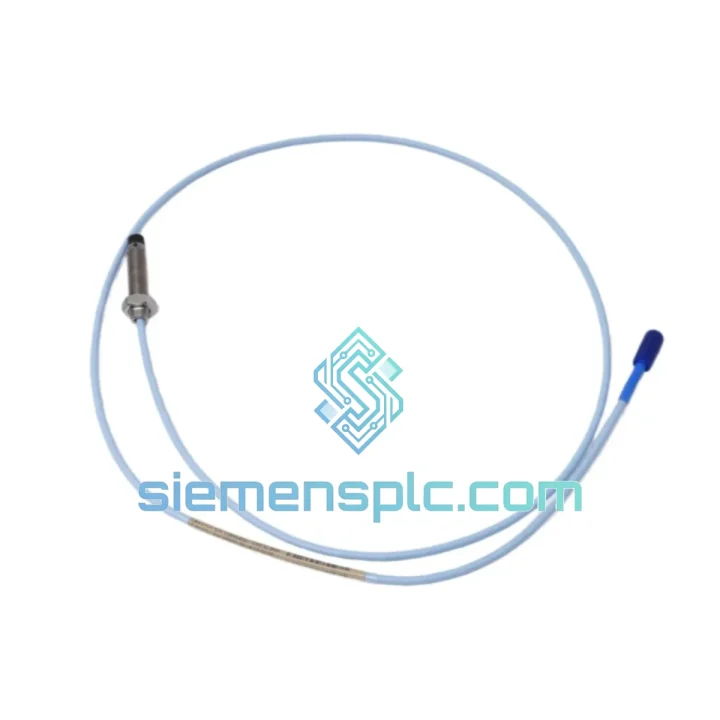

The 330101-00-16-10-11-RU is a 5 mm tip-diameter eddy current proximity probe manufactured by Bently Nevada as part of the 3300 XL transducer platform. It functions as the primary sensing element in a three-component measurement chain — probe, extension cable, and proximitor sensor — delivering a calibrated, DC-coupled output proportional to the air gap between the probe tip and a rotating shaft surface. The measurement principle is non-contact: an oscillator within the proximitor drives a radio-frequency electromagnetic field through the probe coil; as the conductive shaft surface enters this field, eddy currents are induced, loading the oscillator circuit in direct proportion to the gap distance. The resulting demodulated output is a linear voltage signal at 200 mV/mil (7.87 V/mm) sensitivity, traceable to the factory calibration performed on AISI 4140 steel targets.

The -RU suffix designates a variant certified for deployment in the Russian Federation under TR CU (Technical Regulations of the Customs Union) and applicable GOST standards. Electrically and mechanically, the probe is identical to the standard 330101 variant; the suffix affects only the certification documentation package shipped with the unit. This makes it the correct procurement choice for installations in Russian refineries, power stations, and petrochemical complexes where regulatory compliance documentation is a contractual requirement.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 330101 probe coil is wound on a ferrite core and encapsulated in a thermally stable epoxy compound rated to +177 °C. This encapsulation serves two functions: it mechanically fixes the coil geometry — preventing sensitivity drift caused by vibration-induced winding displacement — and it provides a hermetic barrier against process fluids, oil mist, and steam condensate. The M10 × 1.0 thread pitch is deliberately fine to allow precise axial positioning during installation; a 0.1 mm axial adjustment changes the static gap by 0.1 mm, which at 7.87 V/mm sensitivity shifts the DC bias output by approximately 787 mV — a measurable and controllable offset for commissioning engineers.

The 316 stainless steel housing provides corrosion resistance in H₂S-bearing atmospheres and chloride-rich environments common in offshore and coastal petrochemical installations. The gold-plated coaxial connector minimizes contact resistance variation over the operating temperature range, which is critical because the proximitor’s oscillator circuit is impedance-sensitive: connector resistance changes of even a few ohms can introduce a measurable sensitivity error at the system level.

EMC performance is achieved through the coaxial cable construction of the integral 1.0 m lead: the outer shield provides a continuous Faraday enclosure from the probe body to the connector, attenuating externally coupled RF interference that would otherwise appear as noise on the gap signal. In high-EMI environments — such as variable-frequency drive (VFD) motor rooms or switchgear bays — the coaxial architecture maintains signal integrity without requiring additional shielding conduit. The probe’s DC-to-10 kHz flat frequency response covers all rotating machinery fault frequencies of practical interest, including sub-synchronous instabilities (oil whirl at 0.43–0.48× running speed), synchronous unbalance, and higher-order harmonics up to the 10th order at 1,000 RPM shaft speed.

The -RU certification variant undergoes additional documentation review under TR CU 012/2011 (equipment for explosive atmospheres) and TR CU 020/2011 (electromagnetic compatibility), ensuring the unit meets the regulatory framework for certified installations in Russian industrial facilities without requiring field re-certification.

System Integration Benefits

• Zero mechanical wear on the shaft: Non-contact measurement eliminates probe-to-shaft contact, removing any possibility of probe-induced shaft scoring or fretting damage during continuous 24/7 operation.
• Deterministic signal latency: The DC-coupled output has no phase lag at frequencies below 10 kHz, ensuring that the monitoring rack or DCS receives a real-time representation of shaft position without signal processing delay that could mask transient fault events.
• Direct plug-and-play replacement: The 330101 probe mates directly with the 330130 extension cable and 3300 XL proximitor without recalibration, provided the total system cable length (probe integral + extension) matches the proximitor’s factory calibration length (5 m or 9 m).
• Diagnostic transparency via DC bias monitoring: The static DC output voltage at the proximitor provides a continuous indication of the probe-to-shaft gap. Trending this value over time reveals bearing wear, shaft centerline migration, and probe fouling — all without interrupting machine operation.
• Wide thermal operating envelope: The +177 °C upper limit allows installation in bearing housings adjacent to high-temperature process streams, eliminating the need for thermal standoffs or probe cooling arrangements in most turbine applications.
• IP67 sealing for washdown environments: The probe body withstands temporary immersion, making it suitable for installations in pump sumps, gearbox housings, and other locations subject to oil flooding or high-pressure cleaning.
• API 670 compliance for machinery protection: The probe meets the transducer performance requirements of API 670 5th Edition, ensuring compatibility with certified machinery protection systems used in safety-critical applications under IEC 61511 functional safety frameworks.
• TR CU / GOST certification for Russian market: The -RU suffix eliminates the need for in-country re-certification, reducing project commissioning timelines and regulatory compliance costs for installations in the Russian Federation.
• Broad target material compatibility with correction factors: While factory-calibrated on AISI 4140 steel, the probe can be used on Inconel, titanium, and aluminum shafts by applying published material correction factors, extending its applicability across diverse rotating equipment fleets.
• Coaxial EMC architecture: The shielded integral cable suppresses RF interference coupling from adjacent VFDs, contactors, and high-current bus bars, maintaining measurement accuracy in electrically noisy industrial environments without additional conduit shielding.

Quality Assurance & Global Logistics

Every 330101-00-16-10-11-RU unit dispatched from our Xiamen, China facility is sourced from authorized Bently Nevada distribution channels or verified surplus stock with full traceability documentation. Pre-shipment inspection covers housing integrity, connector contact condition, cable jacket continuity, and serial number / date code verification against Bently Nevada’s published manufacturing records to mitigate counterfeit risk — a documented concern in the industrial automation aftermarket.

Original OEM packaging is preserved where available. Calibration certificates, certificates of conformance (CoC), and material traceability records are provided at no additional charge upon request. Units in stock ship within 2 business days of payment clearance. For ex-stock or special-configuration requirements, a lead time quotation is issued within 24 hours of inquiry.

International shipments are dispatched from Xiamen via DHL Express, FedEx International Priority, or UPS Worldwide Expedited, with full export documentation including commercial invoice, packing list, and certificate of origin. For projects requiring Form E (ASEAN-China FTA), EUR.1, or end-user certificates (EUC), documentation support is available upon request. Typical transit times: Southeast Asia 2–4 days; Europe 3–5 days; North America 4–6 days; Middle East 3–5 days.

The 12-month warranty covers manufacturing defects under normal operating conditions. Warranty claims are processed upon return of the defective unit for inspection and failure analysis, with replacement or credit issued within 10 business days of receipt.
