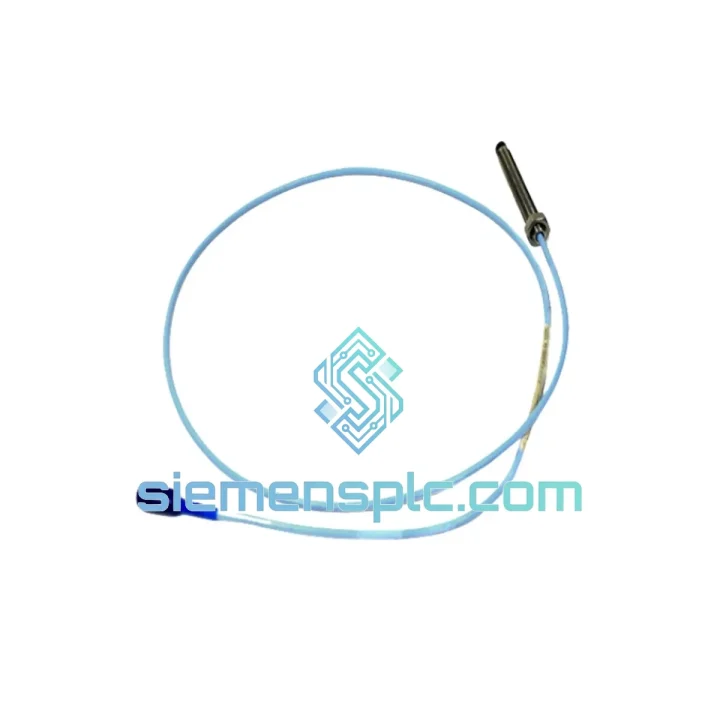

Bently Nevada 330101-00-28-10-02-05 Proximity Probe

330101-00-28-10-02-05 — Stop the Clock on Your Downtime. Ship Today.

Every hour a turbine or compressor sits idle costs real money — in lost throughput, in penalty clauses, in the pressure of a control room that won’t stop ringing. The Bently Nevada 330101-00-28-10-02-05 is one of the most field-replaced proximity probes in rotating machinery protection, and when it fails, you need a verified unit on a plane — not a two-week lead time from a distributor who has to “check stock.” We keep this part on the shelf in Xiamen. Same-day dispatch is standard, not a favour.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The 330101-00-28-10-02-05 fails in predictable ways. Knowing the failure signature before you pull the probe saves you from chasing ghosts in the monitor rack.

Fault Code: High Vibration / Not OK (NOK) Trip
Before condemning the probe, check the gap voltage at the driver output. A healthy 8 mm probe at nominal 1.0 mm gap should read approximately -10.5 VDC. If you’re reading -24 VDC (rail), the probe tip is open-circuit — cable fracture at the probe body is the most common cause, especially on machines with high-cycle thermal expansion. If you’re reading 0 VDC, suspect a shorted cable or a failed driver oscillator, not the probe itself.

Fault Code: Slow Roll Runout Spike
A sudden increase in 1X runout that wasn’t there during the last outage usually points to probe tip contamination (oil varnish, metallic debris) or a micro-crack in the stainless housing causing inconsistent eddy-current field geometry. Clean the tip with isopropyl alcohol first. If runout persists after cleaning and shaft surface inspection, swap the probe.

Replacement Procedure — Step by Step:

• Step 1 — Bypass the channel: In the 3500 rack, bypass the affected channel via the rack interface or software before removing the probe. This prevents a spurious trip during the swap.
• Step 2 — Record the gap voltage: Note the existing gap voltage before disconnecting. Your target after reinstallation is to match this value ±0.5 VDC. This tells you the new probe is seated at the same physical gap as the original.
• Step 3 — Thread engagement: The 3/8-24 UNF thread on this probe is fine-pitch. Do not use an impact tool. Hand-tighten to the bracket, then use a torque wrench — 5 to 7 N·m is the field-standard range for this probe body diameter. Over-torquing cracks the housing near the tip.
• Step 4 — Gap setting: Use a non-ferrous feeler gauge or a calibrated gap-setting tool. Target gap is machine-specific, but most OEM turbine specs call for 1.0 mm ± 0.05 mm for this probe/driver combination. Verify gap voltage at the driver: should be -10.5 VDC ± 0.5 VDC at 1.0 mm.
• Step 5 — Extension cable matching: This probe ships with a 28-inch integral cable. The total system cable length (probe + extension) must match the driver calibration. If your extension cable is 330130-045-00-00 (5 m), the combined system is calibrated for that length. Mixing cable lengths without recalibration shifts the scale factor and introduces measurement error.
• Step 6 — Remove bypass and verify: Remove the channel bypass, observe the vibration reading during slow roll. Compare 1X amplitude and phase to historical baseline. A deviation of more than 0.5 mil pk-pk from baseline warrants investigation before returning the machine to service.

Common Configuration Pitfall: The last two digits of the part number (-05) denote the connector type. Confirm your driver/extension cable connector matches before ordering. Ordering a -00 connector variant when your system uses -05 means the probe is mechanically correct but electrically incompatible at the junction.

Reliability in Harsh Conditions

The 330101-00-28-10-02-05 was not designed for a clean lab. It was designed for the bearing pedestals of gas turbines in the Middle East, the compressor trains of LNG plants in sub-zero Siberian winters, and the wet, vibration-saturated environment of offshore platform machinery decks. The 316 stainless steel housing resists H₂S, chloride-laden atmospheres, and steam impingement that would corrode lesser sensor housings within months. The armored integral cable is rated to 177 °C continuous — a specification that matters when the probe is routed near exhaust casings where ambient temperatures routinely exceed what most industrial cables can sustain.

Vibration endurance is not a marketing claim on this unit. The 3300 XL series was validated to IEC 60068-2-6 sinusoidal vibration profiles and IEC 60068-2-64 random vibration — the same test standards used for avionics and defense electronics. In practice, this means the probe body and cable termination maintain electrical continuity and measurement accuracy even when the machine it’s monitoring is running rough, which is exactly when you need the data to be trustworthy.

Moisture ingress is addressed at the connector level. The 02-pin connector with proper mating driver cable forms an IP-rated junction that resists wash-down, condensation, and the kind of humidity that accumulates inside turbine enclosures during cold startups. Field experience across petrochemical and power generation sites confirms that probe failures on this series are almost always mechanical (cable fracture, thread damage) rather than electronic — a testament to the robustness of the internal coil and oscillator circuit design.

Global Express Logistics

Our dispatch hub is in Xiamen, China — a city with direct DHL and FedEx gateway connections to major industrial hubs across Asia, the Middle East, Europe, and the Americas. When you place an order before 14:00 CST, the unit ships the same business day. No exceptions, no “we’ll try our best.”

Typical transit times from Xiamen:

• Southeast Asia (Singapore, Thailand, Malaysia, Indonesia): 1–2 business days via DHL Express
• Middle East (UAE, Saudi Arabia, Qatar, Kuwait): 2–3 business days via FedEx International Priority
• Europe (Germany, Netherlands, UK, France): 3–4 business days via DHL Express Worldwide
• North America (USA, Canada): 3–5 business days via FedEx International Priority
• South America (Brazil, Chile, Colombia): 4–6 business days via DHL Express
• Africa (South Africa, Nigeria, Egypt): 4–7 business days via DHL Express

Every shipment includes a commercial invoice, packing list, and certificate of origin. For customers requiring FORM E (ASEAN preferential tariff) or EUR.1 movement certificates, request at time of order. We handle export classification in-house — HS Code 9026.80 for proximity sensors — so your customs broker receives a clean, compliant documentation package that clears without delays.

For critical plant shutdowns where every hour counts, we offer a dedicated emergency logistics channel. Contact us via WhatsApp at +86 18359268345 and specify “EMERGENCY DISPATCH” — we will confirm stock, generate the airway bill, and send you the tracking number within 2 hours of payment confirmation.
