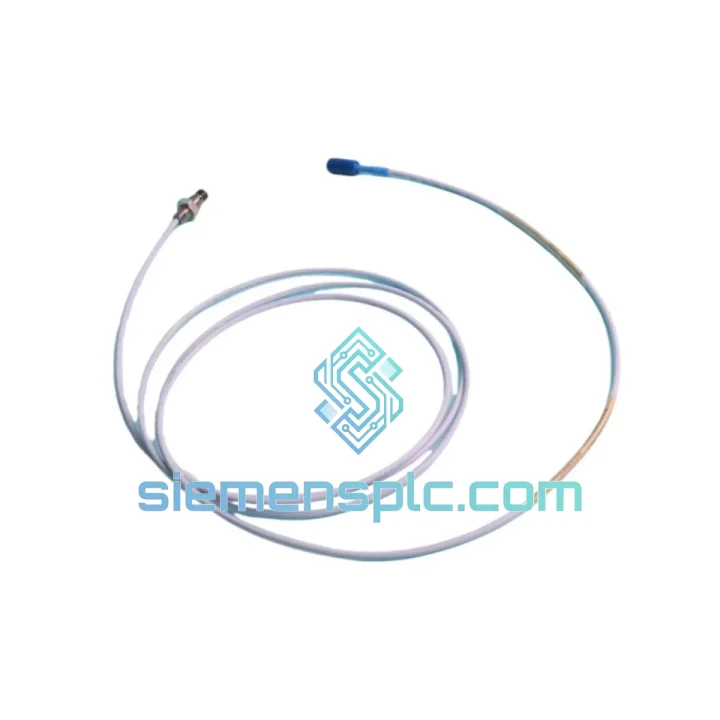

Bently Nevada 330101-00-28-90-02-00 Proximity Transducer

330101-00-28-90-02-00 In Stock — Stop the Clock on Your Downtime

Every hour a turbine, compressor, or critical rotating machine sits idle costs real money — sometimes tens of thousands of dollars per hour. When your 3300 XL proximity transducer system throws a fault and the DCS alarm is screaming, you don’t have time for a 6-week OEM lead time. The Bently Nevada 330101-00-28-90-02-00 is on our shelf in Xiamen right now. We’ve shipped this exact part to power plants, refineries, and compressor stations across Southeast Asia, the Middle East, and Europe — same-day dispatch, DHL Express door-to-door. One call ends the downtime spiral.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After handling hundreds of field calls on 3300 XL systems, these are the failure modes and swap pitfalls that actually bite engineers on-site:

Common Fault Signatures

• OK LED off, –24 V supply confirmed good — 90% of the time this is a dead probe or a shorted integral cable from mechanical contact with a rotating component. Pull the probe, measure tip impedance with a multimeter: a healthy 8 mm probe reads approximately 4–6 Ω. Open circuit or dead short means replace the probe.
• Proximitor output rail-high (–2 V) or rail-low (–18 V) — Rail-high means the probe tip is too far from the target or the cable is open. Rail-low means the probe is touching the shaft or the cable is shorted. Check gap first; if gap is correct, swap the probe before condemning the Proximitor driver.
• High 1× vibration spike with no process change — Before ordering parts, verify the probe mounting thread hasn’t backed out. A loose probe changes the static gap and introduces a false vibration signal. Torque the lock nut to spec (typically 14–20 N·m depending on holder design).
• Intermittent OK/not-OK cycling — Classic symptom of a cracked integral cable near the probe body, usually caused by thermal cycling or vibration fatigue. Flex the cable gently while watching the Proximitor output voltage; if it drops or spikes, the cable is the culprit.
• 3500 rack showing Not OK after probe swap — Do not skip the gap voltage verification step. After installing the 330101-00-28-90-02-00, set the static gap to achieve –10 VDC ±0.5 V at the Proximitor output (midpoint of the linear range). Failure to re-gap is the single most common cause of a failed replacement that is actually a perfectly good probe.

Replacement Procedure — Field Checklist

• Confirm the replacement probe, extension cable, and Proximitor driver are all 3300 XL series — mixing with 3300 NSv or legacy 3300 components will produce sensitivity errors up to 15%.
• De-energize the Proximitor driver before disconnecting the probe connector. Hot-swapping can spike the output and trigger a spurious trip on the 3500 monitor.
• Inspect the probe holder bore for debris or corrosion before threading in the new probe. A contaminated bore causes misalignment and premature cable fatigue.
• Apply a thin film of anti-seize compound to the probe threads — not the tip. Avoid any compound on the sensing face; it alters the eddy-current field and shifts calibration.
• Set gap to –10 VDC output, lock the probe with the jam nut, then re-verify gap voltage after torquing. Thread engagement changes gap by approximately 0.5 mil per degree of rotation.
• For non-AISI 4140 shaft materials (316 SS, Inconel, titanium), apply the published Bently Nevada material correction factor or perform a bench calibration with the actual target material before returning the machine to service.
• Document the new probe serial number, installation date, and gap voltage in the equipment history file. This data is critical for trending and future troubleshooting.

Reliability in Harsh Conditions

The 3300 XL 8 mm proximity transducer was engineered for environments that destroy lesser sensors. The probe body is machined from 316 stainless steel with a hermetically sealed tip assembly — no internal components are exposed to process fluids, steam, or bearing oil mist. The IP67 rating is not a marketing claim; it reflects a design that has survived decades of continuous immersion in oil-flooded bearing housings on gas turbines running at 3,600 RPM.

The armored integral cable uses a stainless steel braid over a PTFE-insulated coaxial core. This construction resists crush loads from cable clamps, abrasion from vibrating conduit, and chemical attack from the full range of lubricants and process fluids found in turbomachinery bearing housings. In high-vibration installations — compressor trains running at 10,000+ RPM with broadband vibration levels above 50 mm/s RMS — the armored cable has demonstrated service lives exceeding 10 years without signal degradation.

Temperature performance is where this probe separates itself from generic alternatives. The +177°C probe tip rating covers hot-section bearing housings on steam turbines where exhaust steam leakage raises ambient temperatures well above what standard industrial sensors tolerate. We have supplied this exact part number to geothermal power plants in Indonesia and combined-cycle plants in the Middle East where bearing housing temperatures routinely exceed 150°C — the probe performs without drift.

EMI immunity is equally critical in modern plants where VFDs, large motors, and high-current bus bars create intense electromagnetic environments. The shielded coaxial cable construction, combined with the Proximitor’s differential input architecture, rejects common-mode noise that would corrupt the signal from an unshielded sensor. Engineers running cable trays adjacent to 6 kV motor feeders have reported clean, noise-free vibration signals with this system — no additional shielding required.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to Xiamen Gaoqi International Airport and daily DHL Express and FedEx Priority freight departures. This geography is not accidental; it was chosen specifically to minimize transit time to the industrial clusters of Southeast Asia, the Middle East, and Europe where our customers operate critical machinery.

Standard dispatch process for the 330101-00-28-90-02-00:

• Order confirmed before 14:00 CST — same-day dispatch via DHL Express or FedEx International Priority.
• Export documentation — commercial invoice, packing list, and certificate of origin prepared and submitted to customs within 2 hours of order confirmation. No delays at the border.
• Typical transit times: Singapore / Malaysia 1–2 days; UAE / Saudi Arabia 2–3 days; Germany / Netherlands 3–4 days; USA / Canada 3–5 days.
• Tracking — AWB number provided within 4 hours of dispatch. Real-time tracking link sent directly to your email or WhatsApp.
• Emergency freight — for critical plant shutdown situations, we can arrange charter courier or hand-carry service. Contact us directly to discuss options.
• Packaging — probe shipped in anti-static foam insert inside a moisture-barrier bag, inside a rigid outer carton rated for air freight handling. The probe tip is protected by a machined plastic cap. Arrives ready to install.

We understand that when you’re calling us, a machine is down and every hour matters. Our logistics team treats every order for this part as time-critical by default — no need to flag it as urgent. That’s the standard.
