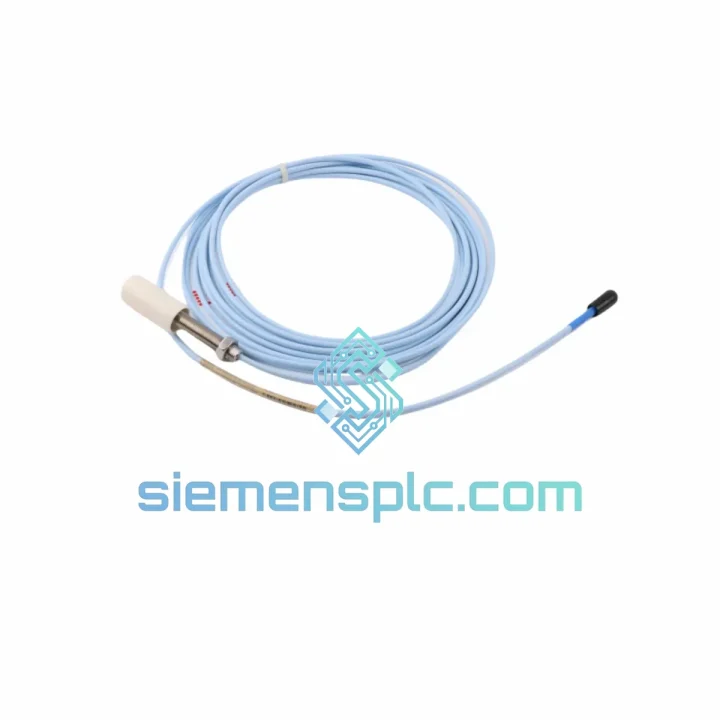

Bently Nevada 330101-00-30-50-02-00 Proximity Probe – 3300 XL Series

Bently Nevada 330101-00-30-50-02-00 — 8 mm Eddy-Current Proximity Probe for Shaft Vibration and Axial Position Measurement

The Bently Nevada 330101-00-30-50-02-00 is a precision eddy-current proximity probe belonging to the 3300 XL 8 mm Proximity Transducer System. It performs non-contact, continuous measurement of shaft radial vibration displacement, axial thrust position, and differential expansion in high-speed rotating machinery. The probe operates as part of a three-component matched system — probe, extension cable, and Proximitor® oscillator-demodulator — where each element is factory-calibrated together to maintain a nominal scale factor of 7.87 V/mm (200 mV/mil) across the full operating temperature envelope. This matched-system architecture is the foundation of API 670 5th Edition compliance and is the primary reason the 330101 series remains the dominant proximity transducer specification in turbomachinery protection systems globally.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 330101-00-30-50-02-00 probe operates on the Lenz’s law induction principle. A high-frequency oscillator within the Proximitor® driver — typically operating at 1.0 MHz carrier frequency — drives an alternating current through the probe’s internal coil. This coil generates an electromagnetic field that penetrates the conductive shaft target. As the shaft surface moves relative to the probe tip, eddy currents induced in the target material alter the coil’s impedance. The Proximitor demodulates this impedance change into a DC voltage proportional to gap distance, superimposed with an AC component representing dynamic shaft displacement.

EMC and Shielding Architecture: The integral armored coaxial cable uses a triaxial construction — inner signal conductor, driven shield (bootstrapped to signal potential to eliminate cable capacitance loading), and outer ground shield. This arrangement suppresses common-mode interference from adjacent high-voltage cabling, variable-frequency drives, and bus-bar fields typical in turbine hall environments. The probe body itself is constructed from 316 stainless steel with a PEEK (polyether ether ketone) tip insert, providing both mechanical rigidity and dielectric isolation that prevents ground-loop currents from corrupting the measurement signal.

Thermal Stability and Drift Compensation: The 3300 XL system’s scale factor tolerance of ±1% across –35 °C to +177 °C is achieved through matched thermal characterization of the probe coil, extension cable, and Proximitor driver as a unit. The Proximitor’s internal temperature compensation circuit adjusts oscillator drive amplitude to counteract coil resistance drift (approximately +0.39% per °C for copper windings), maintaining gap voltage linearity without field recalibration. This is critical for axial thrust position channels where a 25 µm drift at the protection setpoint boundary can trigger a spurious shutdown in a 500 MW steam turbine.

Target Material Characterization: The probe is factory-calibrated on AISI 4140 steel (relative permeability µr ≈ 100, electrical conductivity σ ≈ 4.0 MS/m). For alternative shaft alloys — 4340, 17-4PH stainless, Inconel 718, or titanium — the eddy-current penetration depth and induced loss vary with µr and σ, shifting the effective scale factor by up to ±8%. Bently Nevada provides material correction factors (MCFs) for common alloys, which must be applied to the Proximitor’s calibration potentiometer or entered as a software gain correction in the 3500 rack monitor to maintain measurement accuracy.

System Integration Benefits

• API 670 Compliance Without Re-qualification: The 330101 series is explicitly referenced in API 670 5th Edition as a compliant proximity transducer. Specifying this model eliminates the engineering effort and documentation burden of qualifying an alternative sensor against the standard’s accuracy, frequency response, and temperature requirements.
• Deterministic Latency in Protection Loops: The DC-coupled output path from probe to Proximitor to 3500 rack monitor introduces less than 2 ms signal latency. Combined with the 3500 monitor’s 20 ms voting logic cycle, the total protection response time is well within the 100 ms trip requirement for API 670 overspeed and high-vibration protection channels.
• Direct Analog Integration with Major DCS Platforms: The Proximitor’s 4–20 mA or ±10 V output maps without signal conditioning to Emerson DeltaV AI cards (HART-enabled), Honeywell Experion C300 analog inputs, ABB 800xA S800 I/O, and Siemens SIMATIC S7-400 SM 431 analog input modules, reducing panel wiring complexity.
• Rotor Orbit Reconstruction: Two probes mounted at 90° (X–Y configuration) at each bearing journal provide orthogonal displacement vectors. The 3500 monitor’s orbit display reconstructs the shaft centerline path in real time, enabling engineers to distinguish between synchronous (1×) imbalance, sub-synchronous instability (oil whirl/whip), and super-synchronous gear mesh excitation without additional instrumentation.
• Continuous Self-Diagnostics via Gap Voltage Monitoring: The Proximitor outputs a static DC gap voltage (nominally –10 VDC at mid-range) that the 3500 monitor checks against configurable Not-OK limits (typically –2 VDC and –18 VDC). A gap voltage outside these limits triggers a channel Not-OK alarm, indicating probe damage, cable open-circuit, or target loss — providing diagnostic transparency without manual inspection.
• Hazardous Area Deployment Without Additional Barriers: The ATEX Ex ia IIC T6 Ga and FM Class I Division 1 approvals allow direct installation in Zone 0 explosive atmospheres (continuous gas presence) when paired with a certified Zener barrier or galvanic isolator. This eliminates the need for purged enclosures in offshore platform and refinery compressor train installations.
• Long-Term Calibration Stability: The eddy-current sensing principle is inherently drift-free over time — there are no moving parts, no wear surfaces, and no consumable elements. Field experience documents stable scale factors within ±0.5% over 10-year continuous service intervals in steam turbine bearing housings, reducing maintenance calibration intervals and associated production downtime.
• Scalable to Redundant and SIL-Rated Architectures: The probe’s output can be wired to dual Proximitor drivers feeding independent 3500 monitor channels, supporting 1oo2 or 2oo3 voting logic for SIL 2 protection functions per IEC 61511. This architecture is required in LNG liquefaction trains and nuclear auxiliary systems where spurious trip rates must be minimized alongside demand-mode PFD targets.

Quality Assurance & Global Logistics

Every Bently Nevada 330101-00-30-50-02-00 unit supplied by siemensplc.com is sourced through verified industrial distribution channels and undergoes a structured incoming inspection protocol before dispatch. Each probe is checked for original OEM packaging integrity, label authenticity, and serial number traceability against Bently Nevada factory records where available. Units are stored in ESD-safe, climate-controlled warehousing in Xiamen, China, maintaining probe coil and cable assembly integrity during storage.

Shipment from Xiamen covers global destinations with the following logistics options: DHL Express (3–5 business days to Europe, North America, Southeast Asia), FedEx International Priority (2–4 business days to the United States and Canada), and sea freight consolidation for volume orders exceeding 20 units. All shipments include a commercial invoice, packing list, and certificate of conformance. Hazardous area documentation (ATEX/IECEx certificates) is included as standard. Expedited same-day dispatch is available for orders confirmed before 14:00 CST.

A 12-month warranty covers manufacturing defects under normal operating conditions. Warranty claims are processed with a replacement unit dispatched within 5 business days of defect confirmation, minimizing machinery downtime exposure for the end user.
