Bently Nevada 330101-00-34-15-02-05 Proximity Probe – 3300 XL 8mm

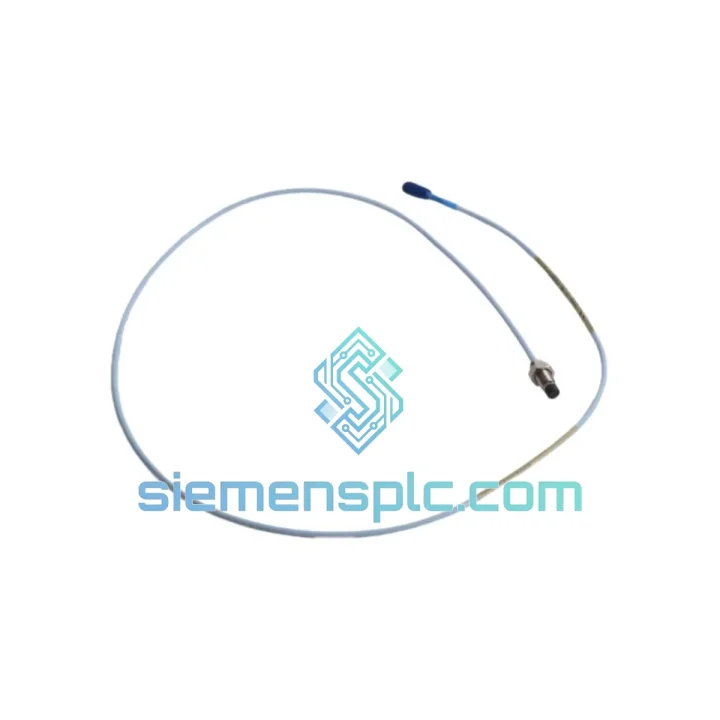

Bently Nevada 330101-00-34-15-02-05: Eddy Current Proximity Probe for Rotating Machinery Shaft Monitoring

The Bently Nevada 330101-00-34-15-02-05 is an 8 mm eddy current proximity probe belonging to the 3300 XL Proximity Transducer System. Its primary function within a machinery protection control loop is continuous, non-contact measurement of radial shaft vibration, axial position (thrust), differential expansion, and eccentricity on rotating equipment operating at speeds from near-zero to beyond 100,000 RPM. Unlike piezoelectric accelerometers that measure casing-referenced vibration, this probe measures shaft-referenced displacement directly — a distinction that is architecturally critical for API 670-compliant machinery protection systems where shaft orbit analysis and centerline tracking are mandatory diagnostic outputs.

The suffix string 00-34-15-02-05 encodes the complete physical configuration: 00 = standard probe body, 34 = 34-inch (864 mm) armored integral cable, 15 = 15-foot (4,572 mm) extension cable, 02 = standard connector, 05 = 5-meter driver cable. This matched-length system is factory-calibrated as a set. Substituting any individual component without recalibrating the complete probe-extension-driver chain will shift the output sensitivity from the nominal 200 mV/mil (7.87 V/mm) and introduce non-linearity errors across the 0–90 mil (0–2.29 mm) linear range — a failure mode that monitoring racks cannot self-detect without a known-gap reference.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 330101-00-34-15-02-05 operates on the Lenz’s Law inductive principle: the probe tip coil, driven by a high-frequency oscillator within the paired driver/oscillator-demodulator, generates an alternating electromagnetic field. When a conductive target (shaft) enters this field, eddy currents are induced on the target surface, loading the coil and reducing its oscillation amplitude. The driver circuit converts this amplitude modulation into a DC voltage proportional to the gap distance between probe tip and shaft surface.

EMC Design Architecture: The 3300 XL probe body is constructed with a ferrite-shielded coil assembly that confines the sensing field to a tightly controlled axial cone — nominally 1.5× the probe tip diameter in sensing radius. This geometry minimizes cross-axis sensitivity and rejects electromagnetic interference from adjacent probes, motor windings, and high-current bus bars. The stainless steel armor on the 34-inch integral cable provides both mechanical protection and a continuous Faraday shield, grounded at the driver end only, preventing ground loop formation that would appear as low-frequency noise on the output signal.

Thermal Stability: The probe coil is wound with a temperature-compensated wire alloy. Over the −35°C to +177°C operating envelope, sensitivity drift is maintained within ±1% of nominal — a specification that matters in steam turbine casings where probe body temperatures can cycle 80°C between cold startup and full-load operation. Without this compensation, thermal expansion of the coil former would shift the resonant frequency of the LC tank circuit, producing a false DC offset indistinguishable from actual shaft movement.

Cable Impedance Matching: The 34-15-02-05 cable length combination is not arbitrary. The total cable capacitance of the probe-extension pair forms part of the oscillator tank circuit. Bently Nevada factory-calibrates each probe-extension-driver set as a matched impedance system. The 34-inch integral cable and 15-foot extension are selected to achieve a specific total capacitance that keeps the oscillator operating within its linear demodulation region. Field-cutting or splicing cables without recalibration will alter tank capacitance, shift the oscillator frequency, and compress or expand the linear output range — typically manifesting as a reduced gap voltage at the standard 50-mil (1.27 mm) calibration gap.

Redundancy Compatibility: In dual-probe redundant configurations (common on API 670 critical machinery), two 330101-series probes are mounted 90° apart on the same shaft journal. The 3500 monitoring rack performs vector summation of the two orthogonal displacement signals to compute shaft orbit — a Lissajous figure that reveals imbalance, misalignment, oil whirl, and rub signatures. The probe’s tight sensitivity tolerance (±10%) ensures that the orbit computation remains geometrically accurate without per-channel gain correction in the rack.

System Integration Benefits

• Zero-wear measurement continuity: Non-contact eddy current sensing imposes no mechanical load on the rotating shaft. There is no probe wear, no lubrication requirement, and no periodic replacement interval driven by contact fatigue — enabling continuous 24/7/365 operation across the full machine lifecycle.
• Direct shaft-referenced displacement: Unlike casing-mounted accelerometers, the proximity probe measures actual shaft position relative to the bearing housing. This distinction is architecturally essential for detecting oil whirl, oil whip, and shaft rub — failure modes that produce minimal casing vibration but large shaft displacement amplitudes.
• API 670 system compliance: The 330101-00-34-15-02-05 is a qualified component within Bently Nevada’s API 670-compliant protection system. Deploying it within a 3500-series rack satisfies the standard’s requirements for voting logic, alarm setpoint management, and self-diagnostic coverage without additional engineering justification.
• Deterministic output latency: The eddy current demodulation chain from probe tip to driver output introduces a signal delay of less than 1 ms. Combined with the 3500 rack’s 20 ms worst-case trip response time, the total protection loop latency is well within the mechanical time constants of any rotating machine — ensuring that a developing rub or bearing failure triggers a protective shutdown before secondary damage propagates.
• Broadband frequency response: The 3300 XL system maintains flat frequency response from DC (static position) to 10 kHz. This bandwidth captures not only 1× and 2× running speed vibration components but also sub-synchronous instabilities (oil whirl at 0.43–0.48×) and high-order blade-pass frequencies on compressors and fans — all within a single transducer channel.
• Diagnostic transparency via gap voltage: The DC component of the probe output encodes the static gap distance. Operators can read the gap voltage at any time to verify probe installation clearance, detect shaft centerline migration due to bearing wear, and confirm that the probe remains within its linear range — without interrupting machine operation or removing any instrumentation.
• Drop-in field replacement: The 330101-00-34-15-02-05 is dimensionally and electrically interchangeable with all prior 330101 series probes of the same suffix configuration. No rack reconfiguration, no sensitivity rescaling, and no recalibration of alarm setpoints is required — reducing planned maintenance outage duration to the time required for physical probe swap and gap setting verification.
• Multi-parameter measurement from a single channel: Depending on mounting orientation and rack configuration, a single probe channel can be assigned to radial vibration, axial position, differential expansion, or eccentricity measurement. This architectural flexibility allows machinery protection engineers to optimize probe count and cable routing without deploying separate transducer technologies for each measurement parameter.

Quality Assurance & Global Logistics

Every Bently Nevada 330101-00-34-15-02-05 unit dispatched from our Xiamen, China facility undergoes a structured pre-shipment verification protocol. Physical inspection covers probe tip geometry, coil continuity (measured with a calibrated LCR meter against factory-specified inductance range), connector pin integrity, cable armor condition, and label authenticity against Bently Nevada factory documentation. Part number suffix verification is performed character-by-character — the 34-15-02-05 configuration is confirmed against the physical cable lengths measured on each unit, not assumed from packaging.

Units are packed in anti-static foam-lined cases with desiccant inserts. Each shipment includes a traceability document recording the unit serial number, inspection date, inspector ID, and measured coil inductance value. For customers requiring it, third-party inspection reports from SGS or Bureau Veritas can be arranged prior to shipment.

Logistics from Xiamen port to major industrial hubs: DHL Express to Houston or Rotterdam in 3–5 business days; FedEx International Priority to Singapore or Dubai in 2–4 business days; sea freight consolidation available for multi-unit orders. Full export documentation — commercial invoice, packing list, certificate of origin, and HS code declaration (HS 9031.80) — is prepared for every international shipment. Customers in ATEX-regulated jurisdictions receive system-level conformity documentation on request.

All units are covered by a 12-month warranty from the shipment date against manufacturing defects and premature failure under normal operating conditions. Warranty claims are processed within 5 business days of receipt of the returned unit.
