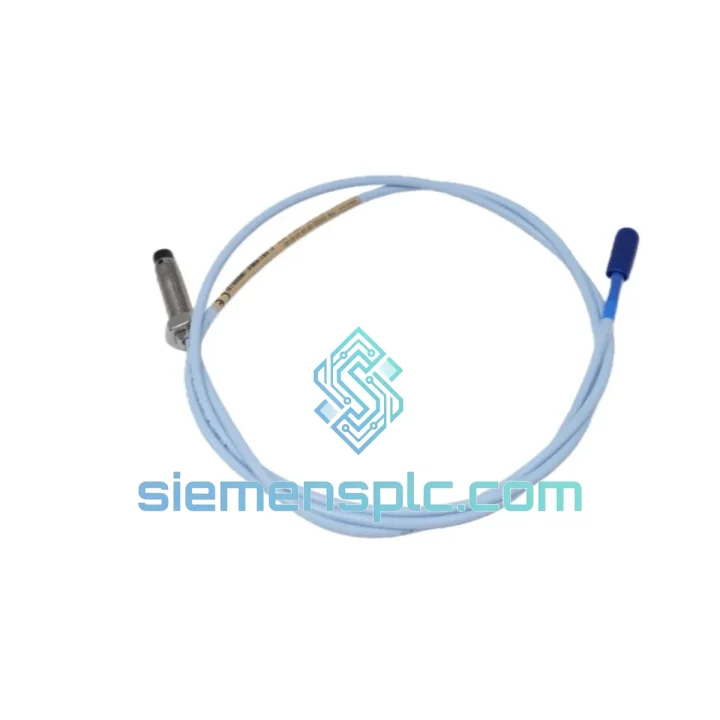

Bently Nevada 330101-00-37-05-02-00 Proximity Probe – 3300 XL Series

Bently Nevada 330101-00-37-05-02-00: 8mm Eddy Current Proximity Probe for API 670 Rotating Machinery Protection

The Bently Nevada 330101-00-37-05-02-00 is an 8mm eddy current proximity probe belonging to the 3300 XL Proximity Transducer System — a platform that has defined the measurement standard for shaft vibration and position monitoring in critical rotating machinery for over three decades. This specific SKU carries a 5-metre (16.4 ft) factory-integrated armored cable, M10×1.0 thread, and is calibrated for direct pairing with the 3300 XL 8mm Proximitor signal conditioner.

In a machinery protection architecture, the proximity probe is the first element in the measurement chain. Its output accuracy, thermal stability, and long-term calibration retention directly determine the reliability of every alarm and trip decision made downstream by the monitor rack. Selecting a verified, OEM-specification probe is therefore not a component decision — it is a system integrity decision.

siemensplc.com maintains stock of the 330101-00-37-05-02-00 for B2B procurement teams requiring shelf-ready, inspection-verified units with full export documentation. Inquiries for volume pricing, lead time, and technical compatibility are handled directly by our engineering-literate sales team.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The operating principle of the 330101-00-37-05-02-00 is grounded in the physics of electromagnetic induction. The probe tip houses a wound coil driven by a high-frequency oscillator circuit located in the paired Proximitor. This oscillator generates an alternating electromagnetic field that radiates axially from the probe face. When a conductive target — the rotating shaft — enters this field, eddy currents are induced on the target surface. These eddy currents create a counter-magnetic field that loads the oscillator, reducing its amplitude in direct proportion to the probe-to-target gap distance. The Proximitor demodulates this amplitude change and outputs a DC voltage signal: –2 VDC at minimum gap (0.25 mm) and –18 VDC at maximum gap (2.25 mm), with a linear scale factor of 7.87 V/mm.

Calibration System Matching: The 330101-00-37-05-02-00 is not a standalone sensor — it is one leg of a three-element calibrated system (probe + extension cable + Proximitor). The integral 5-metre cable is factory-characterized as part of the probe assembly. Its distributed capacitance and inductance are accounted for in the Proximitor’s oscillator tuning. Substituting a different cable length or a non-matched extension cable will shift the effective scale factor and introduce measurement error that is not detectable without a full system recalibration. This is why the SKU suffix encodes cable length: the “05” in position four of the part number designates the 5-metre cable configuration.

EMC Design: The armored cable construction provides a continuous coaxial shield from probe tip to connector, attenuating radiated interference from adjacent high-voltage cabling, variable-frequency drives, and motor starters — all common in turbomachinery environments. The 316 stainless steel housing provides both corrosion resistance and a Faraday-effect mechanical shield around the coil assembly. The –24 VDC supply architecture means the signal path operates at low impedance relative to common-mode noise sources, further improving rejection of ground-loop interference in multi-machine installations where monitor racks share a common DC bus.

Thermal Stability: The probe coil is wound on a thermally stable ceramic former. Over the operating range of –35 °C to +177 °C, the scale factor drift is held within the tolerance band specified in Bently Nevada’s calibration standard. This is critical for hot-section installations — bearing housings on gas turbines and high-pressure compressors routinely reach 120–160 °C at the probe mounting boss, and any thermally induced sensitivity shift would manifest as a false DC offset in the vibration baseline, potentially masking real machinery changes or generating nuisance alarms.

System Integration Benefits

• Direct API 670 compliance path: Meets transducer performance requirements of API 670 (5th Edition) for radial vibration, axial position, and differential expansion measurement, eliminating third-party compliance verification when used in a complete 3300 XL or 3500 system.
• Zero-recalibration replacement: Form-fit-function replacement for any existing 330101-XX-37-05-02-00 installation. Swap during planned outage without monitor rack recalibration, reducing maintenance window duration.
• Deterministic DC-to-10 kHz bandwidth: Flat frequency response captures the full rotor dynamic spectrum — from slow-roll eccentricity at startup through synchronous 1× and 2× vibration to high-frequency sub-harmonic instabilities — within a single measurement channel.
• Non-contact operation eliminates wear-related drift: No mechanical interface with the rotating shaft means no wear mechanism degrades measurement accuracy over time. Suitable for continuous, unattended operation across multi-year maintenance intervals.
• IP67 ingress protection: Sealed 316 SS housing allows installation in bearing housings exposed to lube oil mist, steam leakage, and periodic wash-down — conditions that degrade optical or capacitive sensor alternatives.
• Plug-and-play Proximitor pairing: The 5-metre cable is pre-matched to the 3300 XL 8mm Proximitor. No field trimming, impedance adjustment, or oscillator retuning required at commissioning. Ready for gap-setting and alarm configuration immediately after mechanical installation.
• Broad target material compatibility: Calibrated for AISI 4140 steel with published scale factor correction data for 17-4 PH stainless, Inconel 718, and titanium alloys, allowing deployment across mixed-material rotor fleets without stocking multiple probe variants.
• Diagnostic transparency via gap voltage monitoring: The DC component of the Proximitor output provides continuous real-time indication of probe installation gap. Operators can monitor gap voltage drift to detect probe loosening, thread wear, or shaft centerline migration — a secondary diagnostic channel beyond the vibration measurement itself.

Quality Assurance & Global Logistics

Every unit of the 330101-00-37-05-02-00 dispatched from siemensplc.com is sourced through verified industrial supply channels with documented traceability. Pre-shipment inspection covers physical integrity of the probe tip and housing, connector pin condition and seating, cable armor continuity, and label/serialization verification against manufacturer records. Units with evidence of rework, remarking, or non-OEM connector replacement are rejected at intake.

siemensplc.com operates from Xiamen, China — a designated free-trade port with direct access to international express freight networks. Xiamen Gaoqi International Airport and the Port of Xiamen provide daily DHL, FedEx, and UPS consolidation services to major industrial hubs in Southeast Asia, the Middle East, Europe, and the Americas. Standard export documentation — commercial invoice, packing list, certificate of origin, and HS code declaration — is prepared for every shipment to facilitate smooth customs clearance. For time-critical plant shutdowns, same-day dispatch on in-stock units is available for orders confirmed before 14:00 CST.

Payment is accepted via T/T bank transfer, PayPal, and major credit cards. Multi-currency invoicing (USD, EUR, HKD) is supported. A 12-month warranty covers manufacturing defects under normal operating conditions. RMA processing is handled directly by our technical team without third-party intermediaries.
