Bently Nevada 330101-00-52-10-02-CN Proximity Probe – 3300 XL Series

Bently Nevada 330101-00-52-10-02-CN: Eddy-Current Proximity Probe for Continuous Shaft Dynamics Measurement

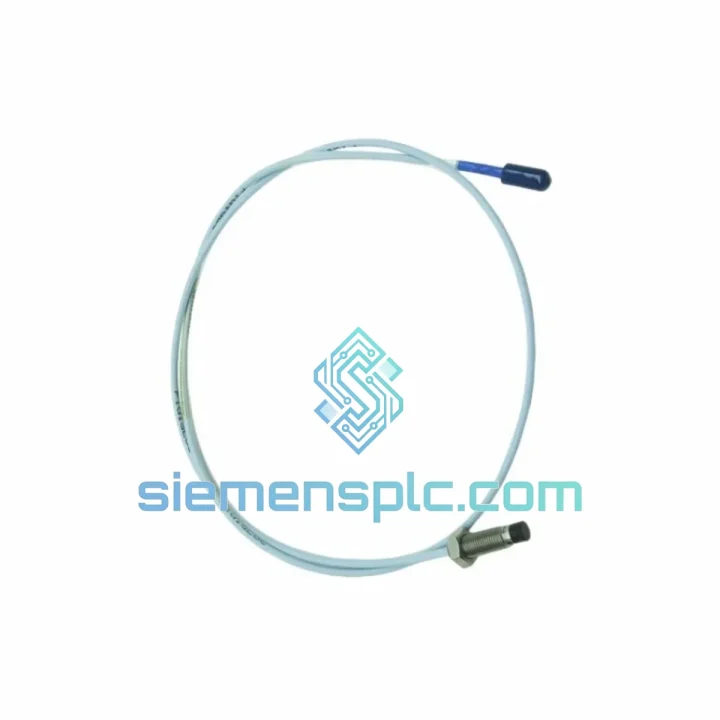

The 330101-00-52-10-02-CN is a 5 mm eddy-current proximity probe from Bently Nevada’s 3300 XL Series, designed for non-contact, continuous measurement of shaft radial vibration, axial displacement, and differential thermal expansion in rotating machinery. Operating on the eddy-current induction principle, the probe generates a high-frequency oscillating electromagnetic field at its tip. When a conductive target surface enters this field, induced eddy currents attenuate the field amplitude in direct proportion to the air gap distance. The Proximitor driver converts this attenuation into a calibrated DC voltage output, delivering a linear, low-noise signal suitable for direct input to machinery protection racks and condition monitoring systems.

Within a turbomachinery protection loop, the 330101-00-52-10-02-CN occupies the first stage of the signal chain — the physical transducer layer. Its measurement accuracy and frequency bandwidth directly determine the fidelity of every downstream alarm, trip, and trend record. A probe with insufficient bandwidth will alias high-frequency sub-synchronous instabilities; a probe with poor linearity will introduce systematic offset errors into axial position setpoints. The 3300 XL platform addresses both constraints through a tightly controlled manufacturing process and a calibrated probe-driver pairing protocol.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 330101-00-52-10-02-CN probe body is constructed from 316L stainless steel with a PEEK (polyether ether ketone) tip encapsulant. PEEK’s dielectric constant of approximately 3.2 remains stable across the full operating temperature range, preventing thermal drift in the oscillator tank circuit that would otherwise manifest as a false gap shift at elevated bearing temperatures. The coil winding geometry is optimized for a 5 mm tip diameter, producing a sensing field depth of approximately 2.5 mm — sufficient to resolve the full linear range without field saturation at minimum gap.

The integral 5 m coaxial cable uses a low-loss dielectric with a characteristic impedance matched to the Proximitor driver input. Impedance mismatch in eddy-current probe cables introduces standing wave reflections that corrupt the oscillator Q-factor, degrading sensitivity linearity. The factory-matched cable eliminates this variable, ensuring the calibration curve stored in the Proximitor driver remains valid across the full cable run.

EMC performance is achieved through a continuous coaxial shield bonded at both the probe body and the driver connector. This single-point grounding topology suppresses common-mode interference from variable-frequency drives, high-current bus bars, and RF sources common in turbine hall environments. The shield continuity is maintained through the armored outer jacket, which also provides mechanical protection against abrasion in confined bearing housing installations.

The “-CN” connector suffix specifies a coaxial termination style that mates directly with the 3300 XL Proximitor driver input without an adapter. This eliminates an additional connector junction — each additional junction in a coaxial signal path introduces a potential impedance discontinuity and a corrosion site. In high-humidity or salt-laden environments, connector integrity is a primary failure mode; the direct-mate CN configuration reduces this risk.

Thermal compensation within the 3300 XL system is handled at the driver level through a temperature-coefficient correction algorithm. The probe’s contribution to thermal error is bounded by the PEEK tip material’s low thermal expansion coefficient (47 ppm/°C), which keeps the coil-to-tip geometry stable across the −35 °C to +177 °C operating envelope. This is particularly relevant in hot-section steam turbine bearing pedestals where ambient temperatures can exceed 120 °C during steady-state operation.

System Integration Benefits

• API 670 Fifth Edition Compliance: The 330101-00-52-10-02-CN meets all transducer requirements of API 670 for radial vibration and axial position channels, enabling direct use in machinery protection systems without additional qualification testing.
• Direct 3500 Series Rack Compatibility: When paired with a 3300 XL Proximitor driver, the output signal is fully compatible with Bently Nevada 3500 Series rack input cards for both vibration and position channels — no signal conditioning adapters required.
• Deterministic Frequency Response: The flat frequency response from DC to 10,000 Hz ensures that sub-synchronous instabilities (oil whirl at 0.43–0.48× running speed), synchronous imbalance, and super-synchronous blade-pass frequencies are all captured within a single measurement channel without aliasing.
• Non-Contact Operation Eliminates Wear: Unlike contact-type displacement sensors, the eddy-current probe has no mechanical interface with the rotating shaft. Mean time between replacement is determined by environmental degradation of the cable and connector, not by mechanical wear — typically exceeding 10 years in clean installations.
• IP67 Sealing for Wet Environments: The probe body and cable entry are sealed to IP67, permitting installation in bearing housings subject to oil mist, condensation, and wash-down without ingress-related signal degradation.
• ATEX/IECEx Zone 1 Certification: Certified for use in explosive atmospheres classified as Zone 1 and Zone 2, Group IIC (hydrogen-equivalent), Temperature Class T4. This covers the majority of petrochemical compressor and turbine installations without requiring additional intrinsic safety barriers at the probe level.
• Drop-In Replacement for Legacy 3300 Series: The 3300 XL probe is dimensionally and electrically compatible with earlier 3300 series probes. Replacement requires no recalibration of the Proximitor driver when the driver is also a 3300 XL model, reducing planned maintenance downtime to the physical swap time only.
• Diagnostic Transparency via Gap Voltage Monitoring: The DC component of the output voltage provides a continuous, real-time indication of the static shaft centerline position. Trending this value over time reveals bearing wear (increasing gap) or thermal growth (decreasing gap) before vibration amplitude alarms are triggered, enabling condition-based maintenance scheduling.

Quality Assurance & Global Logistics

Every 330101-00-52-10-02-CN unit dispatched from our Xiamen, China facility is sourced through verified supply channels and subjected to a pre-shipment inspection protocol that includes visual examination of the probe tip encapsulant for cracks or delamination, continuity and insulation resistance testing of the integral cable, connector pin inspection for corrosion or mechanical damage, and label authenticity verification against Bently Nevada’s published part number format.

Units are shipped in original manufacturer packaging where available, or in anti-static foam-lined cartons with desiccant packs for humidity control during transit. Export documentation — including commercial invoice, packing list, and certificate of origin — is prepared to meet customs requirements for all major import markets including the EU, USA, Southeast Asia, and the Middle East.

Standard international dispatch is via DHL Express or FedEx International Priority, with typical transit times of 3–5 business days to Europe and North America, and 2–3 business days to Southeast Asia. Air freight consolidation is available for multi-line project orders. All shipments are fully insured and tracked from dispatch to delivery confirmation.

The 12-month warranty covers manufacturing defects and premature failure under normal operating conditions. Warranty claims are processed with a replacement-first policy — a replacement unit is dispatched upon receipt of the defective item and photographic evidence of the failure mode, minimizing plant downtime during the claims process.
