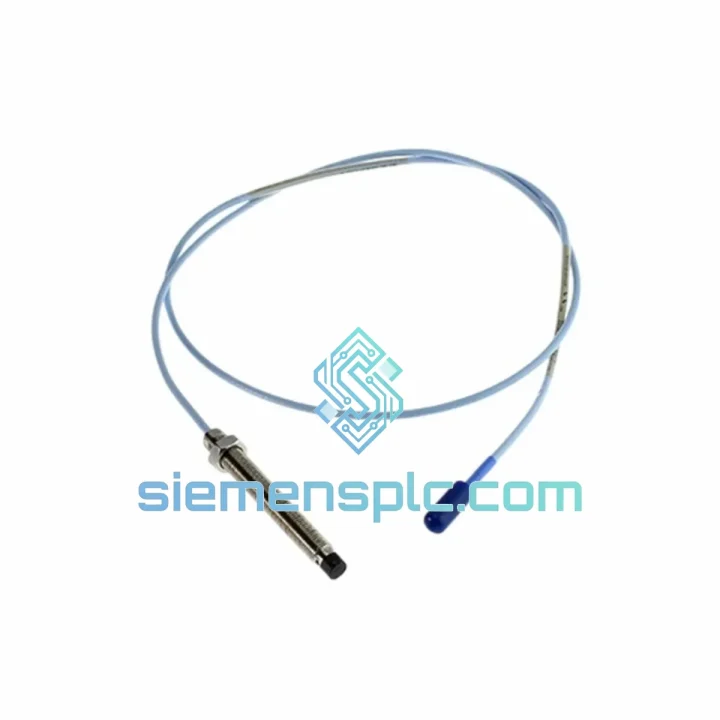

Bently Nevada 330102-00-48-05-02-00 Proximity Probe – 3300 XL Series

Bently Nevada 330102-00-48-05-02-00: 8mm Eddy-Current Proximity Probe for Continuous Shaft Monitoring in the 3300 XL Transducer System

The 330102-00-48-05-02-00 is the probe element of the Bently Nevada 3300 XL 8mm Proximity Transducer System — a three-component eddy-current measurement chain engineered for permanent, non-contact shaft vibration and position monitoring in critical rotating machinery. This specific configuration carries a 48-inch (1,219 mm) integral cable, a standard armored jacket termination, and a reverse-mount thread body, making it the dominant field-replacement SKU across LNG trains, steam turbines, centrifugal compressors, and API 670-governed machinery protection loops globally.

Unlike general-purpose inductive sensors, the 330102-00-48-05-02-00 is factory-calibrated as part of a matched system: probe body, extension cable, and oscillator-demodulator driver must share a common calibration curve. The probe generates a high-frequency oscillating electromagnetic field at its tip coil. When a conductive target (typically AISI 4140 steel shaft) enters the field, eddy currents are induced on the target surface, loading the probe’s LC tank circuit. The driver demodulates this loading into a DC voltage output with a nominal sensitivity of 200 mV/mil (7.87 V/mm), which the 3300 XL monitor card then processes against configured alarm and danger setpoints.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 330102-00-48-05-02-00 probe body houses a precision-wound coil embedded in a thermally stable epoxy matrix within the 316 SS tip housing. The coil forms the inductive element of an LC oscillator circuit whose resonant frequency is set by the driver’s internal capacitor bank. At the nominal –24 VDC supply, the oscillator operates at approximately 1.0 MHz. As the target shaft surface approaches the probe tip, eddy currents dissipate energy from the oscillator, reducing the amplitude of oscillation in direct proportion to the air gap. The driver’s demodulator stage converts this amplitude modulation into the calibrated DC voltage output.

EMC Design: The stainless-steel interlocked armor over the 48-inch integral cable provides continuous Faraday shielding from the probe tip to the BNC connector, suppressing capacitively coupled interference from adjacent high-voltage cabling, variable-frequency drives, and ignition systems common in turbomachinery enclosures. The shield is grounded at the driver end only (single-point grounding) to prevent ground-loop currents that would appear as low-frequency noise on the DC output.

Thermal Stability: The PTFE-insulated inner conductors maintain dielectric integrity across the full –35 °C to +177 °C operating envelope. The epoxy encapsulant in the probe tip is formulated to resist differential thermal expansion between the coil winding and the SS housing, preserving calibration accuracy across bearing-housing temperature excursions that can span 80–120 °C during turbine start-up and shutdown cycles.

Calibration Traceability: Each 330102-series probe is factory-calibrated against a reference AISI 4140 target on a precision gap fixture traceable to NIST standards. The calibration data is encoded in the part number suffix: the “-05” field denotes the standard sensitivity range, and “-02” identifies the connector/termination configuration. Substituting a probe with a different suffix into an existing driver/monitor pair without recalibration will introduce a systematic gain error across the full measurement range.

Coil Impedance Matching: The probe coil impedance is matched to the 330180/330130 driver input impedance at the factory. Mismatched impedance — caused by using a non-OEM probe or an incorrect cable length — shifts the oscillator operating point, compressing the linear range and degrading sensitivity at the extremes of the 10–90 mil measurement window. This is the primary failure mode observed when field personnel substitute incompatible probes during emergency maintenance.

System Integration Benefits

• Deterministic DC Output Latency: The eddy-current measurement chain from probe tip to driver output introduces less than 100 µs of signal latency, ensuring that the 3300 XL monitor card receives gap-proportional voltage data within one monitor scan cycle — critical for machinery protection systems requiring sub-cycle trip response.
• Zero Mechanical Wear: Non-contact measurement eliminates probe-to-shaft contact, removing the wear mechanism that limits contact-type displacement sensors. Mean time between replacement is governed by environmental degradation (chemical attack, thermal cycling) rather than mechanical fatigue.
• DC-to-10 kHz Bandwidth: The flat frequency response from DC captures static shaft position (thrust position, differential expansion) and dynamic vibration simultaneously on a single channel, eliminating the need for separate position and vibration transducers at each measurement plane.
• Direct API 670 Compliance: The 3300 XL system with 330102-series probes satisfies API 670 5th Edition requirements for radial vibration, axial position, and differential expansion monitoring without additional signal conditioning hardware, simplifying SIS/DCS integration documentation.
• Plug-and-Play OEM Replacement: The 330102-00-48-05-02-00 is a direct dimensional and electrical replacement for worn probes in existing 3300 XL installations. No driver recalibration is required when replacing a probe of identical part number, reducing planned maintenance downtime to the time required for physical probe swap and gap verification.
• Diagnostic Transparency via System 1: When integrated with Bently Nevada System 1 Evolution software, the probe’s output feeds continuous waveform acquisition, enabling orbit plot generation, 1X/2X vector trending, and waterfall spectrum analysis — providing maintenance engineers with shaft dynamic data sufficient to distinguish unbalance, misalignment, fluid instability, and rub conditions without additional instrumentation.
• ATEX Zone 1/2 Certification: The probe assembly carries ATEX certification for use in explosive atmospheres, permitting installation in gas-turbine enclosures, compressor seal areas, and other classified zones without additional intrinsic safety barriers at the probe level (barrier requirements apply at the driver/monitor interface per installation drawing).
• Broad Target Material Compatibility with Correction Factors: While standard calibration targets AISI 4140 steel, Bently Nevada publishes target material correction factors for Inconel 718, 17-4 PH stainless, and titanium alloys. This allows the same 330102-series probe to be deployed on non-standard shaft materials by applying the published gain correction at the driver or monitor configuration level, avoiding the cost of custom-calibrated probes.

Quality Assurance & Global Logistics

Every 330102-00-48-05-02-00 unit supplied through siemensplc.com is sourced from verified industrial automation supply channels with full part-number and lot traceability back to the original Bently Nevada (Baker Hughes) manufacturing documentation. Prior to dispatch from our Xiamen, China facility, each probe undergoes a pre-shipment inspection protocol covering: physical housing integrity, cable armor continuity, connector pin condition, and label/marking verification against the original manufacturer’s part number.

Certificates of Conformance (CoC) are available upon request and can be provided with the shipment documentation package, which includes a commercial invoice, packing list, and — for international orders — a country-of-origin declaration compliant with customs requirements in the EU, North America, Southeast Asia, and the Middle East.

Storage at our Xiamen warehouse is conducted under controlled temperature (15–25 °C) and humidity (<60% RH) conditions, consistent with Bently Nevada’s recommended storage environment for precision transducer assemblies. Units are individually packaged in anti-static foam inserts within sealed cartons to prevent transit damage to the probe tip and cable armor.

Shipping Performance: Standard international express delivery (DHL / FedEx / UPS) from Xiamen to major industrial hubs: Europe 3–5 business days, North America 4–6 business days, Southeast Asia 2–3 business days, Middle East 4–5 business days. Expedited same-day dispatch is available for orders confirmed before 14:00 CST. Air freight and sea freight consolidation options are available for bulk procurement orders.

All export documentation is prepared in compliance with Chinese customs regulations and destination-country import requirements. HS Code classification and ECCN determination are provided upon request for regulated-destination shipments.
