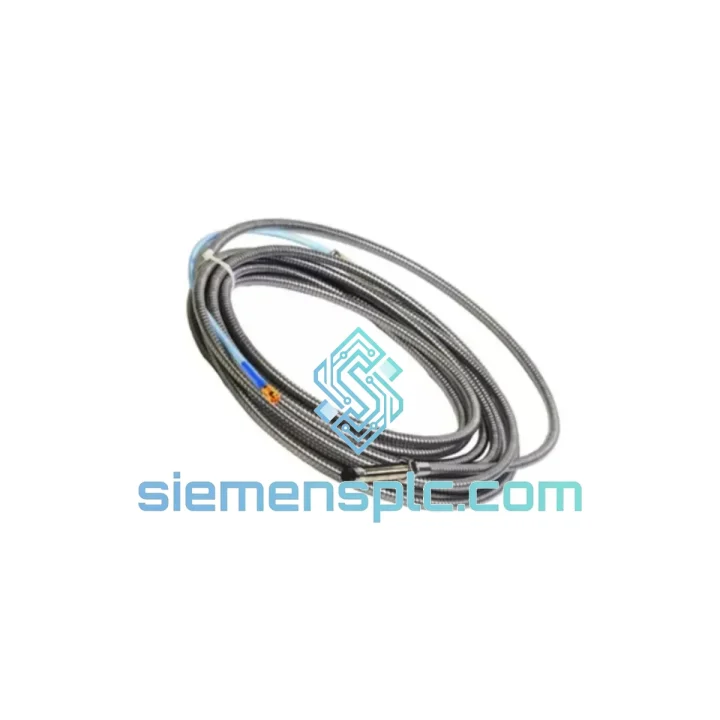

Bently Nevada 330102-00-52-10-02-00 Proximity Probe

330102-00-52-10-02-00 In Stock Now — Every Hour of Downtime Costs You Money

Your turbine is down. The control room is on the phone. Maintenance is standing by. You need a Bently Nevada 330102-00-52-10-02-00 — not in two weeks, not “subject to availability” — now. We stock this 8mm eddy-current proximity probe from the 3300 XL Series specifically because rotating machinery doesn’t wait for procurement cycles. One failed probe on a steam turbine or compressor train can cascade into a full unit trip. We’ve seen it. We’ve fixed it. We ship it.

This is not a catalog listing. This is a field-ready unit, inspected, verified, and boxed for same-day dispatch from Xiamen. DHL Express to your plant gate in 48–72 hours, anywhere on the planet.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on rotating machinery, here are the failure modes I see most often with 3300 XL proximity probes — and what to watch for when you’re doing a hot swap under pressure.

Fault Code 01 / Gap Voltage Out of Range: This is the most common call I get. The Proximitor output sits outside the −10 VDC ± 0.5 VDC nominal gap window. Nine times out of ten it’s a probe tip that’s been mechanically damaged by a rub event, or the probe has drifted out of its mounting bracket due to vibration-induced loosening. Before you condemn the probe, check the extension cable connector first — a corroded or intermittent coax joint will produce identical symptoms. Swap the cable, re-gap, and re-check. If the fault persists, the probe is the culprit.

Replacement Gapping Procedure: The 330102-00-52-10-02-00 requires a gap of 1.0 mm ± 0.05 mm (approximately 40 mil) to the target shaft surface for nominal −10 VDC output. Use a non-ferrous feeler gauge. Do not use a steel gauge — it will influence the eddy-current field and give you a false reading. Tighten the locknut to 2.5 N·m after setting gap. Over-torquing cracks the probe body threads — I’ve seen it happen on a rushed midnight shift.

Extension Cable Matching: The 330102 series probe is designed to work with a specific total system cable length. The probe integral cable (5 m) plus the extension cable must equal the system-calibrated length — typically 5 m + 5 m = 10 m total, or 5 m + 9 m = 14 m total, depending on your Proximitor calibration. Mixing cable lengths without recalibrating the Proximitor will introduce a sensitivity error of up to 8%. Always verify the extension cable part number (330130-045-00-00 for 5 m, 330130-080-00-00 for 9 m) matches your system documentation.

Proximitor Firmware & Calibration: The 3300 XL 8mm Proximitor (330180 series) does not require firmware updates — it is a passive analog device. However, if you are replacing a probe on a 3500 Series rack, confirm the rack channel is configured for 8mm probe sensitivity (200 mV/mil). A channel previously configured for 5mm probe sensitivity (200 mV/mil nominal but different linear range) will produce incorrect vibration readings without a rack reconfiguration. Pull up the 3500 Rack Configuration Software and verify the probe type selection before returning the machine to service.

Common Mistake on Reinstallation: The probe tip must never contact the shaft. Even a momentary rub at speed will destroy the tip geometry and invalidate the calibration. During installation on a stationary shaft, maintain the 1.0 mm gap. During startup, monitor the gap voltage in real time via the Proximitor test point. If gap voltage shifts more than ±0.5 VDC during thermal expansion of the shaft, re-gap with the machine at operating temperature.

Reliability in Harsh Conditions

The 330102-00-52-10-02-00 was not designed for a clean lab. It was designed for the inside of a turbine pedestal — where ambient temperatures swing from −35°C during winter cold starts to +177°C near bearing housings, where lube oil mist coats every surface, and where the probe body absorbs continuous broadband vibration from the rotating assembly it’s measuring.

The 316 stainless steel housing resists corrosion from lube oil, steam condensate, and cleaning solvents. The armored integral cable withstands the mechanical flexing that occurs during thermal cycling and the occasional boot of a maintenance technician who didn’t see it in the dark. The gold-plated coaxial connector maintains signal integrity even after years of exposure to humid, contaminated air in a turbine hall.

We have shipped this probe to offshore platforms in the North Sea, to petrochemical plants in the Middle East where ambient temperatures exceed 50°C, and to paper mills in Scandinavia where the environment is simultaneously hot, wet, and chemically aggressive. The probe comes back to us for replacement only when the machine it’s monitoring has had a mechanical event — not because the probe itself has failed from environmental stress.

Every unit we ship has been stored in climate-controlled conditions, in original anti-static packaging, away from magnetic fields that could influence the ferrite core. We do not sell probes that have been sitting in an open warehouse for five years. If we wouldn’t install it ourselves on a critical machine, we don’t ship it to you.

Global Express Logistics

Our dispatch hub is in Xiamen, China — one of the most connected export ports on the Pacific Rim, with direct DHL and FedEx gateway access. Here is exactly what happens after you confirm your order:

Day 0 (Order Confirmed): Unit is pulled from climate-controlled stock, inspected against the part number, photographed, and packed in double-wall export carton with foam insert. Commercial invoice, packing list, and Certificate of Origin are generated. Export customs declaration is filed electronically.

Day 1 (Dispatch): Shipment is handed to DHL Express or FedEx International Priority — your choice — before the daily cutoff. Tracking number is sent to you within 2 hours of handover. For orders confirmed before 14:00 CST, same-day dispatch is standard.

Day 2–3 (In Transit): DHL Express typically delivers to major industrial hubs in Europe (Rotterdam, Frankfurt, Milan) and North America (Houston, Chicago, Toronto) within 48–72 hours of Xiamen departure. Southeast Asia destinations (Singapore, Kuala Lumpur, Jakarta) often arrive within 24–36 hours. Middle East (Dubai, Dammam, Doha) typically 48–60 hours.

Documentation Provided: Full export documentation package — commercial invoice with declared value, packing list with net/gross weights, Certificate of Origin (China), and HS Code 9031.80 declaration. For customers requiring a Certificate of Conformance or material traceability documentation, request at time of order and we will include it in the shipment.

Customs Clearance: We have shipped to over 40 countries. We know which markets require additional documentation (e.g., SABER certification for Saudi Arabia, INMETRO for Brazil) and will advise you proactively. Duties and import taxes are the buyer’s responsibility, but we will provide all documentation needed to clear customs efficiently.

For truly critical situations — plant down, production stopped — contact us directly on WhatsApp. We have arranged weekend dispatch and after-hours courier collection for customers who needed it. We understand what downtime costs.
