Bently Nevada 330102-04-16-10-02-00 Proximity Probe – 3300 XL Series

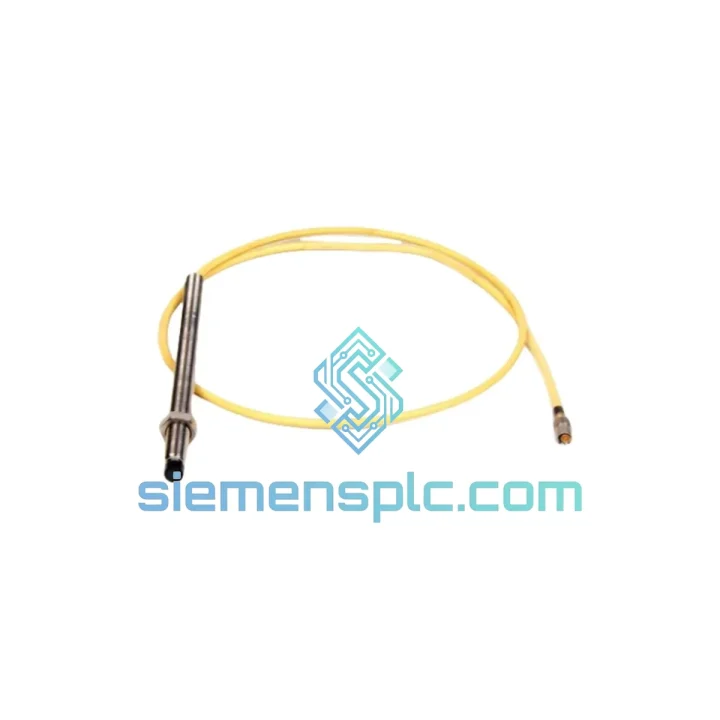

Bently Nevada 330102-04-16-10-02-00 — 8mm Eddy-Current Proximity Probe for Critical Rotating Machinery Protection

The Bently Nevada 330102-04-16-10-02-00 is a precision eddy-current proximity transducer belonging to the 3300 XL 8mm system platform. Its primary function within a machinery protection architecture is to deliver continuous, non-contact measurement of shaft radial vibration, axial position (thrust), and differential expansion across a broad class of turbomachinery. Unlike piezoelectric accelerometers that respond only to dynamic events, this probe operates from DC to 10,000 Hz, capturing both static displacement and high-frequency dynamic excitation within a single measurement channel. This characteristic makes it indispensable in API 670-compliant protection systems where both steady-state position and transient vibration data must be simultaneously available to the monitor card for trip logic evaluation.

In a standard 3300 XL transducer system, the 330102-04-16-10-02-00 probe interfaces with a matched 5-metre extension cable and a Proximitor® sensor to form a three-component signal chain. The Proximitor converts the probe’s raw impedance variation — driven by the eddy-current field interaction with the rotating shaft — into a calibrated DC voltage output of 7.87 V/mm (200 mV/mil) nominal sensitivity. This voltage is then conditioned by the monitor card for gap, vibration, and alarm/trip threshold evaluation. The part-number encoding confirms: 8mm probe body, 1.0 m integral cable, 5.0 m (16 ft) extension cable system, metric M10×1 thread, and standard 200 mV/mil output range.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The operating principle of the 330102-04-16-10-02-00 is grounded in Faraday’s law of electromagnetic induction applied to a conductive target. The probe tip houses a precision-wound coil driven by a high-frequency oscillator within the Proximitor sensor, typically at 1.0 MHz carrier frequency. As the conductive shaft surface enters the probe’s electromagnetic field, eddy currents are induced on the target surface. These eddy currents generate a counter-magnetic field that loads the oscillator circuit, reducing its amplitude in proportion to the gap distance. The Proximitor demodulates this amplitude variation and outputs a linear DC voltage proportional to the probe-to-target gap.

The 8mm probe geometry is a deliberate engineering trade-off. A larger coil diameter increases the linear range and reduces sensitivity to minor surface irregularities (runout, scratches), while a smaller diameter improves spatial resolution for shaft orbit analysis. The 8mm format achieves a linear range of 0.25–2.54 mm — sufficient for both radial vibration measurement (typically ±250 µm peak-to-peak on large turbines) and axial position monitoring (±1.0 mm thrust range in most applications).

The stainless-steel armored integral cable is not merely a mechanical protection feature. It also functions as an EMC shield, maintaining coaxial signal integrity between the probe coil and the Proximitor input. In high-voltage switchgear environments or near variable-frequency drives, unshielded cable runs introduce capacitive coupling that distorts the carrier signal and produces false vibration readings. The armor braid, bonded at both ends, provides a continuous Faraday shield that attenuates common-mode interference across the full DC–10 kHz measurement bandwidth.

The M10×1 metric thread and the encoded part-number system ensure that field replacement is unambiguous. Each segment of the 330102-04-16-10-02-00 part number encodes a specific physical attribute: probe series, tip diameter, integral cable length, extension cable length, thread type, and output range. This deterministic naming convention eliminates substitution errors during maintenance shutdowns — a critical requirement in API 670 environments where incorrect probe-Proximitor pairing invalidates the system’s calibration certificate.

Intrinsic safety certification (FM/CSA/ATEX/IECEx) is achieved through energy-limiting design within the Proximitor sensor, which restricts the electrical energy available at the probe terminals to levels below the ignition threshold of the target gas group. The probe itself is a passive element in this safety architecture — its coil impedance and cable capacitance are characterized and certified as part of the matched system, which is why mixing components from different system lengths or manufacturers voids the IS certification.

System Integration Benefits

• Direct API 670 Compliance: The 330102-04-16-10-02-00 is fully characterized for use with Bently Nevada 3300 XL monitor cards. No field recalibration is required when replacing a like-for-like unit, preserving the system’s API 670 certification status and reducing maintenance downtime to the physical swap time only.
• DC-Coupled Measurement Architecture: Because the output is a DC-coupled voltage proportional to gap, the monitor card can simultaneously evaluate static shaft position (gap voltage) and dynamic vibration (AC component) from a single probe channel. This eliminates the need for separate position and vibration transducers on the same bearing journal.
• Deterministic Signal Latency: The eddy-current signal chain introduces no mechanical resonance or phase lag within the measurement bandwidth. The probe’s frequency response is flat from DC to 10 kHz (–3 dB), ensuring that the monitor card receives a phase-accurate representation of shaft motion for orbit plot construction and 1×/2× vector analysis.
• Hazardous Area Deployment Without Additional Barriers: FM/CSA/ATEX/IECEx intrinsic safety approval allows installation in Zone 0/1 (IEC) or Class I, Div. 1 (NEC) areas in many configurations without external Zener barriers, reducing panel wiring complexity and potential failure points in the IS loop.
• Wide Thermal Operating Range: The –35 °C to +121 °C probe body rating covers both arctic outdoor installations and hot-section turbine pedestal environments without requiring additional thermal insulation or cooling provisions, simplifying mechanical installation design.
• Backward Compatibility with Legacy 3300 Monitors: The 3300 XL probe is electrically compatible with earlier 3300 series monitor cards, protecting existing infrastructure investments. Sensitivity verification against the specific monitor model is recommended, but physical and electrical interfaces are maintained across generations.
• Standardized Spare Parts Management: The deterministic part-number encoding system allows maintenance planners to stock a single probe SKU that covers all installations with the same cable length and thread configuration, reducing spare parts inventory complexity across multi-unit plants.
• Diagnostic Transparency via Proximitor Gap Voltage: The Proximitor’s DC output voltage provides a continuous, real-time indication of probe-to-shaft gap. Trending this voltage over time reveals bearing wear, shaft thermal growth, and probe mounting drift — all without interrupting machine operation or requiring additional instrumentation.

Quality Assurance & Global Logistics

Every Bently Nevada 330102-04-16-10-02-00 unit supplied by siemensplc.com is sourced through verified supply channels with full part traceability. Prior to dispatch, each probe undergoes physical inspection covering connector pin integrity, cable armor continuity, and probe tip condition. Units exhibiting mechanical damage, corrosion on the MIL-C-5015 connector, or cable jacket abrasion are rejected and not offered for sale.

Original manufacturer documentation — including calibration data sheets and compliance certificates where available — is included with each shipment. For customers requiring formal incoming inspection records, our team can provide a pre-shipment inspection report on request.

Logistics operations are based in Xiamen, China, a major international port city with direct air freight connections to Singapore, Dubai, Frankfurt, Los Angeles, and Tokyo. Standard export packaging uses anti-static foam inserts and moisture-barrier bags to protect the probe’s coil assembly and connector during transit. Typical dispatch lead time for in-stock units is 1–3 business days. Express air freight (DHL, FedEx, UPS) delivers to most destinations within 3–7 business days. Sea freight consolidation is available for bulk orders. All shipments are accompanied by a commercial invoice, packing list, and certificate of origin. Export classification and HS code documentation are prepared in compliance with Chinese customs regulations and destination-country import requirements.

A 12-month warranty covers manufacturing defects under normal operating conditions. Warranty claims are processed with a replacement-first policy to minimize customer downtime.
