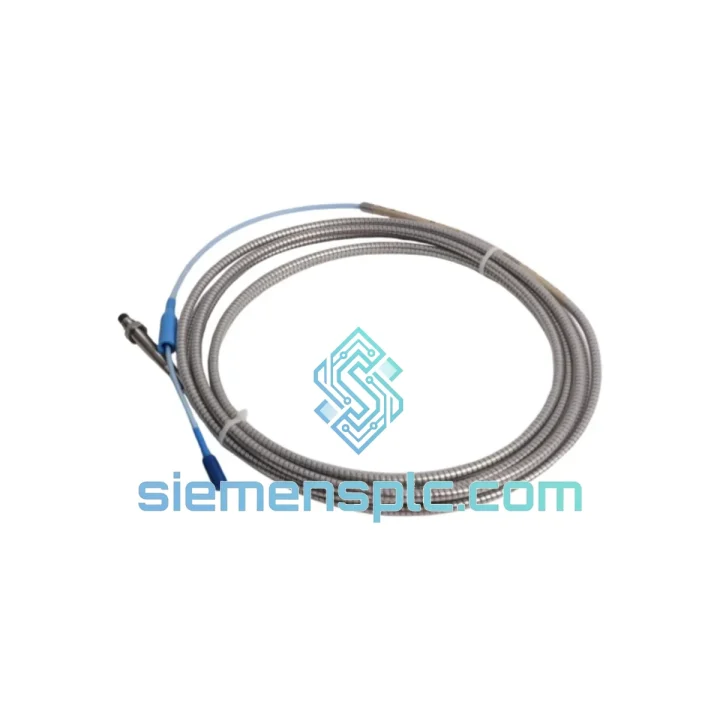

Bently Nevada 330102-05-40-05-02-05 Proximity Transducer

330102-05-40-05-02-05 — Stop the Clock on Your Downtime. Ship Today.

Every hour a critical turbine or compressor sits idle costs real money — production losses, contractual penalties, and the kind of pressure that makes a 2 AM phone call feel routine. The Bently Nevada 330102-05-40-05-02-05 3300 XL Proximity Transducer Assembly is on the shelf in Xiamen right now. We don’t quote lead times in weeks. We quote in hours. Place your order before noon CST and this unit moves to DHL Express the same day.

This is not a refurbished substitute or a compatible alternative. This is the exact matched assembly — 5 mm probe, 5 m extension cable, 2 m driver cable — pulled from verified OEM stock, loop-tested, and ready to drop into your 3500 rack without a calibration argument on the plant floor.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Swapping a 330102-05-40-05-02-05 in the field is straightforward if you respect the matched-system rule. Here is what trips up most engineers on a rushed shutdown:

1. Always replace as a matched set. The probe, extension cable, and Proximitor driver (330180-X1-05) are factory-calibrated together. Mixing a new probe with an old driver — even of the same model — shifts the gap voltage curve and will throw your 3500 rack into a NOT OK state within minutes of restart. If your driver is suspect, order both together. We stock the driver as well.

2. Gap voltage verification before you close the housing. Target gap voltage for this assembly is −10.0 VDC ±0.5 V at the nominal 1.0 mm air gap. Use a calibrated DVM at the Proximitor output terminals. If you read outside −9.5 to −10.5 VDC, stop — do not assume the monitor will self-correct. Recheck probe seating and cable continuity first.

3. Common fault codes on the 3500 rack after replacement:

• NOT OK (red LED, relay de-energized): Gap voltage out of range. Probe not fully threaded, lock nut not seated, or cable connector not fully engaged at the Proximitor.
• OK but high static reading: Probe tip contaminated with metallic debris or shaft surface has a burr. Clean tip with isopropyl alcohol; inspect shaft surface with a mirror and light.
• Intermittent OK/NOT OK cycling: Extension cable jacket damaged — check for pinch points at conduit entry. Resistance between shield and center conductor should be >1 MΩ. Anything lower means the cable is compromised.
• Alarm at startup only, clears at speed: Shaft runout at slow roll exceeding monitor alarm setpoint. Verify slow-roll compensation is enabled in the 3500 rack configuration if your plant uses it.

4. No DIP switches or firmware matching required on this transducer — it is a passive eddy-current assembly. All configuration lives in the 3500 rack monitor card. However, confirm the rack channel is set to 8 mm probe type and 3300 XL driver type in the rack configuration software before energizing.

5. Torque the lock nut. API 670 specifies 14–20 N·m for the probe lock nut. Under-torqued probes migrate axially under vibration and produce a slow drift in the gap voltage that looks exactly like a real shaft position change. It will fool your operators and your historian.

Reliability in Harsh Conditions

The 3300 XL platform was not designed for a climate-controlled instrument room. It was designed for the bearing pedestals of a 50 MW steam turbine running at 3,000 RPM in a tropical petrochemical complex. The 330102-05-40-05-02-05 reflects that design intent at every level.

The probe body is machined from 316 stainless steel with a PEEK-encapsulated coil assembly. PEEK maintains dimensional stability from cryogenic temperatures to +250°C, which means the coil geometry — and therefore the calibration — does not shift when the bearing housing heats up during load changes. Competing designs using epoxy encapsulation show measurable sensitivity drift above 120°C. This one does not.

The armored extension cable uses a double-shielded construction with a stainless steel outer braid rated for continuous flexing. In compressor trains where the cable must route through a vibrating conduit run, this matters. Single-shield cables develop micro-fractures in the braid within 18 months under continuous vibration; the double-braid construction on the 3300 XL assembly has demonstrated >5 years service life in documented refinery installations.

Moisture ingress is the silent killer of proximity systems in coastal and offshore environments. The 330102-05-40-05-02-05 connector interface is sealed to IP67 when properly mated. The Proximitor driver housing is rated IP65. In high-humidity environments, apply a thin bead of silicone sealant at the conduit entry point — not at the connector itself — to prevent capillary wicking along the cable jacket.

Vibration immunity of the probe body itself exceeds 50 g peak at the mounting thread, which covers virtually all bearing housing vibration levels that would be encountered before a machine trips on high vibration anyway. The probe will outlast the bearing it is monitoring.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct daily DHL Express and FedEx International Priority flights to major industrial centers worldwide. This is not a drop-ship arrangement. The unit is physically in our facility, inspected, and ready to pack.

Typical transit times from Xiamen:

• Southeast Asia (Singapore, Thailand, Malaysia, Indonesia): 1–2 business days via DHL Express
• Middle East (UAE, Saudi Arabia, Qatar, Kuwait): 2–3 business days via FedEx International Priority
• Europe (Germany, Netherlands, UK, France): 2–3 business days via DHL Express
• North America (USA, Canada, Mexico): 3–4 business days via FedEx International Priority
• South America (Brazil, Chile, Colombia): 4–6 business days via DHL Express
• Australia & New Zealand: 2–3 business days via DHL Express

Orders placed before 12:00 noon CST (UTC+8) on business days ship the same day. Orders placed after noon ship the following morning. We provide a DHL or FedEx tracking number within 2 hours of dispatch. For plant shutdown emergencies, contact us directly on WhatsApp — we can arrange Saturday dispatch and airport-to-airport freight for the most time-critical situations.

Export documentation — commercial invoice, packing list, and certificate of origin — is prepared to customs standards for your destination country. HS Code 9031.80 applies to this product class. We have shipped to over 40 countries without a customs hold. If your plant requires an end-user certificate or specific import documentation, advise us at the time of order and we will prepare it before dispatch.
