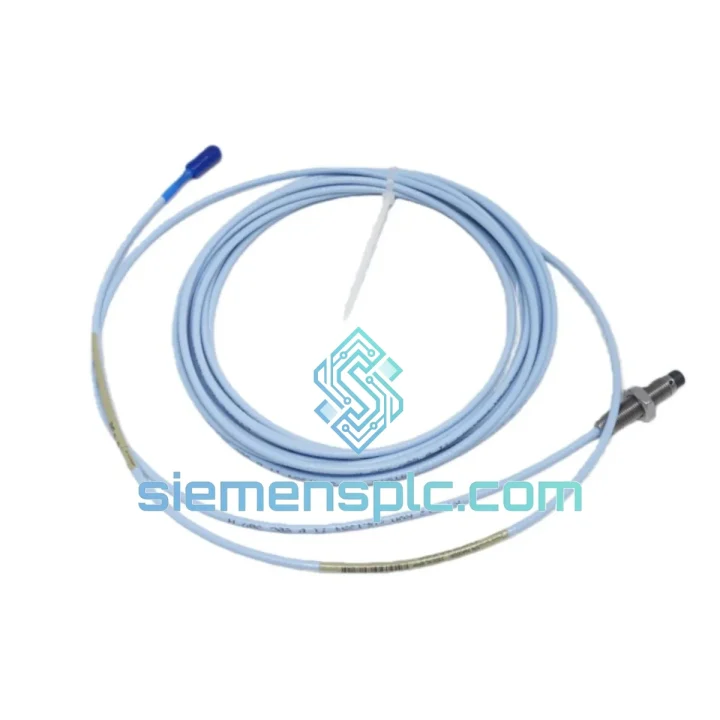

Bently Nevada 330103-00-04-50-12-CN Proximity Probe – 3300 XL Series

Bently Nevada 330103-00-04-50-12-CN: Eddy-Current Proximity Probe for Shaft Displacement and Vibration Measurement in Rotating Machinery

The 330103-00-04-50-12-CN is a metric-thread eddy-current proximity probe from Bently Nevada’s 3300 XL Proximity Transducer System — a platform that has defined the standard for machinery protection instrumentation in power generation, oil & gas, and heavy process industries for over three decades. This specific variant is configured with a 5 mm probe tip diameter, a 500 mm (50 cm) factory-terminated integral cable, and a 12-pin CN-type connector, making it dimensionally suited for tight-clearance bearing housings and metric-standard machine frames prevalent in European and Asian industrial installations.

In a rotating machinery protection architecture, the proximity probe occupies the most critical position in the signal chain: it is the primary transducer that converts physical shaft displacement into an analog voltage signal. The 330103-00-04-50-12-CN operates on the eddy-current principle — a high-frequency oscillator within the paired driver module energizes a coil embedded in the probe tip, generating an electromagnetic field that penetrates the target shaft surface. As shaft-to-probe gap varies due to radial vibration, axial movement, or differential thermal expansion, the eddy-current loading on the coil changes proportionally, modulating the oscillator’s output voltage. This voltage change, typically scaled at −200 mV/mil (−7.87 V/mm) within the 3300 XL system’s linear range, is the raw measurement signal fed into the Bently Nevada 3500 Series monitor or equivalent protection rack.

The non-contact measurement principle eliminates all mechanical wear at the sensing interface. Unlike accelerometers or velocity transducers that require physical coupling to the machine structure, the proximity probe maintains a fixed air gap — typically 1.0 mm to 2.0 mm for the 5 mm tip variant — and delivers continuous DC-coupled output that captures both the dynamic AC vibration component (1X, 2X, sub-synchronous) and the static DC gap position simultaneously. This dual-channel information content within a single analog output is architecturally significant: it allows the protection system to distinguish between a shaft that is vibrating within acceptable limits but running at an abnormal static position (indicative of bearing wear or misalignment) versus a shaft that is dynamically unstable but centered correctly.

The 500 mm integral cable length on the 330103-00-04-50-12-CN is a factory-calibrated system parameter, not an arbitrary mechanical dimension. The 3300 XL system’s sensitivity and linearity specifications are calibrated as a matched set: probe + integral cable + extension cable + driver. Substituting a different integral cable length — even within the same 330103 series — invalidates the system calibration and introduces measurement error that cannot be corrected by field adjustment alone. Engineers specifying replacement probes must verify the complete part number suffix to maintain API 670 compliance and system accuracy.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 3300 XL probe tip assembly houses a precision-wound sensing coil encapsulated in a thermally stable polymer compound. The coil geometry is matched to the 5 mm tip form factor to achieve a defined electromagnetic field penetration depth of approximately 3–4 mm into the target surface — sufficient to resolve shaft surface irregularities while remaining insensitive to subsurface material variations. The encapsulant material maintains coil geometry stability across the full −35°C to +121°C operating range, preventing thermal drift in the coil’s inductance that would otherwise manifest as a false DC gap shift in the measurement output.

The integral cable between probe body and CN connector is a coaxial construction with controlled characteristic impedance. This impedance matching is critical: the 3300 XL driver’s oscillator circuit is tuned to the combined impedance of the probe coil and integral cable as a single electrical network. Any deviation in cable length or impedance — from field splicing, damage, or substitution — detunes the oscillator and shifts the probe’s sensitivity curve outside the factory-calibrated tolerance band of ±0.5% of full-scale range.

EMC performance of the 330103-00-04-50-12-CN is achieved through the coaxial cable shield, which is grounded at the driver end only (single-point grounding topology). This configuration prevents ground loop currents from flowing through the shield conductor — a common source of 50/60 Hz interference in industrial environments with multiple grounding points. The probe body itself is electrically isolated from the machine casing via the non-conductive mounting thread insert, further reducing common-mode noise injection into the measurement circuit. In VFD-intensive environments where switching frequencies of 2–16 kHz are present, the probe’s 10 kHz bandwidth limit acts as a natural anti-aliasing filter, attenuating VFD-induced electrical noise before it reaches the monitor’s A/D conversion stage.

The 12-pin CN connector provides positive mechanical locking with IP67-rated sealing when mated, preventing moisture ingress at the cable termination point — a failure mode that accounts for a significant proportion of proximity probe field failures in outdoor or wash-down environments. The gold-plated contact pins maintain low contact resistance (<10 mΩ) across the connector’s service life, preserving signal integrity in the low-level millivolt measurement range.

System Integration Benefits

• Direct API 670 Compliance: The 330103-00-04-50-12-CN is a qualified component within the Bently Nevada 3300 XL system, which is the most widely specified proximity transducer system in API 670-compliant machinery protection installations. No additional qualification testing is required when replacing a like-for-like probe in an existing certified installation.
• Deterministic Signal Latency: The analog output of the proximity probe introduces zero processing latency into the protection signal chain. The DC-coupled output reaches the monitor’s input terminals within the propagation delay of the cable — typically <5 ns for a 500 mm integral cable — ensuring that the 3500 Series monitor’s trip response time is governed solely by the monitor’s own processing cycle, not by transducer delay.
• Simultaneous Static and Dynamic Measurement: The single analog output encodes both the DC gap position and the AC vibration waveform. This eliminates the need for separate position and vibration transducers on the same measurement plane, reducing installation hardware count and potential failure points per measurement channel.
• Plug-and-Play Replacement: Identical part number substitution requires no recalibration of the driver or monitor. The factory-calibrated sensitivity of −7.87 V/mm is maintained within ±1% of the original probe’s performance, keeping the protection system within its certified accuracy envelope without field intervention.
• Diagnostic Transparency via System 1: When integrated with Bently Nevada System 1 condition monitoring software, the probe’s gap voltage provides a continuous bearing wear trend indicator. A progressive increase in the DC gap voltage (shaft moving away from probe) over weeks or months is a quantitative indicator of bearing journal wear, enabling predictive maintenance scheduling before vibration amplitude thresholds are reached.
• Multi-Plane Measurement Architecture: The compact 5 mm tip diameter allows installation of two probes at 90° separation (X-Y configuration) within the bearing housing clearance envelope of most industrial turbomachinery, enabling full orbital analysis of shaft motion — a capability required by API 670 for critical machinery classification.
• Thermal Stability in High-Temperature Environments: The probe’s 121°C maximum operating temperature covers the bearing housing temperatures of most steam turbine and gas turbine auxiliary systems without requiring thermal standoff hardware, simplifying installation and reducing the number of custom mechanical components in the probe mounting assembly.
• Reduced Commissioning Risk: Factory-matched probe and integral cable eliminate the field calibration step required when using field-assembled probe-cable combinations. Commissioning engineers can verify probe performance with a single gap voltage measurement against the published calibration curve, reducing commissioning time per channel from 30–60 minutes to under 5 minutes.

Quality Assurance & Global Logistics

Every unit of the Bently Nevada 330103-00-04-50-12-CN supplied by siemensplc.com is sourced through verified supply channels and subjected to a structured pre-shipment inspection protocol. Visual inspection covers label authenticity, connector pin condition, cable jacket integrity, and probe tip surface condition. Electrical verification includes coil impedance measurement against the published nominal value (typically 8–12 Ω for the 5 mm probe coil at 25°C) and connector contact resistance check. Units that do not meet acceptance criteria are quarantined and not dispatched.

Packaging follows anti-static and mechanical protection standards: the probe tip is protected by a machined plastic cap, the connector is covered with a dust plug, and the assembly is wrapped in anti-static foam within a rigid outer carton. This packaging configuration is designed to survive the mechanical shock and vibration levels of international air freight without probe tip damage or connector deformation.

Shipments originate from Xiamen, China, with same-day or next-business-day dispatch for in-stock units. Primary carriers are DHL Express, FedEx International Priority, and UPS Worldwide Express, with typical transit times of 2–4 business days to major industrial hubs in Europe, Southeast Asia, the Middle East, and the Americas. Full export documentation — commercial invoice, packing list, and certificate of origin — is provided with every shipment to facilitate customs clearance. For orders requiring ATEX or IECEx certification documentation, original manufacturer certificates are provided where available in our inventory records.

A 12-month warranty covers manufacturing defects and performance deviations from published specifications under normal operating conditions. Warranty claims are processed with a target response time of 2 business days from receipt of the defective unit.
