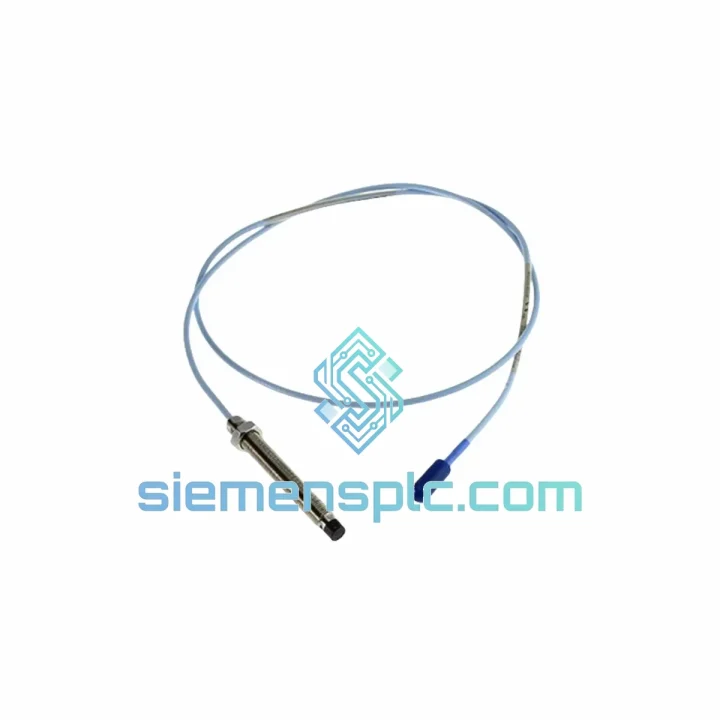

Bently Nevada 330103-00-07-05-02-05 Proximity Probe – 3300 XL Series

Bently Nevada 330103-00-07-05-02-05: Non-Contact Shaft Displacement Measurement in API 670-Grade Machinery Protection

The Bently Nevada 330103-00-07-05-02-05 is an 8 mm eddy-current proximity probe from the 3300 XL Series — a platform that defines the measurement baseline for shaft radial vibration, axial thrust position, and differential expansion monitoring in rotating machinery protection systems. This probe is designed for continuous, uninterrupted service in steam turbines, gas turbines, centrifugal compressors, integrally geared expanders, and large motor-driven pumps where API 670 (5th Edition) compliance is a contractual or regulatory requirement.

The operating principle is electromagnetic induction: the probe coil, driven by a high-frequency oscillator inside the paired Proximitor driver, generates an alternating magnetic field at the probe tip. When a conductive target — typically an AISI 4140 steel shaft journal — enters this field, eddy currents are induced on the target surface. These currents oppose the primary field, reducing the effective inductance of the probe coil. The Proximitor converts this inductance change into a calibrated DC voltage output at a nominal scale factor of 7.87 V/mm (200 mV/mil). The output is a continuous, real-time analog signal: no sampling interval, no protocol stack, no firmware execution path between the physical gap and the monitor input terminal.

The 8 mm tip diameter of the 330103-00-07-05-02-05 is selected for bearing journal zones where the available target area is constrained by shaft geometry or probe bracket envelope. The linear measurement range of 0 to 2 mm (0 to 80 mil) covers the full displacement excursion expected in most API 670 radial vibration and thrust position applications. The probe body is machined from 316L stainless steel; the tip housing is molded from PEEK (polyether ether ketone), a semi-crystalline thermoplastic with a continuous service temperature of 250°C and resistance to hydrocarbon lubricants, seal gas condensates, and process fluid splash. The integral coaxial cable terminates in a 3300 XL-compatible connector, maintaining the system’s characteristic impedance without field-improvised adapters that introduce impedance discontinuities and signal reflections.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Resonant Tank Circuit Architecture: The probe coil and the distributed capacitance of the integral coaxial cable form a parallel LC resonant circuit. The Proximitor driver sustains oscillation in this tank at a fixed frequency determined by the system design. Target proximity damps the oscillation amplitude by extracting energy through eddy-current losses in the conductive shaft surface. The Proximitor’s demodulator stage rectifies and filters this amplitude-modulated carrier to produce the DC output voltage. Because the entire signal chain from coil to output terminal is analog and continuous, the probe introduces no quantization error, no conversion latency, and no firmware-dependent behavior — the output tracks shaft position changes at rates limited only by the Proximitor’s analog filter bandwidth (DC to 10 kHz, –3 dB).

EMC Shielding Topology: The coaxial cable construction provides a continuous Faraday shield around the signal conductor from probe tip to Proximitor input. The shield is grounded at the Proximitor end only — a single-point grounding scheme that prevents circulating ground-loop currents from appearing as common-mode noise on the output. In installations adjacent to high-power variable-frequency drives (VFDs), large synchronous motors, or bus-duct power distribution, this topology maintains signal integrity without supplementary filtering. The shield’s transfer impedance is sufficiently low to attenuate radiated interference from 50 Hz power harmonics through the RF range without degrading the probe’s DC to 10 kHz measurement bandwidth.

Thermal Dimensional Stability: PEEK has a coefficient of thermal expansion (CTE) of approximately 47–54 µm/m·°C — substantially lower than nylon, PTFE, or most thermoset polymers used in competing probe designs. Over the 212°C operating temperature span (–35°C to +177°C), the maximum dimensional change of the PEEK tip face is less than 25 µm, which corresponds to a thermally induced gap error of less than 0.2 mV at the nominal scale factor. In steam turbine casings where casing temperature rises from ambient to 150°C+ during startup, this dimensional stability prevents the probe from generating a false displacement trend that would be indistinguishable from actual shaft thermal growth without a separate differential expansion measurement.

Skin Depth and Target Material Sensitivity: Eddy-current penetration depth (skin depth δ) follows the relation δ = (πfμσ)^(–0.5), where f is excitation frequency, μ is target permeability, and σ is target conductivity. For AISI 4140 steel at the 3300 XL excitation frequency, the skin depth is confined to the near-surface layer of the shaft journal. This means that surface finish — specified by API 670 §6.2.3 as Ra ≤ 0.8 µm (32 µin) — is the dominant surface variable affecting measurement accuracy, not subsurface metallurgical variation. For non-standard target materials (austenitic stainless steels, titanium alloys, Inconel, or aluminum), the scale factor deviates from the nominal 7.87 V/mm and a material correction factor must be applied using Bently Nevada’s published target material correction curves.

Loop Length and Impedance Matching: The total probe loop — integral cable plus extension cable — must remain within the maximum length specified for the paired Proximitor model. Excess cable length increases distributed capacitance, shifts the tank circuit resonant frequency downward, and compresses the linear range at the far end of the measurement span. The 330103-00-07-05-02-05 with its 5 m integral cable is rated for use with extension cables up to 5 m (total loop: 10 m) in standard 3300 XL Proximitor configurations. Installations requiring longer cable runs must use a Proximitor model rated for the extended loop length, with the probe’s integral cable length factored into the total loop calculation.

System Integration Benefits

• Factory API 670 Calibration — No Field Adjustment Required: The 330103-00-07-05-02-05 is calibrated at the factory to meet API 670 (5th Edition) linearity and scale factor tolerance (±1%) for AISI 4140 targets. Commissioning consists of setting the probe gap to the nominal 1.27 mm (50 mil) center-of-range position and verifying the –10 VDC output — no iterative calibration procedure is required.
• Dimensional Interchangeability with Installed 3300 XL Fleet: Thread form, body diameter, tip geometry, cable length, and connector type are identical across the 3300 XL probe family. A failed probe is replaced without modifying the probe bracket, re-routing cables, or adjusting monitor alarm and trip setpoints — the replacement probe inherits the calibration of the failed unit.
• Deterministic Analog Output for Sub-Millisecond Event Capture: The DC voltage output reaches the monitor input with no A/D conversion delay, no network transmission latency, and no firmware scheduling jitter. Bently Nevada 3500 Series monitors process this signal with hardware response times below 1 ms, ensuring that transient mechanical events — blade rubs, sudden bearing failures, or rotor instability onset — are captured within the monitor’s protection response window.
• Native Compatibility with 3500/40M and 3500/42M Monitor Modules: When connected through a 3300 XL Proximitor, the probe output is processed by the 3500 monitor’s DSP to compute overall vibration (0-pk and pk-pk), gap DC voltage, and synchronous vector components (1X and 2X amplitude and phase) — all within a single monitor channel, without external signal conditioning hardware.
• System 1 Software Integration for Advanced Rotor Dynamics: The analog output feeds directly into Bently Nevada System 1 condition monitoring software, enabling shaft centerline plots, orbit diagrams, Bode plots, polar plots, and cascade spectra. These diagnostic tools allow machinery engineers to distinguish between unbalance, misalignment, oil whirl, oil whip, and rub — failure modes that produce overlapping vibration amplitude signatures but distinct phase and frequency characteristics.
• X–Y Orbit Measurement with Matched Probe Pairs: Two 330103-00-07-05-02-05 probes mounted at 90° on the same bearing journal generate the shaft orbit waveform — a Lissajous figure of X-axis displacement versus Y-axis displacement. The orbit shape encodes rotor dynamic behavior with a specificity that single-axis vibration amplitude cannot provide. API 670 mandates this X–Y configuration for all critical machinery bearing journals.
• 2oo3 Voting Architecture Compatibility for SIS Applications: In safety-instrumented systems requiring two-out-of-three (2oo3) voting logic, three probes per measurement plane provide single-probe fault tolerance without spurious trip. The ±1% scale factor consistency across units of the same part number simplifies the voting threshold calibration and reduces the probability of common-cause calibration error.
• IP67 Ingress Protection Eliminates Moisture-Induced False Alarms: The probe’s IP67 rating prevents water and process fluid ingress into the coil assembly and connector. Moisture in the coil housing increases the effective dielectric constant of the coil former, shifting the tank circuit resonant frequency and producing a slow, temperature-correlated drift in the output voltage that mimics a real shaft position change. IP67 construction eliminates this failure mode in wet environments including wet gas compressors, seawater cooling pump stations, and outdoor installations subject to condensation cycling.

Quality Assurance & Global Logistics

Each Bently Nevada 330103-00-07-05-02-05 unit stocked at our Xiamen, China facility passes a structured incoming inspection before it is classified as serviceable inventory. The inspection protocol covers three stages: (1) physical examination of the probe body, tip face, integral cable jacket, and connector for mechanical damage, contamination, or connector pin deformation; (2) coil DC resistance measurement to confirm winding continuity and detect shorted turns; and (3) a functional gap-voltage verification using a calibrated gap simulation fixture, confirming that the output voltage at the nominal 1.27 mm gap falls within the ±1% tolerance band of –10.0 VDC. Units that do not pass all three stages are quarantined and not offered for sale.

Serviceable units are stored in individual anti-static, humidity-controlled packaging. The coaxial connector is capped to prevent contact surface oxidation. Storage conditions are maintained at 15–25°C with relative humidity below 60% RH, consistent with Bently Nevada’s long-term storage recommendations. Lot traceability records — including part number, date of inspection, and inspector identification — are maintained for each unit and are available upon request.

Shipments are dispatched from Xiamen via DHL Express, FedEx International Priority, and UCP air freight. Standard transit times are 3–5 business days to Europe and North America and 2–4 business days to Southeast Asia, the Middle East, and Australia. For shutdown-critical requirements, same-day dispatch is available for orders confirmed before 14:00 CST. All shipments are fully insured, door-to-door tracked, and accompanied by a commercial invoice, packing list, and certificate of origin prepared in compliance with destination country import regulations. Calibration certificates and material traceability documentation are available upon request — specify your documentation package in the RFQ.

The 12-month warranty covers manufacturing defects and performance deviations from the published specification. Warranty claims are handled with a replacement-first policy: a replacement unit is dispatched upon receipt of the defective probe, minimizing equipment downtime. Buffer stock of the 330103-00-07-05-02-05 and complementary 3300 XL system components is maintained to support both scheduled maintenance programs and unplanned outage requirements.
